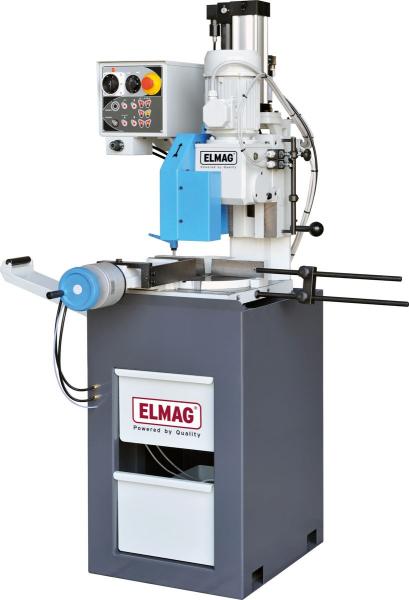

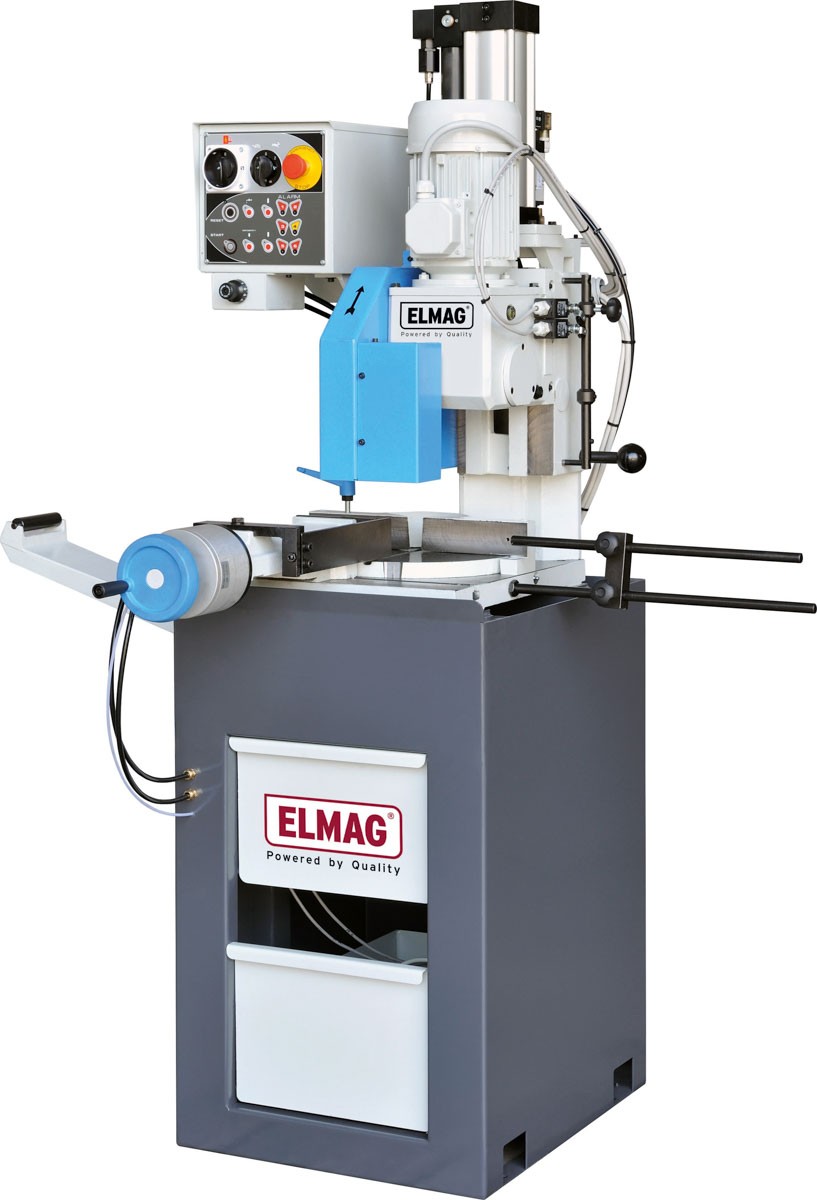

ELMAG VS 370 HL metal circular sawing machine

VS models
Modern, semi-automatic vertical circular saws with pneumatic or hydraulic quick clamping vice, automatic feed and cutting pressure control. Semi-automatic cutting cycle with high throughput.

> Cutting depth adjustable with knobs
> Quick angle adjustment: pivoting gear head with angle scale and locks
> Clamping on both sides - Quick clamping vice with anti-burr workpiece holder
> Powerful: high-performance motor with two speed levels for hard/soft materials
> Smooth running and long service life: Quality gear unit with oil bath for permanent lubrication
> Feed can be optimized at any time: with infinitely variable cutting pressure control
> Optimum saw blade guidance: cooling system with electric pump, metering valve and return filter
> Chip scraper for saw blade cleaning
> Highest repeat accuracy: bar stop with adjustable material stop
> Safe: Saw blade protection/protective grid, emergency stop, zero voltage release, CE-compliant

Semi-automatic cutting cycle
- Cycle start from operating panel
- Fix material / clamp closed
- Saw blade drive on
- Lowering the gear head / cutting
- Saw blade drive off
- Lifting / resetting the gear head
- Release workpiece / open clamp

- VS metal circular sawing machine
- H-Auto H Hydraulics semi-automatic
- Chip scraper Saw blade cleaning
- Material support with two rollers
- Bar stop with material stop
- GKS Gear head swivels
- Angle scale and angle locks
- Vertical stroke/cutting depth adjustable
- SSS quick clamping vice
- Antiburr workpiece holder
- SSP quick release hydraulically
- High performance drive/oil bath gearbox
- Central control panel
- SDS cutting pressure control
- Cooling system with electric pump
- Protective grille fixed
- Emergency stop/zero voltage release
- Sheet steel base and chip tray
- Tools/operating instructions/CE
