ELMAG vibratory plate reversible

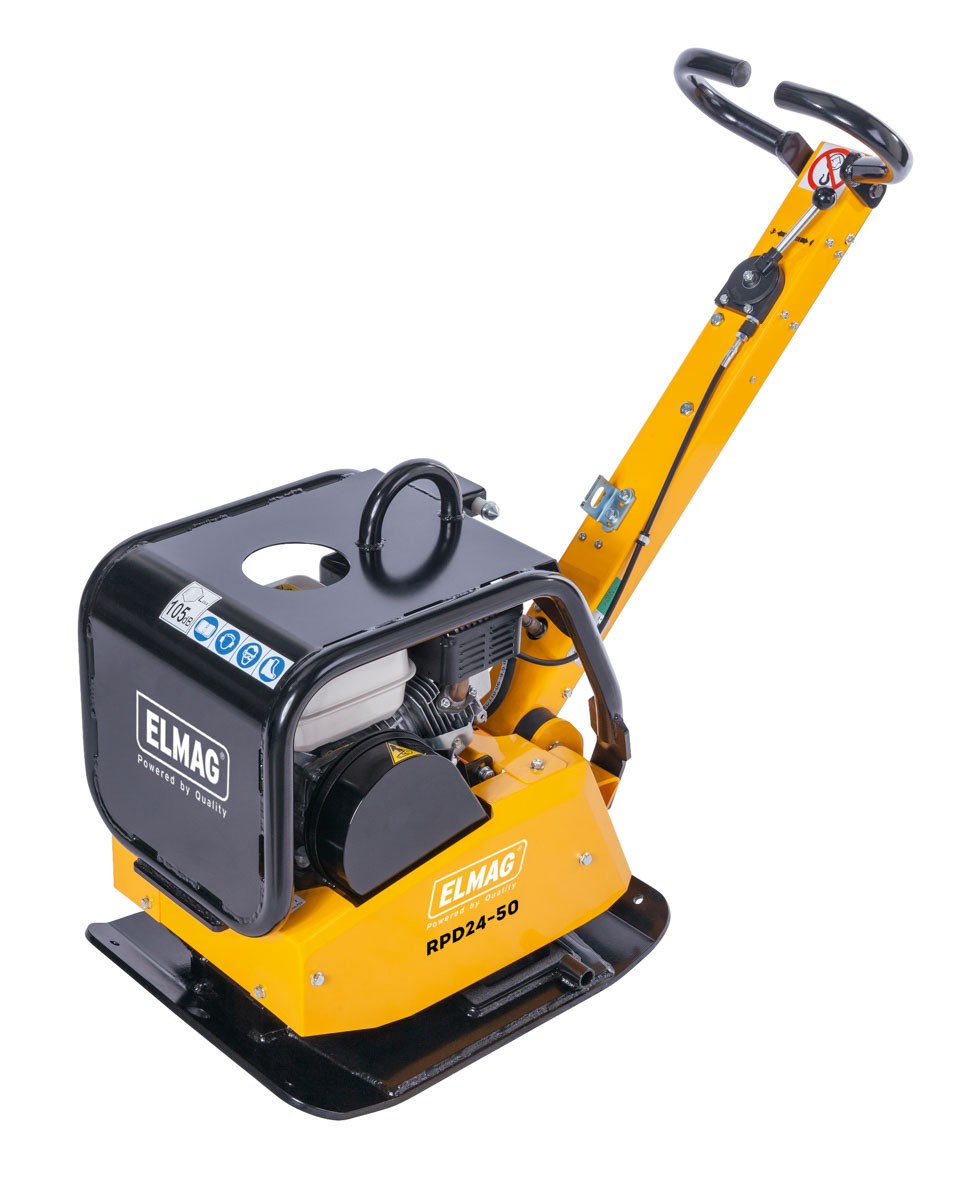

ELMAG reversible vibratory plate RPD24-50 with Hatz- Diesel 1B20, 24 kN centrifugal force, with steel protective frame
Product highlights ELMAG vibratory plate reversible
Vibratory plates, reversible
With stepless hydraulic changeover between forwards and reverse as standard. This allows large areas to be compacted with powerful machines. Vibratory plates with very high compaction performance in a wide range of versions to suit customer requirements. On all models, the machine is protected against damage by a high-quality steel protective frame. Incl. transport hook.
Special accessories
- Rubber mat incl. holder
- Wheel set
With stepless hydraulic changeover between forwards and reverse as standard. This allows large areas to be compacted with powerful machines. Vibratory plates with very high compaction performance in a wide range of versions to suit customer requirements. On all models, the machine is protected against damage by a high-quality steel protective frame. Incl. transport hook.
Special accessories
- Rubber mat incl. holder
- Wheel set
Technical facts ELMAG vibratory plate reversible
- Infinitely hydraulically adjustable forward and reverse travel
- Self-tensioning clutch system for reduced V-belt wear
- Crack and break-resistant base plate made of hardened steel
- Guide bar can be locked in vertical position during transport or storage
- New protective cage offers reliable protection for the motor and the device
- Extra strong rubber bearings installed
- Easy-to-mount transport wheels
Technical data ELMAG vibratory plate reversible
| Centrifugal force | 24 kN |
| Max. Maximum speed | 20 m/min |
| Surface compaction | 600 m²/h |
| Motor type | 1B20 |
| Performance | 3.3 kW |
| Plate size | 500x680 mm |
| Working width | 500 mm |
| Vibration frequency | 92 Hz |
| Weight | 164 kg |
