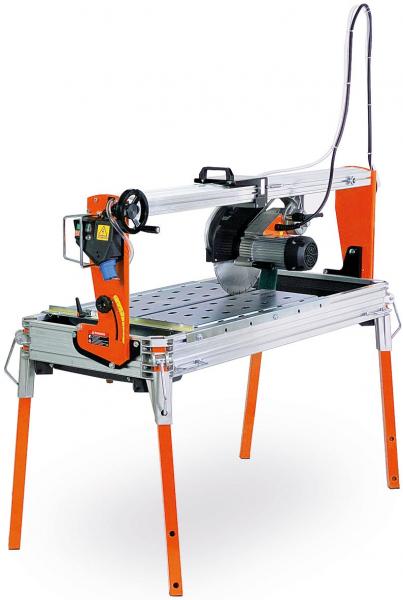

ELMAG SUPREME 85 SET block cutting machine

Product Highlights ELMAG SUPREME 85 SET block cutting machine

PRODUCT DESCRIPTION
The newly developed ELMAG SUPREME bridge saws for professional and semi-professional use meet the highest demands on equipment, ergonomics and precision.

As transportable construction site equipment with a powerful 2.2 kW drive motor, SUPREME products cut granite and marble slabs, bricks, natural stones and concrete blocks with ease up to cutting depths of 85 mm (135 mm in reverse cutting).
OUR RECOMMENDATION:
For very hard tile and porcelain stoneware formats, use the newly developed PREMIUM-LINE diamond disc for porcelain stoneware.

OPTIONALLY AVAILABLE:
- Machine with laser cutting indicator
- 2-wheel set complete for easy transport
- Additional table for large slab & tile formats
- Longitudinal stop for a firm hold over the entire cutting length
- Handwheel feed
- Motor 2.2 kW 400 V

Technical facts ELMAG SUPREME 85 SET block cutting machine​

• Including segmented diamond disc for universal use

Technical data ELMAG SUPREME 85 SET block cutting machine​

• cutting capacity depth/length: 85 / 850 mm

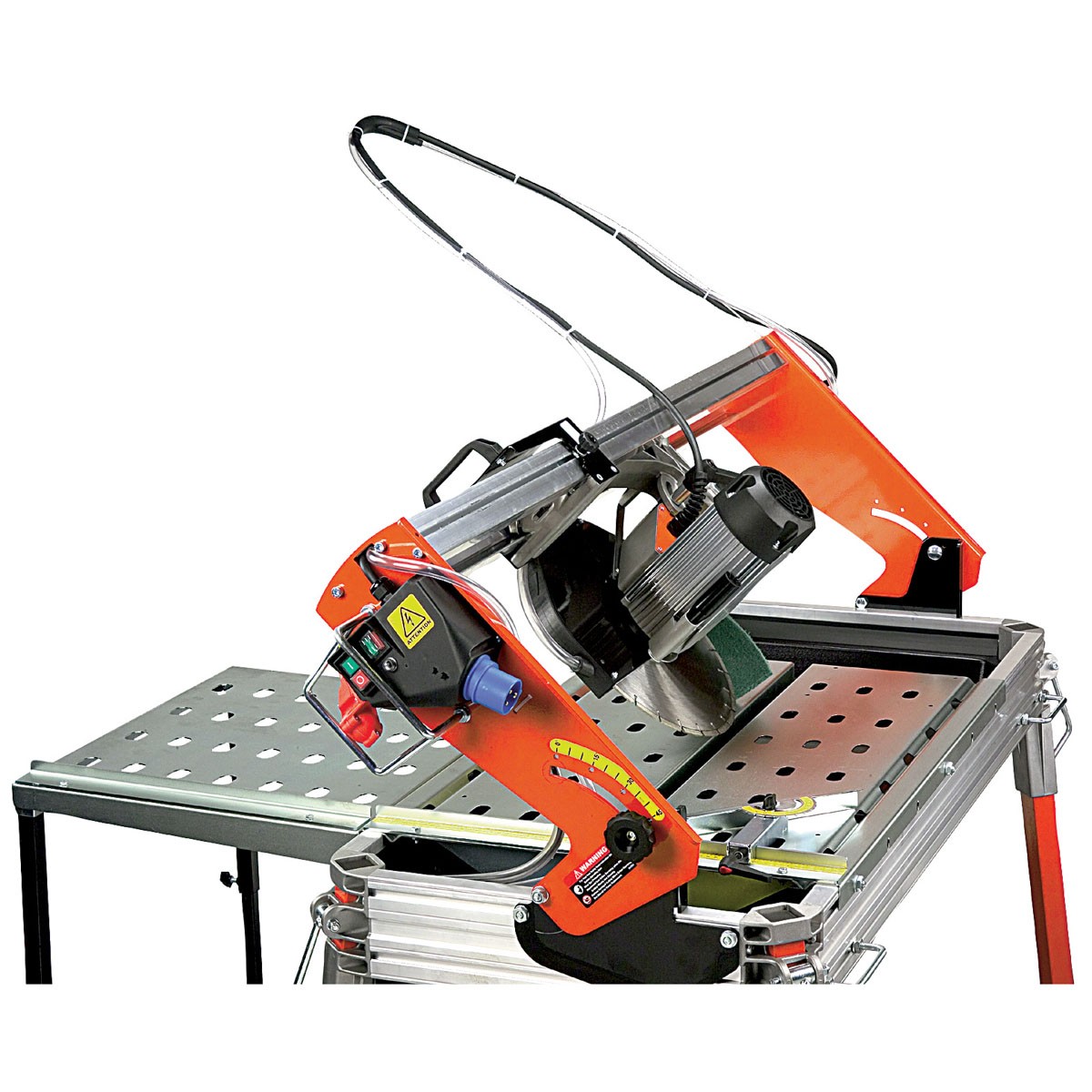

• Angle: 0 - 45 °
• Diamond saw blade Ø: 300 mm
• Diamond saw blades Drill hole: 25.4 mm

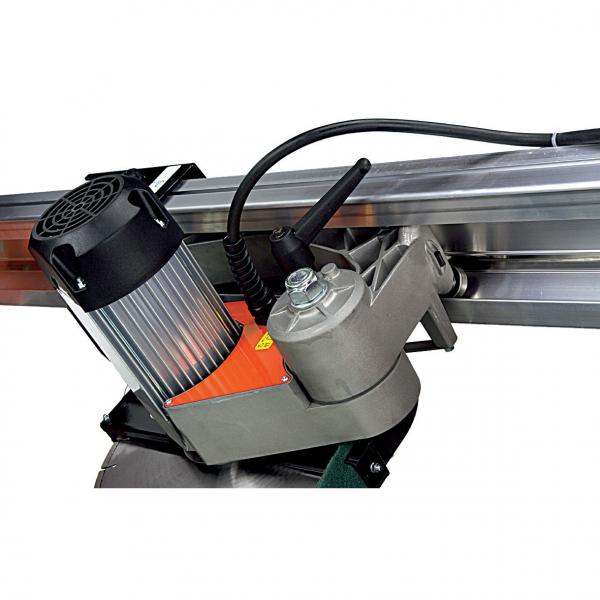

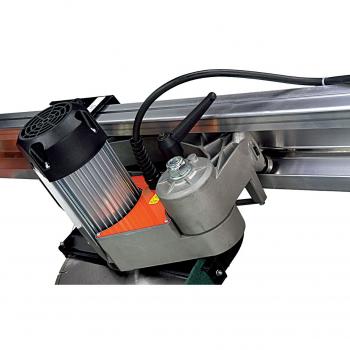

• Nominal power: 2.2 kW
• Voltage/frequency: 230/50 V/Hz
• Dimensions: 158x77x135 cm
• Weight: 80 kg

Highest quality of ELMAG machines
Benefit from a 2-year warranty from ELMAG
Accessories for ELMAG machines on request
