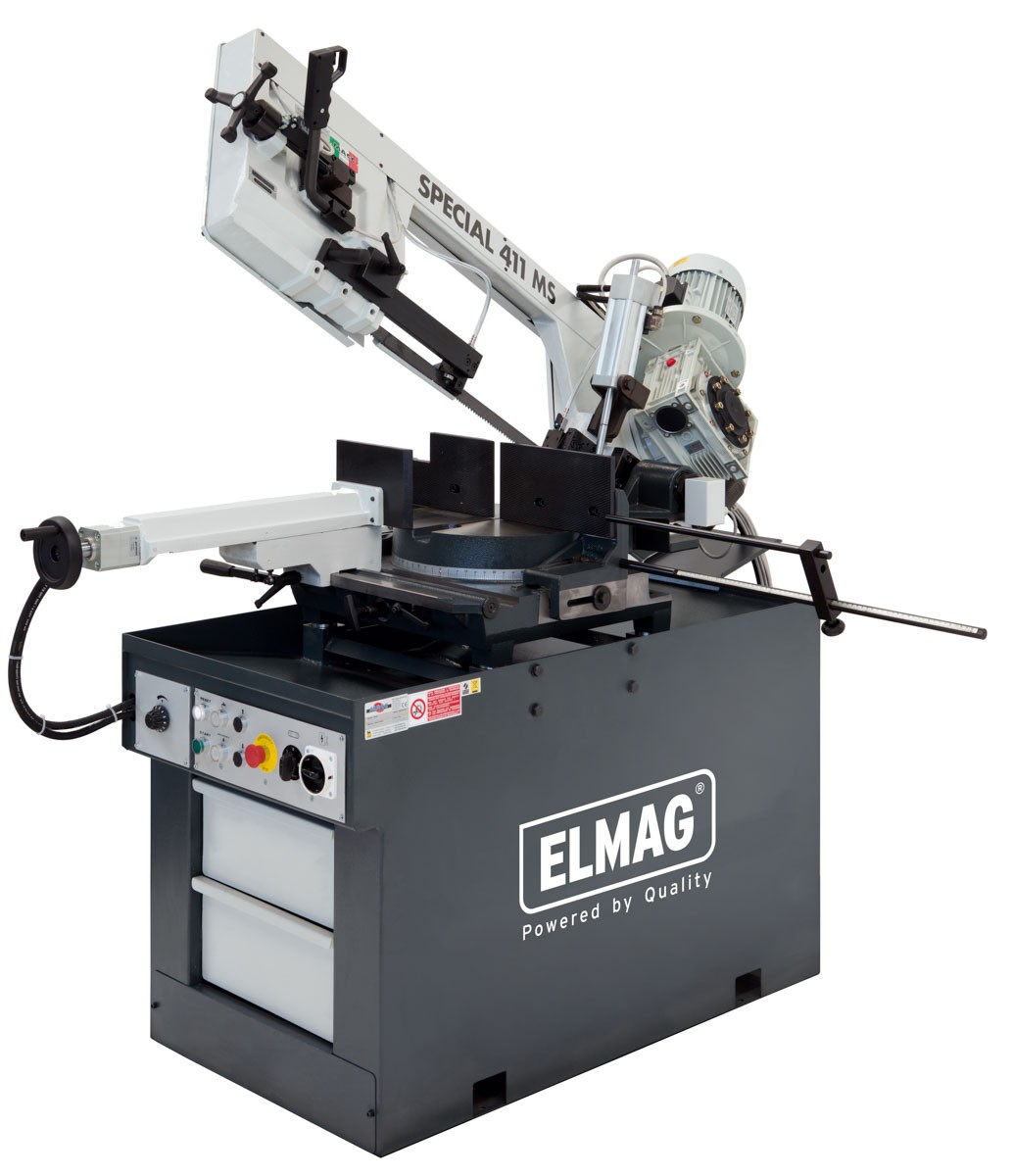

Product Highlights ELMAG SPECIAL 411 M/S MACC Metal Band Sawing Machine
Very Special - excellent technique
CSO and M/S mitre bandsaws convince by high product quality and very good performance values. A few keywords illustrate their class: Ideal drive and saw wheel dimensions, compact gear with oil bath for permanent lubrication, torsionally rigid saw frame with taper roller bearings, precisely adjustable saw band guide, high safety by monitoring the saw band tension ...
Sizes and cutting quality
CSO and M/S models offer a cutting range of 300x170 mm and 400x200 mm respectively and have two cutting speeds, 35/71 m/min and 38/77 m/min. A cutting speed controller for 20-90 m/min is available as an optional accessory. CSO models are equipped with a continuously adjustable automatic lowering device to adjust the saw frame feed (lowering speed). M/S models are equipped with a continuously adjustable cutting pressure control to optimize throughput and cutting quality.
Standard equipment ELMAG SPECIAL 411 M/S MACC metal band saw machine
- CSO or M/S model
- H-Auto H Semi-automatic hydraulic
- Hydraulic power unit with oil filling
- SDS cutting pressure control with regulator
- SSH hydraulic quick clamping system
- SSS quick clamping vice
- Bar stop with material stop
- WSS Angle quick release
- Angle Scale
- Compact gear unit with oil filling
- Central operating or control panel
- membrane keys, operation/warning indicators
- ERGO operating lever / On/Off
- Cooling system with electric pump
- Saw blade wheels with precision bearings
- Saw blade tracking
- Saw band clamp
- SBÜ Saw blade monitoring Limit switch
- Saw blade guide adjustable at the front
- Tensioning bearing front/rear adjustable
- Chip scraper and chip brush
- Grip protection
- Saw blade guard with limit switch
- AutoOFF automatic switch-off
- Emergency stop / zero voltage release
- Saw frame with taper roller bearings
- Sheet steel base with chip tray
- Band saw blade bimetal cobalt
- Tools/operating instructions/CE
Typical applications ELMAG SPECIAL 411 M/S MACC metal band saw machine
- Metal construction
- Mechanical Engineering
- Apparatus engineering
- Plant engineering
- Pipeline construction
- Boiler construction
- Container construction
- Installers
- Car workshops
- Body shop
- Metalworking shops
- Forging
- Plumbing
- Insulation companies
- Building construction
- Civil engineering
Technical facts ELMAG SPECIAL 411 M/S MACC metal band saw machine
- Cutting sizes up to 200x400 mm.
- Cutting of right and left hand mitres - Vise clamping left or right of the cut
- Quick mitre adjustment 45-0-60° - with quick release skewer WSS and easy to read angle scale
- High torque - very powerful saw blade drive 900/1.600 W
- cutting speeds 38/77 m/min
Technical Data ELMAG SPECIAL 411 M/S MACC Metal Band Sawing Machine
- cutting range max.: 200x400mm
- saw blade length: 3200mm
- saw band height: 27mm
- Vise opening max.: 0-400mm
- Cutting angle: 45-0-60
- Speed steps: 2
- cutting speed: 1: min 38 / 2: max 77m/min
- Saw blade drive Motor power: 1: 900 / 2: 1600W
- Coolant pump Engine power: 60W
- Power supply: 400 / 50-60V/Hz
- infeed height: 950mm
- Length: 1975mm
- width: 1320mm
- height: 2005mm
- weight: 575kg
Highest quality of ELMAG machines
Benefit from a 2 year ELMAG warranty
Accessories for ELMAG machines on request
