PROFIMIGplus standard features
- Original BINZEL hose package MB EVO 25 / 4 m
- Ground cable with welding cable plug / ground terminal
- Pressure regulator with 2 pressure gauges Ø 60 mm
- Feed rollers wire diameter 0.6 / 0.8mm
- Feed rollers wire diameter 1.0 / 1.2mm
- Wire coil adapter 5 kg / 200 mm
- Wire coil adapter 15 kg / 300 mm
- Release spray for welding nozzles
- Operating instructions / CE
Optional extras
- Mixed gas 82% Ar / 18% CO2, 20 lt. filled
- Steel welding wire SG2 (G3 Si 1) 1.0 mm / 15 kg
Materials:
- Steel
- CrNi
- Aluminium
Possible applications:
- Mechanical engineering
- Steel construction
- Metalworking shops
- Forging
- Agriculture
Technical facts ELMAG Shielding gas welding system PROFI-MIG 3000 plus / MIG 304

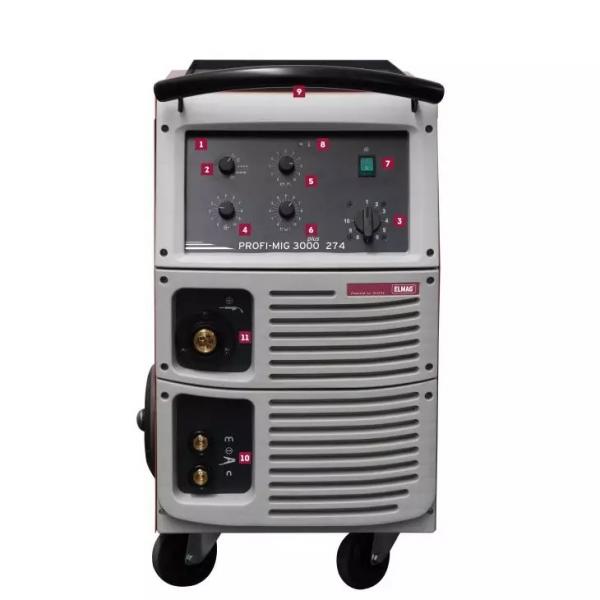

PROFI-MIGplus - Overview:
1. Ergonomic control panel, angled arrangement
2. Operating mode switch: 2-stroke welding mode for tack welding work, 4-stroke welding mode for long welding sections, Spot welding mode selection, Interval welding mode, selection, Wire feed without gas consumption
3. Step switch
4. Wire feed regulator, stepless
5. Automatic spot welding, stepless
6. Automatic interval welding, stepless
7. Main switch with operating lamp
8. Temperature control lamp - overload protection incl. automatic reset, thermal sensor integrated in transformer winding
9. Tool tray with anti-slip coating
10. Dimensions of fine/coarse bushing Ø 13 mm, 35/50 mm² for throttling
11. EURO-Norm hose package connection for BINZEL

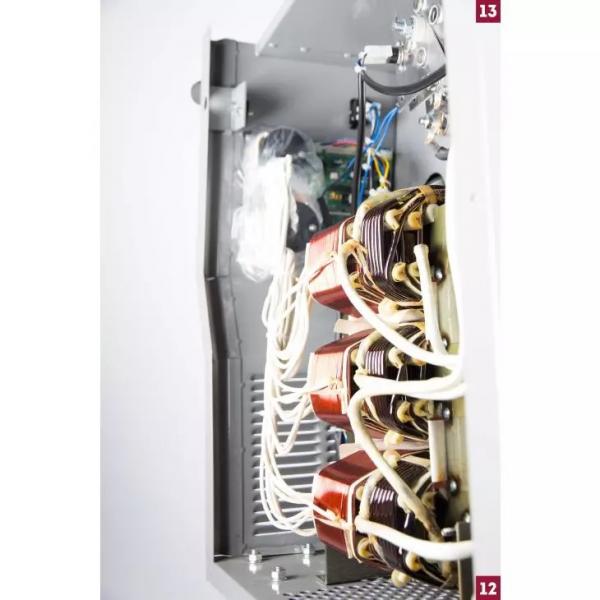

12. High-performance transformer with first-class, rear fan copper winding, winding materials insulation class H (180°C)
13. Optimal size silicon plate rectifier for highest welding current quality
14. Wire feed gear drive, four rollers
15. Powerful cooling fans, thermal overload protection
