ELMAG SEDSSR 20WDE-AVR-DSE4520 - Stage 3A generator with KUBOTA motor V2203M (super sound insulated, rental version)
ELMAG SEDSSR 20WDE-AVR-DSE4520 - Stage 3A generator with KUBOTA motor V2203M (super sound insulated, rental version)
Product Highlights ELMAG SEDSSR 20WDE-AVR-DSE4520 - Stage 3A generator with KUBOTA motor V2203M (super sound insulated, rental version)
POWER GENERATOR SEDSSR 11 TO 250 KVA - MOBILE POWER
SEDSSR - ideal for construction sites, events, rental! The extremely comprehensive standard equipment makes these ELMAG® generators a flexible companion for countless applications.
Even the basic equipment leaves almost nothing to be desired. The extremely robust design thanks to the galvanised base frame with integrated sump tray, oversized tanks and integrated collision protection defies even the toughest construction site conditions.
Standard equipment ELMAG SEDSSR 20WDE-AVR-DSE4520 - Stage 3A generator with KUBOTA motor V2203M (super sound insulated, rental version)
- Equipment: 2x 230 V Schuko 16A, 1x 230 V CEE 16A-3p, 1x 230 V CEE 32A-3p, 1x 400 V CEE 16A-5p, 1x 400 V CEE 32A-5p and 1x 400 direct outlet
- 12V electric start
- Shut down: emergency stop, magneto stop, low oil pressure, over temperature, low coolant level, low fuel level, overload, short circuit and FI 30mA-30A reg (fixed value - not adjustable).
- Generator type: MECC ALTE ECP3-2SN/2
- AVR regulation
- Protection class IP 23
- LS2 Tropicalised
- DSE4520
- Electronic speed control
- Voltmeter + changeover switch
- 3-ampere meter
- Frequency measurement device
- Hour meter
- Fuel gauge
- Switchboard lighting
- Earth spike
- Galvanised base frame with collision protection
- Large tank inside with sump tray
- Lifting device for fork lift trucks
- Transport safety
- Document holder
- Diesel pump
- Oil drain pump
- Water separator
- Sound insulation SS
- Lifting eye
Technical facts ELMAG SEDSSR 20WDE-AVR-DSE4520 - Stage 3A generator with KUBOTA motor V2203M (super sound insulated, rental version)
- Motors standard according to Stage 3A
- Robust Zincor housing (galvanised) - powder-coated
- Large lockable maintenance doors
- Synchronous generator and AVR control as standard
- Galvanised base frame with all-round 20 mm collision protection

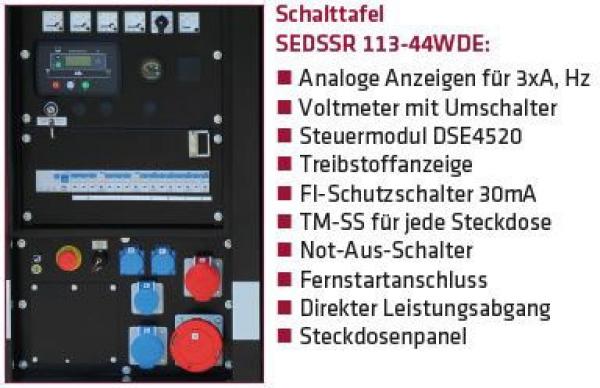

- Operating panel with DSE4520 digital control module and additional analogue instruments for load (A), voltage with changeover switch (3-phase), frequency and remote start connection
- Extensive panel of sockets
- Direct power output
- Large internal series tanks with sump tray
- Lockable control panel door
- Forklift pockets and lifting eye
Technical data ELMAG SEDSSR 20WDE-AVR-DSE4520 - Stage 3A generator with KUBOTA motor V2203M (super sound insulated, rental version)
voltage - frequency
400/230 Volt - 50 Hz
Maximum power 3~400V
20 kVA
Continuous power 3~400V
19 kVA
Maximum power 1~230V
6,8 kVA
Continuous power 1~230V
6,2 kVA
Consumption at 75% load
2,5 l/h
Running time per tank filling at 75% load
35,5 h
Dimensions LxWxH
185x91x137 cm
Weight (without fuel)
825 kg
Sound power according to RL 2000/14/EG, 2005/88/EG
87 LWA
Sound pressure level in 7m
62 dB(A)
Highest quality of ELMAG machines
Benefit from a 2-year guarantee from ELMAG
Accessories for ELMAG machines on request
