Product highlights ELMAG SEDSS 7000WDE-ASS complete emergency power package
EMERGENCY POWER SYSTEMS WITH DIESEL ENGINE - COMPLETE PACKAGES

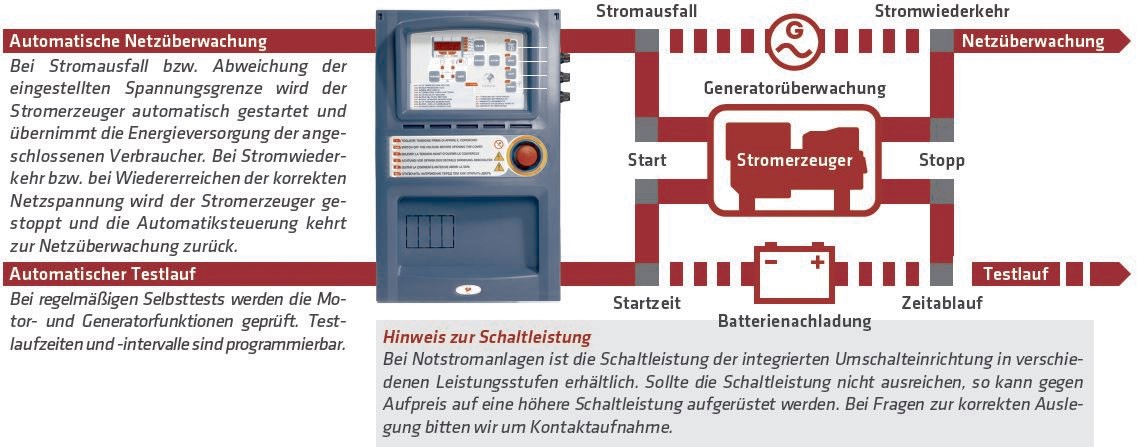

With an emergency power system from ELMAG® you are on the safe side. It starts automatically in case of a power failure, takes over the energy supply of the connected consumers and stops when the power returns. The automatic start-stop module AT 206 ensures that the emergency power system is always ready for operation by means of an integrated self-test function and the trickle charge module for the starter battery.
Automatic emergency power systems comply with modern safety guidelines and protect users and operators of technical systems from the consequences of a power failure. Emergency power systems are therefore recommended for safeguarding lighting and lift systems in buildings and places of assembly accessible to the public. These include railway stations and airports, restaurants and service stations, community and town halls, high-rise buildings and hotels, kindergartens, hospitals and schools, cinemas, museums and theatres, swimming pools and stadiums, underground stations etc.
The systems are also becoming increasingly popular in the private sector. Which household can manage without electricity these days? Heating, water supply or cooling appliances, even in the private sector, a reliable emergency power supply is essential.

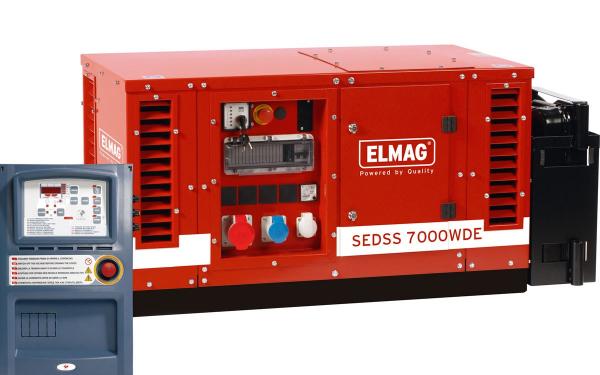

SEDSS 7000WDE-ASS
Universal power generator with super sound insulation. Ideal for fail-safe operation of private and commercial systems.
Standard equipment ELMAG SEDSS 7000WDE-ASS complete emergency power package
- Electric start
- Battery
- Switch-off: magneto stop, low oil, overtemperature, overload and short circuit
- Synchronous generator
- AVR regulation
- Protection class IP 23
- AT 206
- Voltmeter
- Ammeter
- Hertzmeter
- Hour meter
- Emergency stop
- Trickle charging
- Swap tank
- Fuel pump man.
- Sound insulation SS
Technical data ELMAG SEDSS 7000WDE-ASS complete emergency power package
voltage - frequency
400/230 Volt - 50 Hz
Maximum power 3~400V
7 kVA
Continuous power 3~400V
6,5 kVA
Power 3~400V cont.
9,4 A
Maximum power 1~230V
2,3 kVA
Continuous power 1~230V
2,3 kVA
Power 1~230V cont.
10 A
Fuel type
Diesel
Speed
3000 rpm
Cooling
air-cooled
Motortype
Hatz 1B40
Emission standard
-
Engine power
6,2 kW
Cubic capacity
462 cm³
Cylinders
1
Tank capacity
20 l
Consumption at 75% load
1,9 l/h
Running time per tank filling at 75% load
10,5 h
Dimensions LxWxH
127x64x62 cm
Weight (without fuel)
200 kg
Sound power according to RL 2000/14/EG, 2005/88/EG
91 LWA
Sound pressure level in 7m
66 dB(A)
Switching capacity of the automatic changeover
25 A
Highest quality of ELMAG machines
Benefit from a 2-year guarantee from ELMAG
Accessories for ELMAG machines on request
