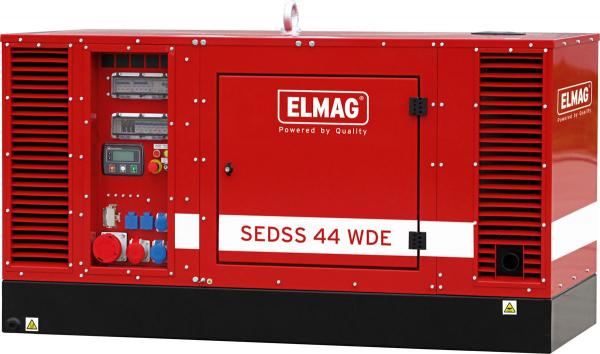

ELMAG SEDSS 44WDE-AVR-DSE4520 - Stage 3A generator with KUBOTA motor V3800DIT (super sound insulated)
Product Highlights ELMAG SEDSS 44WDE-AVR-DSE4520 - Stage 3A generator with KUBOTA motor V3800DIT (super sound insulated)
SERIES SEDSS 230 VOLT WATER-COOLED - CONTROLLED SLOW RUNNING
SEDSS generators with slow-running diesel engines offer the highest power quality, extra long running times, maximum technical safety and a long service life. They are excellently suited for maintaining the function of process and life-support systems. Perfectly suited as emergency power systems.
All SEDSS models are equipped with an AVR control system and enable trouble-free operation of voltage-sensitive computer, control, telecommunications and energy storage systems. Individual models come with electronic speed control for maximum speed and frequency stability.
-
SEDSS 44WDE
Central supplier for large systems, protection of important procedures and processes, long running time, stationary and mobile, top equipment with DSE4520 control system.

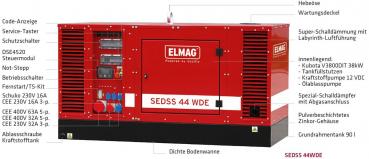

Standard equipment ELMAG SEDSS 44WDE-AVR-DSE4520 - Stage 3A generator with KUBOTA motor V3800DIT (super sound insulated)
- connections: 2x 230 V Schuko 16A, 1x 230 V CEE 16A-3p, 1x 230 V CEE 32A-3p, 1x 400 V CEE 32A-5p and 1x 400 V CEE 63A-5p
- Electric start
- Battery
- Shutdown: magneto stop, emergency stop, low oil pressure, overtemperature, overload, short circuit, FI 30 mA and earth spike
- Synchronous generator
- AVR regulation
- Protection class IP 23
- DSE4520
- Speed controller
- Tank level sensor
- Tight base tray
- Diesel pump 12 V
- Connection preparation for TS-Kit
- Remote start connection
- Oil drain pump
- Water separator
- Sound insulation SS
- Lifting eye
- Electric start
- Battery
- Shutdown: magneto stop, emergency stop, low oil pressure, overtemperature, overload, short circuit, FI 30 mA and earth spike
- Synchronous generator
- AVR regulation
- Protection class IP 23
- DSE4520
- Speed controller
- Tank level sensor
- Tight base tray
- Diesel pump 12 V
- Connection preparation for TS-Kit
- Remote start connection
- Oil drain pump
- Water separator
- Sound insulation SS
- Lifting eye
Technical facts ELMAG SEDSS 44WDE-AVR-DSE4520 - Stage 3A generator with KUBOTA motor V3800DIT (super sound insulated)
- Extra powerful - original Kubota four-stroke diesel engine with water cooling
- Space-saving - large fuel tank in the base frame
- Synchronous generator with AVR control, voltage difference max. ±1%.
- Easy handling - electric start system with maintenance-free starter battery
- Magneto-Stop system for automatic start-stop
- Thermal-magnetic circuit breaker with switch-off on overload/short circuit
- Automatic switch-off in case of overtemperature and low oil pressure
- Residual current circuit breaker and ground spike

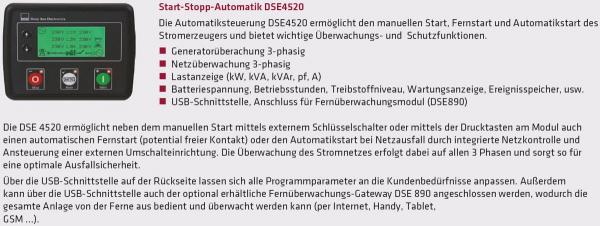

- Top models with DSE 4520 control module for automatic operation
Technical data ELMAG SEDSS 44WDE-AVR-DSE4520 - Stage 3A generator with KUBOTA motor V3800DIT (super sound insulated)
voltage - frequency
400/230 Volt - 50 Hz
Maximum power 3~400V
44 kVA
Continuous power 3~400V
40 kVA
Power 3~400V cont.
58 A
Maximum power 1~230V
15,4 kVA
Continuous power 1~230V
14,0 kVA
Power 1~230V cont.
61 A
Fuel type
Diesel
Speed
1500 rpm
Cooling
water-cooled
Motortype
Kubota V3800DIT
Emission standard
3A
Engine power
42 kW
Cubic capacity
3769 cm³
Cylinders
4
Tank capacity
90 l
Consumption at 75% load
6 l/h
Running time per tank filling at 75% load
15 h
Dimensions LxWxH
210x94x112 cm
Weight (without fuel)
925 kg
Sound power according to RL 2000/14/EG, 2005/88/EG
90 LWA
Sound pressure level in 7m
65 dB(A)
