Product highlights ELMAG SEDSS 20WDE-ASS complete emergency power package
EMERGENCY POWER SYSTEMS WITH DIESEL ENGINE - COMPLETE PACKAGES

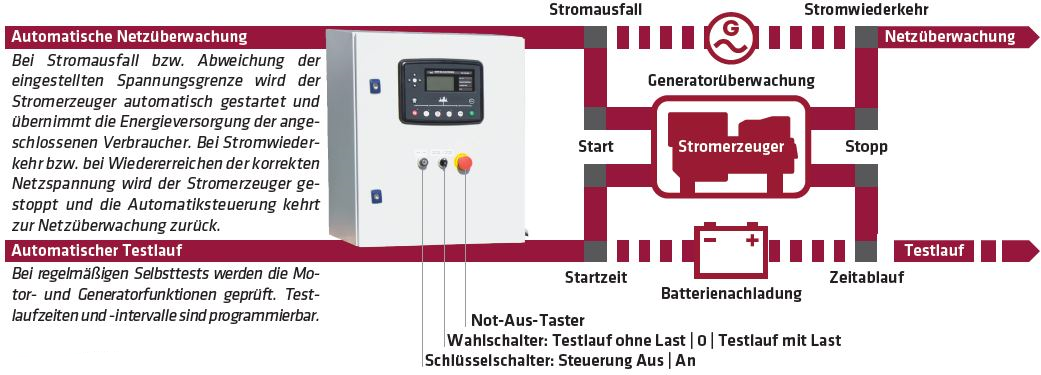

Automatic emergency power systems protect users and operators of technical systems from the effects of a power failure. The DSE 7320 automatic start-stop module monitors the mains current on three phases, starts the power generator in the event of a power failure and ensures automatic power supply to the connected loads.
Diesel-powered emergency power generators are the right choice if frequent and intensive use of the power generator is to be expected. They run on inexpensive diesel fuel, have a particularly robust design and offer a long service life.
Models with 1500 rpm are particularly low-wear and have the longest service life and lowest noise level.
These models are also recommended for supplying power to computer, control and telecommunications equipment thanks to AVR regulation. Individual models are equipped with electronic speed control, which ensures maximum frequency stability and has ideal control behaviour under shock loads.

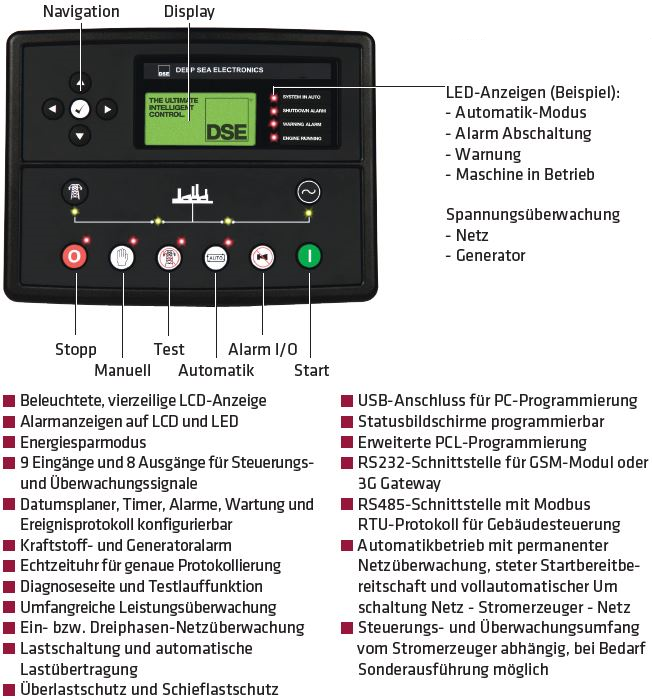

Complete packages with DSE 7320 control module offer 3 potential-free contacts (freely programmable) as standard for passing on status messages and can be easily equipped with optional remote monitoring.
Plug & Play - simplest installation!
SEDSS 20 WDE-ASS
Low-speed motor with particularly low noise level, with electronic speed regulator.
Standard equipment ELMAG SEDSS 20WDE-ASS complete emergency power package
- Electric start
- Battery
- Shutdown: Magneto-Stop, low oil pressure, overtemperature, overload and short circuit
- Synchronous generator
- AVR regulation
- Protection class IP 23
- DSE7320
- Electrical speed controller
- Voltmeter
- Ammeter
- Hertzmeter
- Hour meter
- Emergency stop
- Tank level sensor
- 3 potential-free contacts
- Trickle charging
- Tight base tray
- Basic frame tank
- Diesel pump 12 V
- Oil drain pump
- Sound insulation SS
Technical data ELMAG SEDSS 20WDE-ASS complete emergency power package
voltage - frequency
400/230 Volt - 50 Hz
Maximum power 3~400V
20 kVA
Continuous power 3~400V
19 kVA
Power 3~400V cont.
27 A
Maximum power 1~230V
6,8 kVA
Continuous power 1~230V
6,2 kVA
Power 1~230V cont.
29 A
Fuel type
Diesel
Speed
1500 rpm
Cooling
water-cooled
Motortype
Kubota V2203M
Emission standard
3A
Engine power
20 kW
Cubic capacity
2197 cm³
Cylinders
4
Tank capacity
80 l
Consumption at 75% load
3,7 l/h
Running time per tank filling at 75% load
21,6 h
Dimensions LxWxH
198x74x100 cm
Weight (without fuel)
660 kg
Sound power according to RL 2000/14/EG, 2005/88/EG
87 LWA
Sound pressure level in 7m
62 dB(A)
Switching capacity of the automatic changeover
60 A
Highest quality of ELMAG machines
Benefit from a 2-year guarantee from ELMAG
Accessories for ELMAG machines on request
