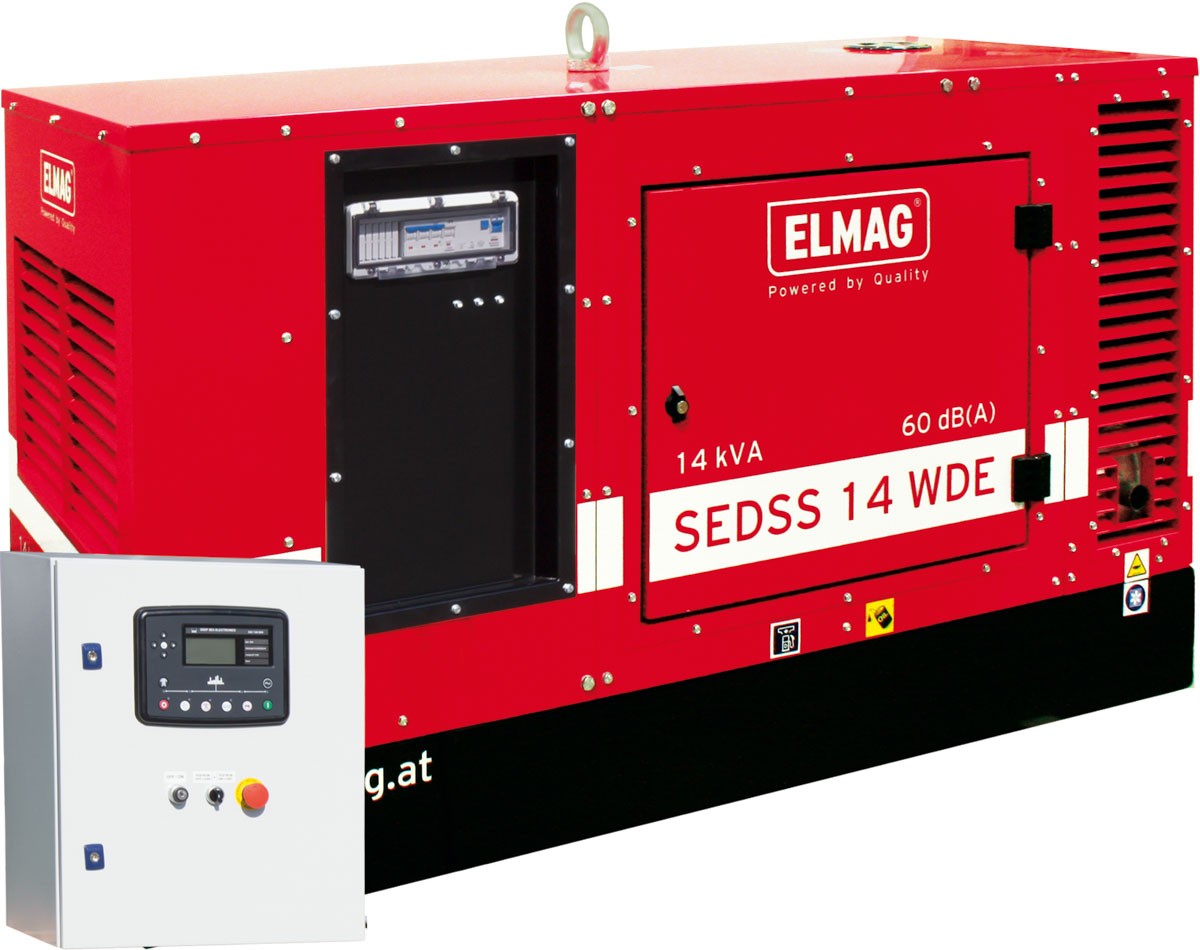

ELMAG SEDSS 14WDE-ASS complete emergency power package

Diesel generator with KUBOTA D1703 engine, (super-sound insulated) incl. automatic start-stop system in case of power failure with DSE 7320, completely ready for operation and connection, control panel and automatic mains switch-over with 40A switching capacity in external control cabinet for wall mounting, including 3m intermediate cable, DSE battery maintenance charger, 3 potential free contacts for remote signalling, sealed floor pan, reinforced fuel lines, tank level gauge with display on control panel (standard control panel on the unit is not required).

• EMERGENCY POWER SYSTEMS WITH DIESEL ENGINE - COMPLETE PACKAGES

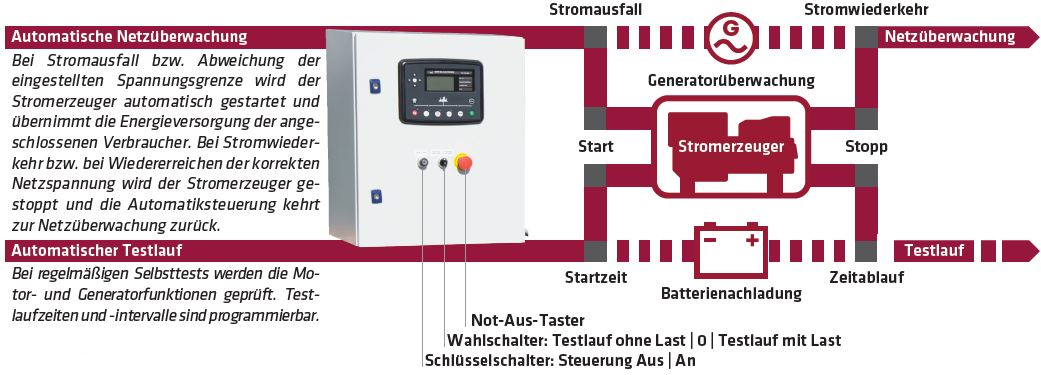

  Automatic emergency power systems protect users and operators of technical systems from the effects of a power failure. The DSE 7320 automatic start-stop module monitors the mains current on three phases, starts the power generator in the event of a power failure and ensures automatic power supply to the connected loads.

  Diesel-powered emergency power generators are the right choice if frequent and intensive use of the power generator is to be expected. They run on inexpensive diesel fuel, have a particularly robust design and offer a long service life.

  Models with 1500 rpm are particularly low-wear and have the longest service life and lowest noise level.

  These models are also recommended for supplying power to computer, control and telecommunications equipment thanks to AVR regulation. Individual models are equipped with electronic speed control, which ensures maximum frequency stability and has ideal control behaviour under shock loads.

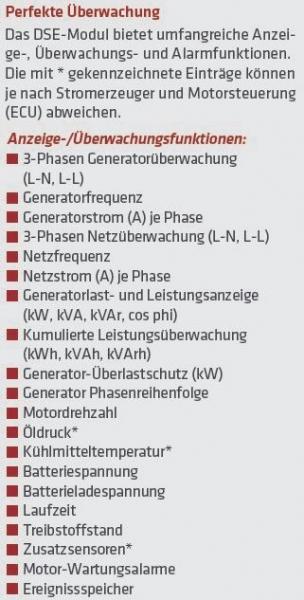

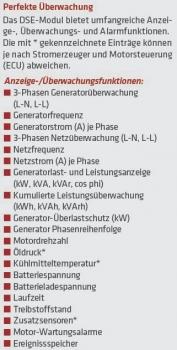

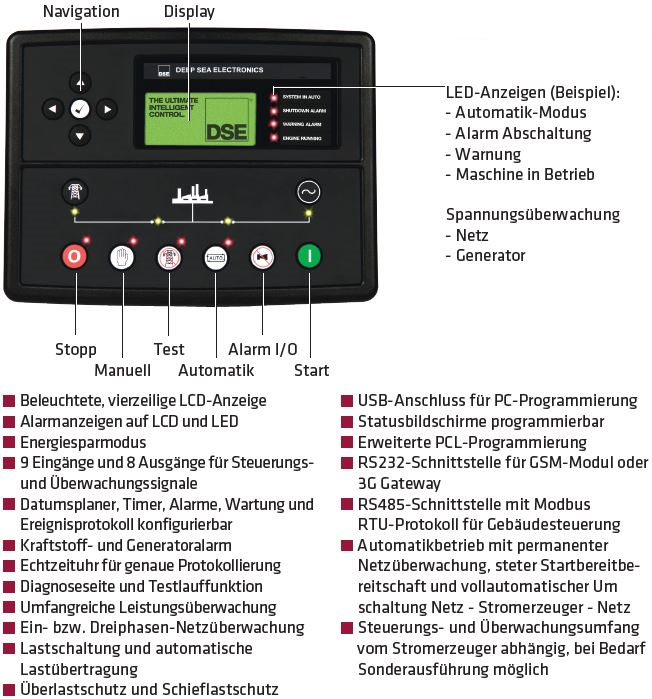

  Complete packages with DSE 7320 control module offer 3 potential-free contacts (freely programmable) as standard for passing on status messages and can be easily equipped with optional remote monitoring.

  Plug & Play - simplest installation!

• SEDSS 14 WDE-ASS

  Low-speed motor with particularly low noise level, with electronic speed regulator.


Standard equipment ELMAG SEDSS 14WDE-ASS complete emergency power package​
