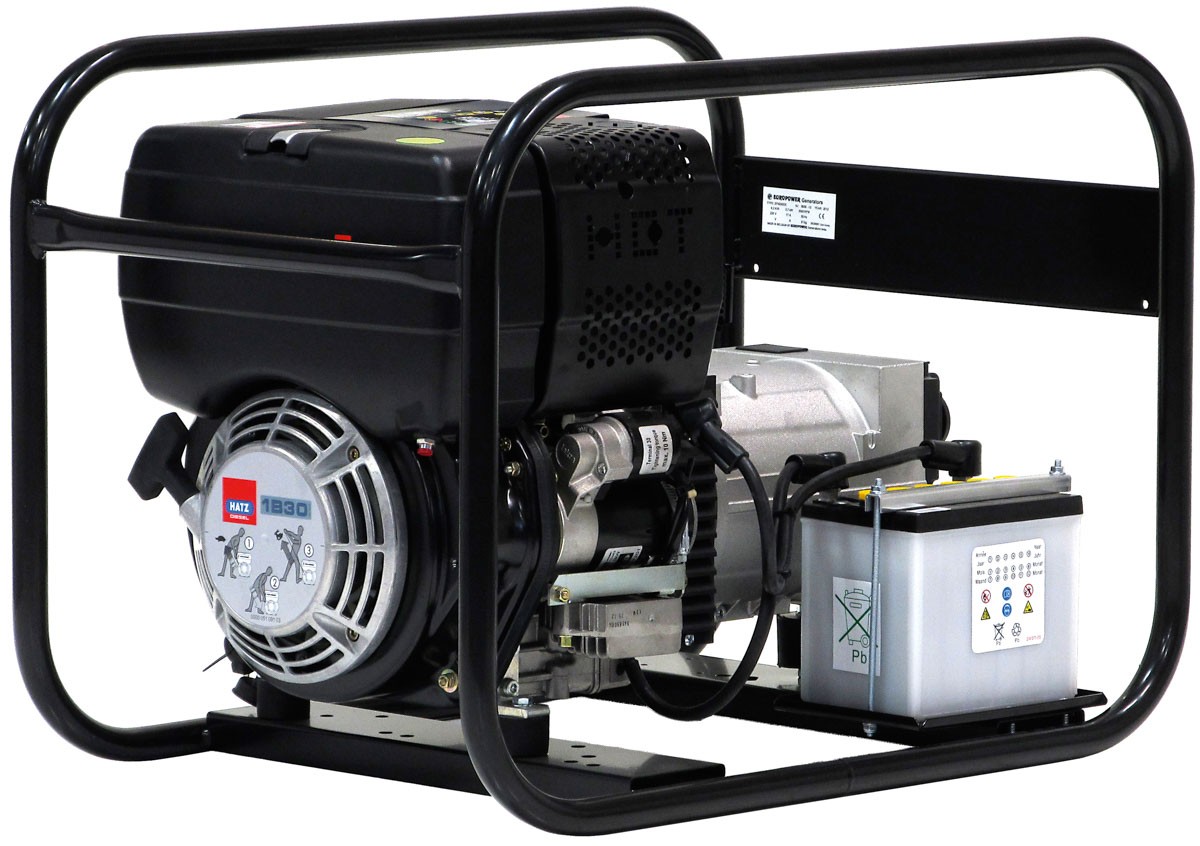

Product Highlights ELMAG SED 6000WE power generator with HATZ engine 1B40
SERIES SED 230 VOLT - DIESEL HIGH SPEED MOTORS FOR THREE PHASE & ALTERNATING CURRENT
Generators of the SED series - the entry into the diesel class. These robust frame-mounted units are a faithful companion for powering power tools and, if the worst comes to the worst, provide sufficient power for lighting, a water pump, a heater or serve as an emergency supply for your home.
SED W models have two 230 V Schuko sockets.
SED 6000 - POWER+MODELS
Middle class equipment for trade and service or for short-term supply of alpine huts, etc.
Standard equipment ELMAG SED 6000WE power generator with HATZ engine 1B40
- connections: 2x 230 Volt Schuko 16A
- Hand launch
- Electric start
- Battery
- Shutdown: Overload
- Synchronous generator
- Condenser control
- Protection class: IP 23
- Oil pressure lamp
Technical facts ELMAG SED 6000WE power generator with HATZ engine 1B40
Original Hatz four stroke diesel engine air-cooled
Synchronous generator with capacitor control
Electric start system with maintenance-free starter battery
Thermal circuit breaker with switch-off on overload
Optional equipment possible - ask us for special models!
1) Noise level does not comply with directives 2000/14/EC, 2005/88/EC
Technical data ELMAG SED 6000WE power generator with HATZ engine 1B40
voltage - frequency
230 Volt - 50 Hz
Maximum power 3~400V
- kVA
Continuous power 3~400V
- kVA
Power 3~400V cont.
- A
Maximum power 1~230V
6 kVA
Continuous power 1~230V
5,4 kVA
Power 1~230V cont.
23 A
Fuel type
Diesel
Speed
3000 rpm
Cooling
air-cooled
Engine type
Hatz 1B40
Engine power
7,1 kW
Cubic capacity
462 cm³
Cylinders
1
Tank capacity
5 l
Consumption at 75% load
1,9 l/h
Running time per tank filling at 75% load
2,6 h
Dimensions LxWxH
83x51x56 cm
Weight (without fuel)
110 kg
Sound pressure level in 7m
83¹ dB(A)
Highest quality of ELMAG machines
Benefit from a 2-year guarantee from ELMAG
Accessories for ELMAG machines on request
