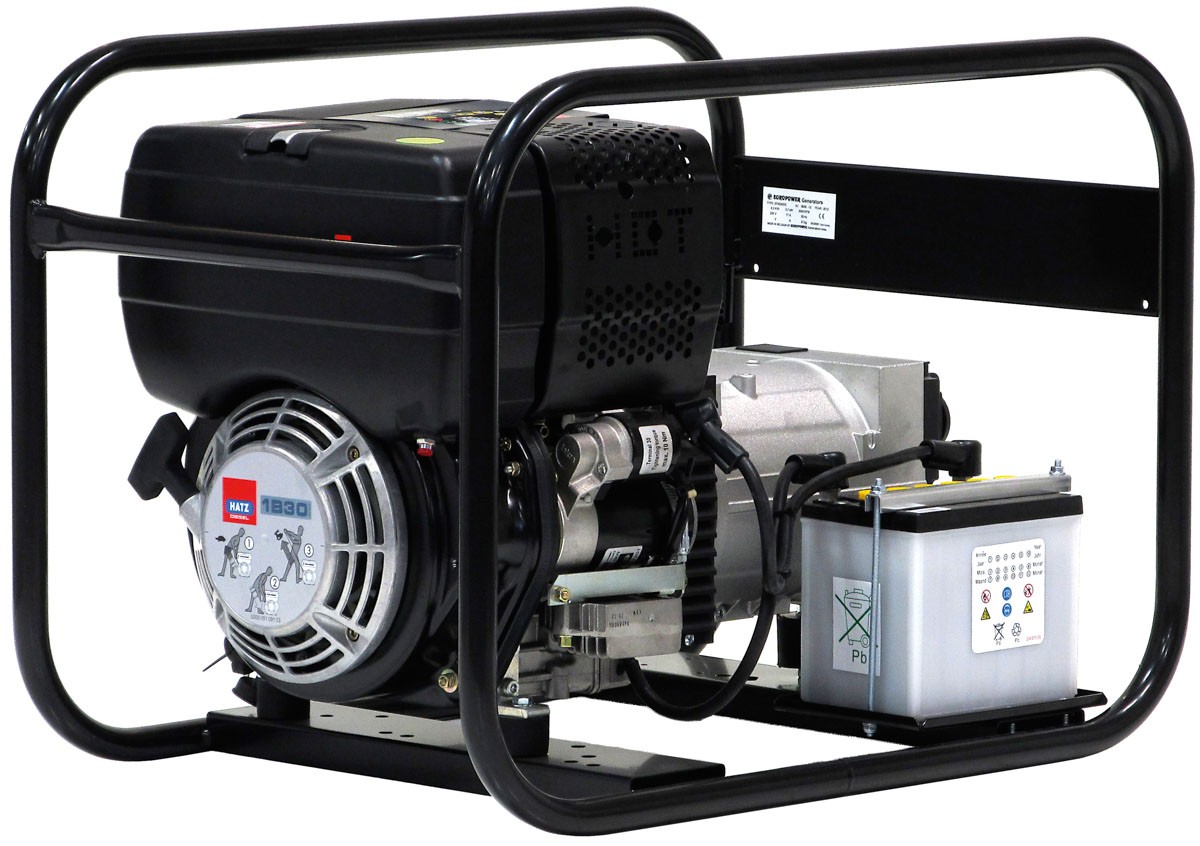

Product Highlights ELMAG SED 3000WE with HATZ engine 1B20 Power generator
SERIES SED 230 VOLT - DIESEL HIGH SPEED MOTORS FOR THREE PHASE & ALTERNATING CURRENT
Generators of the SED series - the entry into the diesel class. These robust frame-mounted units are a faithful companion for powering power tools and, if the worst comes to the worst, provide sufficient power for lighting, a water pump, a heater or serve as an emergency supply for your home.
SED W models have two 230 V Schuko sockets.
SED 3000 - ECONOMICAL DIESEL ENGINE
Light 230 volt device for operating garden tools, a water pump, a heater fan, emergency lighting etc.
Standard equipment ELMAG SED 3000WE with HATZ engine 1B20 Power generator
- connections: 230 Volt Schuko 16A
- Hand launch
- Electric start
- Battery
- Shutdown: Overload
- Synchronous generator
- Condenser control
- Protection class IP 23
- Oil pressure lamp
Technical facts ELMAG SED 3000WE with HATZ engine 1B20 Power generator
Original Hatz four stroke diesel engine air-cooled
Synchronous generator with capacitor control
Manual start and electric start system with maintenance-free starter battery
Thermal circuit breaker with switch-off on overload
Optional equipment possible - ask us for special models!
1) Noise level does not comply with directives 2000/14/EC, 2005/88/EC
Technical data ELMAG SED 3000WE with HATZ engine 1B20 Power generator
voltage - frequency
230 Volt - 50 Hz
Maximum power 3~400V
- kVA
Continuous power 3~400V
- kVA
Power 3~400V cont.
- A
Maximum power 1~230V
2,8 kVA
Continuous power 1~230V
2,5 kVA
Power 1~230V cont.
11 A
Fuel type
Diesel
Speed
3000 rpm
Cooling
air-cooled
Engine type
Hatz 1B20
Engine power
3,1 kW
Cubic capacity
232 cm³
Cylinders
1
Tank capacity
3,2 l
Consumption at 75% load
0,7 l/h
Running time per tank filling at 75% load
4,6 h
Dimensions LxWxH
67x51x56 cm
Weight (without fuel)
72 kg
Sound pressure level in 7m
78¹ dB(A)
Highest quality of ELMAG machines
Benefit from a 2-year guarantee from ELMAG
Accessories for ELMAG machines on request
