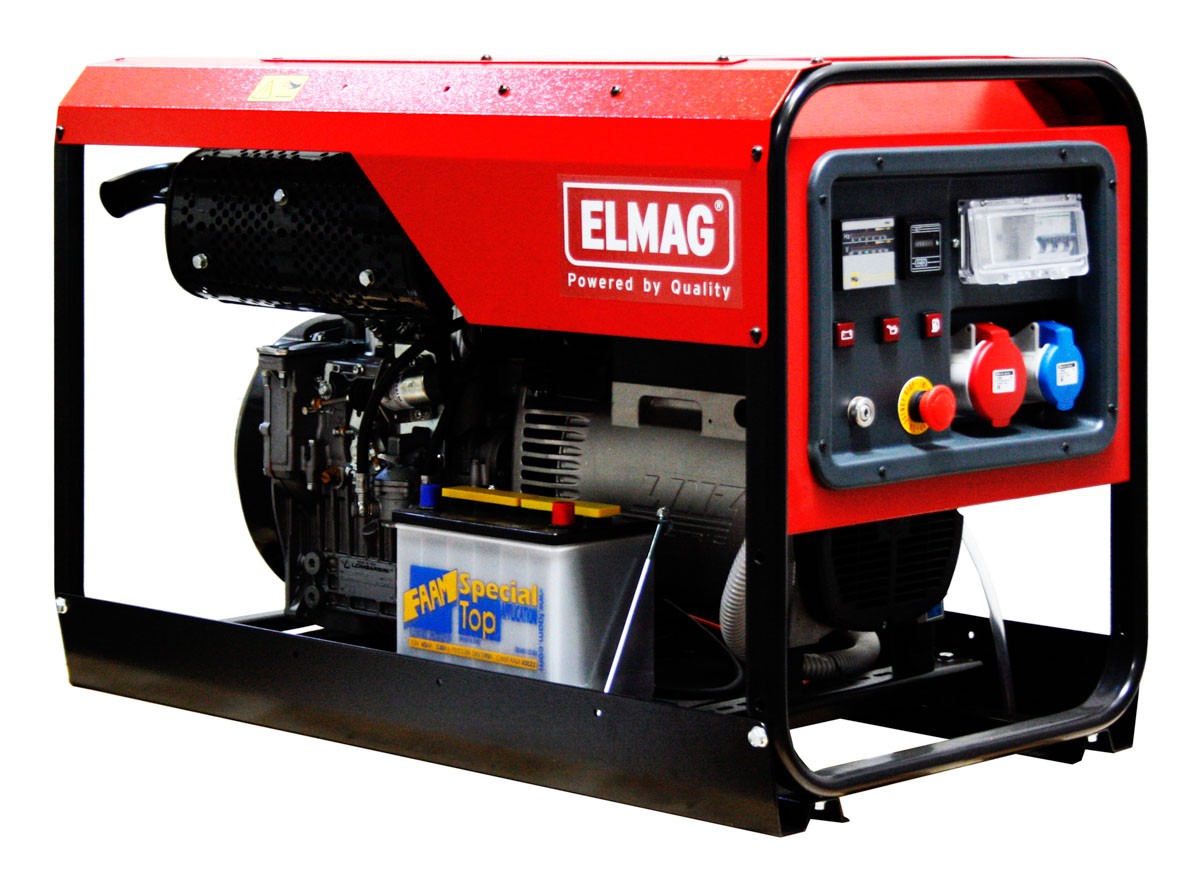

Product Highlights ELMAG SED 10000WDE-AVR power generator
SERIES SED 230 & 400 VOLT - DIESEL HIGH SPEED MOTORS FOR THREE PHASE & ALTERNATING CURRENT
Generators of the SED series - the entry into the diesel class. These robust frame-mounted units are a faithful companion for powering power tools and, if the worst comes to the worst, provide sufficient power for lighting, a water pump, a heater or serve as an emergency supply for your home.
SED WD models are equipped with an earthed socket and a 400 V CEE connection.
SED 10000WDE - SPECIAL CLASS
Modern, partially clad high-performance models for supplying building sites and for emergency power supply.
Standard equipment ELMAG SED 10000WDE-AVR power generator
- connections: 1x 230 V Schuko 16A and 1x 400 V CEE 32A-5p
- Electric start
- Battery
- Switch-off: emergency stop, overload and short circuit
- Synchronous generator
- AVR regulation
- Protection class: IP 23
- Voltmeter
- Hertzmeter
- Hour meter
- Fuel alarm
- Oil pressure lamp
Technical facts ELMAG SED 10000WDE-AVR power generator
Original Lombardini four-stroke diesel engine air-cooled
Synchronous generator with AVR control
Electric start system with maintenance-free starter battery
Thermal-magnetic safety circuit breaker with shutdown on overload and short circuit
Optional equipment possible - ask us for special models!
With extensive equipment, e.g. emergency stop, voltmeter, heart rate meter and hour meter
1) Sound level does not comply with Directives 2000/14/EC, 2005/88/EC
Technical data ELMAG SED 10000WDE-AVR power generator
voltage - frequency
400/230 Volt - 50 Hz
Maximum power 3~400V
10 kVA
Continuous power 3~400V
9.1 kVA
Power 3~400V cont.
11 A
Maximum power 1~230V
3.3 kVA
Continuous power 1~230V
2.6 kVA
Power 1~230V cont.
11 A
Fuel type
Diesel
Speed
3000 rpm
Cooling
air-cooled
Engine type
Lombardini 12LD477
Engine power
10 kW
Cubic capacity
851 cm³
Cylinders
2
Tank capacity
20 l
Consumption at 75% load
3 l/h
Running time per tank filling at 75% load
6.7 h
Dimensions LxWxH
100x55x67 cm
Weight (without fuel)
181 kg
Sound pressure level in 7m
85¹ dB(A)
Highest quality of ELMAG machines
Benefit from a 2-year guarantee from ELMAG
Accessories for ELMAG machines on request
