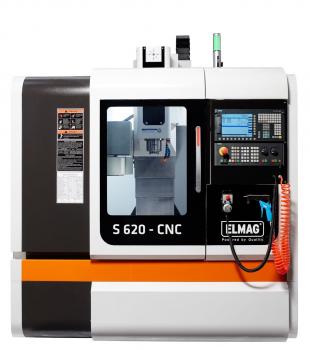

Product highlights ELMAG S650-CNC CNC machining centre 3-axis
SIEMENS SINUMERIK 808D ADVANCED
- Panel-based compact CNC control
- Up to 5 axes/spindle
- 7.5' colour display
- CNC owner memory up to 1 MB
- 4 interpolating axes
- 64 tool storage locations
HIGH QUALITY STANDARDS
The SINUMERIK 808D ADVANCED brings momentum to machining technology. CNC technology from the technology leader, coupled with a revolutionary operating concept, make the SINUMERIK 808D ADVANCED perfect for entering the CNC world! Thanks to a panel-based CNC design with few interfaces and an operating panel with protection class IP 65, the SINUMERIK 808 controls are perfectly prepared for use in harsh environments.
OPTIMIZED FOR SIMPLE MILLING APPLICATIONS
Thanks to technology-specific features, the SINUMERIK 808 controls are perfectly preconfigured for milling. With the innovative, integrated startGUIDE, the SINUMERIK 808 is the ideal partner for the modern CNC technician. In addition to CNC operation and programming, commissioning is also explained graphically and interactively.
OPTIONALLY AVAILABLE:
- Sinutrain desktop licenses for schools, apprenticeships and training centers
- Sinutrain classroom license (18 seats) available
- Programming manuals for turning and milling
- Training material for Shopmill and Shopturn
- Control SIEMENS 828D
- FANUC CNC System

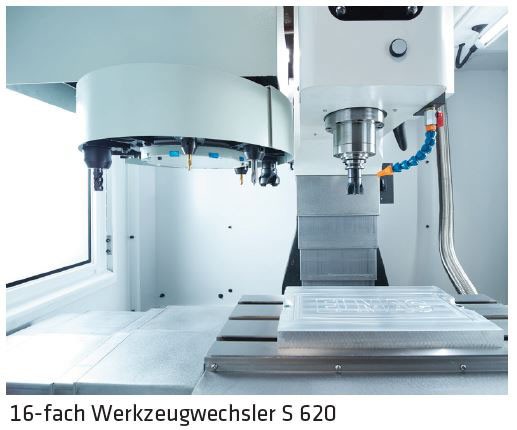

- 16-fold tool changer
- Chip conveyor
- 4th axis (A axis)
Technical facts ELMAG S650-CNC CNC machining centre 3-axis
- ELMAG CNC machining centres
- Stable cast iron frame in rigid bed construction with hardened and counter-coated flat guides
- Preloaded ball screws in all axes - driven by powerful servo motors for dynamic feed
- Mechanical weight compensation supports precise positioning of the Z-axis - wear of spindle and guide is minimized
- The stainless steel telescopic covers included in the Y-axis Protect guides and recirculating ball screws from chips and coolant
- The S400-CNC is equipped with an electronic handwheel for quick machine setup and manual traversing
- Incl. 10/16-fold tool changer, pneumatic tool clamping, LED work light, coolant system, automatic central lubrication, operating tool
- SIEMENS 808D, efficiency, easy handling and perfect performance are the features of this control
Technical data ELMAG S650-CNC CNC machining center 3 axes
- X-axis travel: 620mm
- Y-axis travel: 350mm
- Z-axis travel: 500mm
- table dimensions: 920 x 320mm
- quill distance table min./max.: 100 - 600
- Throat: 395mm
- Speed range: 60 - 6000 rpm
- spindle mount: BT 40
- rapid traverse X-axis: 18000mm/min
- rapid traverse Y-axis: 18000mm/min
- rapid traverse Z-axis: 18000mm/min
- Power supply: 400 / 50-60V/Hz
- Dimensions: 2020 x 1870 x 2170mm
- weight: 3250kg
Highest quality of ELMAG machines
Benefit from a 2 year ELMAG warranty
Accessories for ELMAG machines on request
