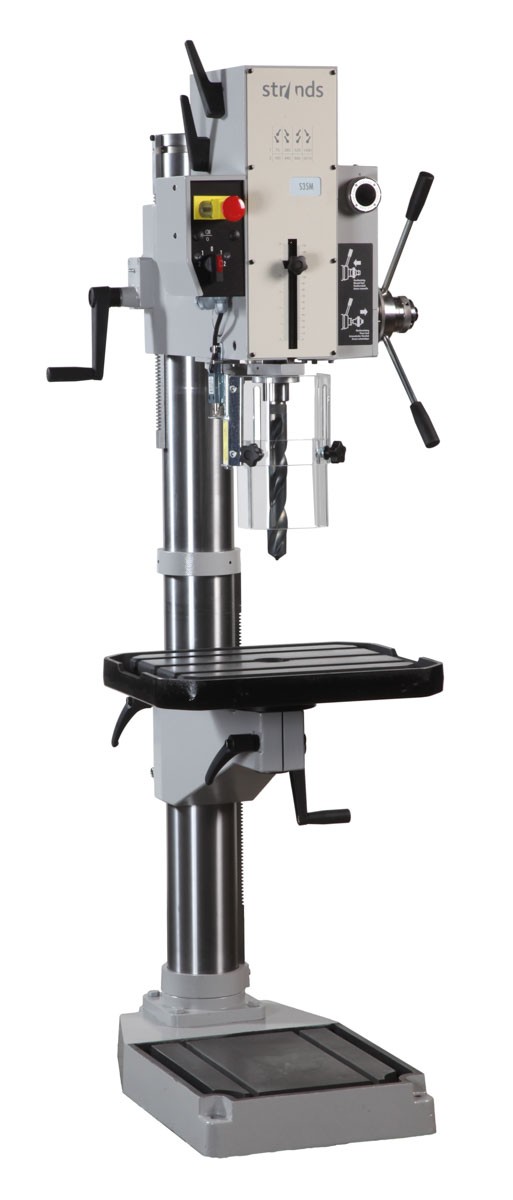

Product Highlights ELMAG S 35 M STRANDS gear box column drill
PREMIUM QUALITY MADE IN SWEDEN
The gearbox is built with traditional and tested technology for highest possible torque. Helical gears in combination with steel against reinforced fibre material give high efficiency, low noise level, long life and a nearly maintenance free gearbox.
Standard equipment ELMAG S 35 M STRANDS gear column drilling machine
Drill head: The drill head can be swivelled 360° around the column and is adjustable in height.
Spindle gear: Helical gears in combination of steel against reinforced fibre material give high efficiency, low noise level, long life and almost maintenance-free gear.
Feed gear: The feed gear is equipped with an automatic overload protection, which starts if the drilling pressure is too high. When the set drilling depth is reached, the spindle automatically returns to the starting position. The feed can also be interrupted manually.
Table: Stable, rotating table made of high-quality cast iron. The table is equipped with T-slots and a coolant channel. The stable table arm can be swivelled 360° around the column. The table can be adjusted to the desired working height with an easily accessible crank.
Drilling spindle: The drilling spindle ensures the optimal concentricity of the tool through its adjustable tapered rollers or ball bearings. The machine has an adjustable spindle return spring. Thus the return force can be adapted to the weight of the tool.
Technical facts ELMAG S 35 M STRANDS gear box column drill
- Highest durability
- Particularly quiet gearbox operation
- Automatic tool ejection
- clockwise/anticlockwise rotation as standard
- drill head can be swivelled 360° around the column and is height adjustable
- High-performance spindle made of tool steel for extreme loads
- High quality cast iron rectangular table with T-slots and oil channel
- Table arm is height adjustable and can be swivelled 360° around the column
- Hardened and ground drill column made of steel guarantees a permanent stability of the machine and a high precision and angular accuracy between drill and table
- M = Incl. automatic quill feed
- Automatic feed (M): When the pre-set drilling depth is reached, the spindle returns to its initial position.

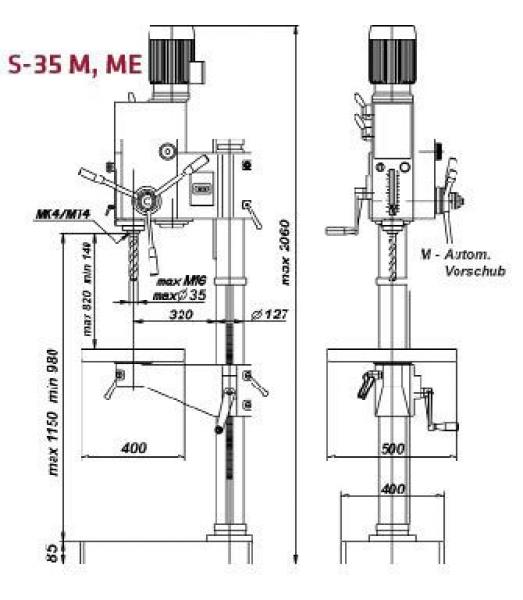

Technical data ELMAG S 35 M STRANDS gear box column drill
- drilling capacity in steel: 35mm
- Thread cutting capacity: M22
- Spindle mount (turning spindle): MK4
- Speed range: 90 - 1500UpM
- Speed steps: 8
- quill stroke: 190mm
- quill feed steps: 4
- torque: 0N-m
- column diameter: 140mm
- drill head stroke: 0mm
- drilling table stroke: 830mm
- spindle throat depth: 330mm
- Drilling table rotatable: ± 360
- quill distance base: 1210mm
- quill distance table min./max.: 215-830mm
- Drilling table surface: 500x400mm
- drilling table height: 0mm
- Motor power: (2-stage) 2200/2600W
- jack screw drive: 0W
- Power supply: 400/50-60V/Hz
- Feed force: 0N
- Coolant pump capacity: 0l/min
- Height (total): 0mm
- weight: 290kg
