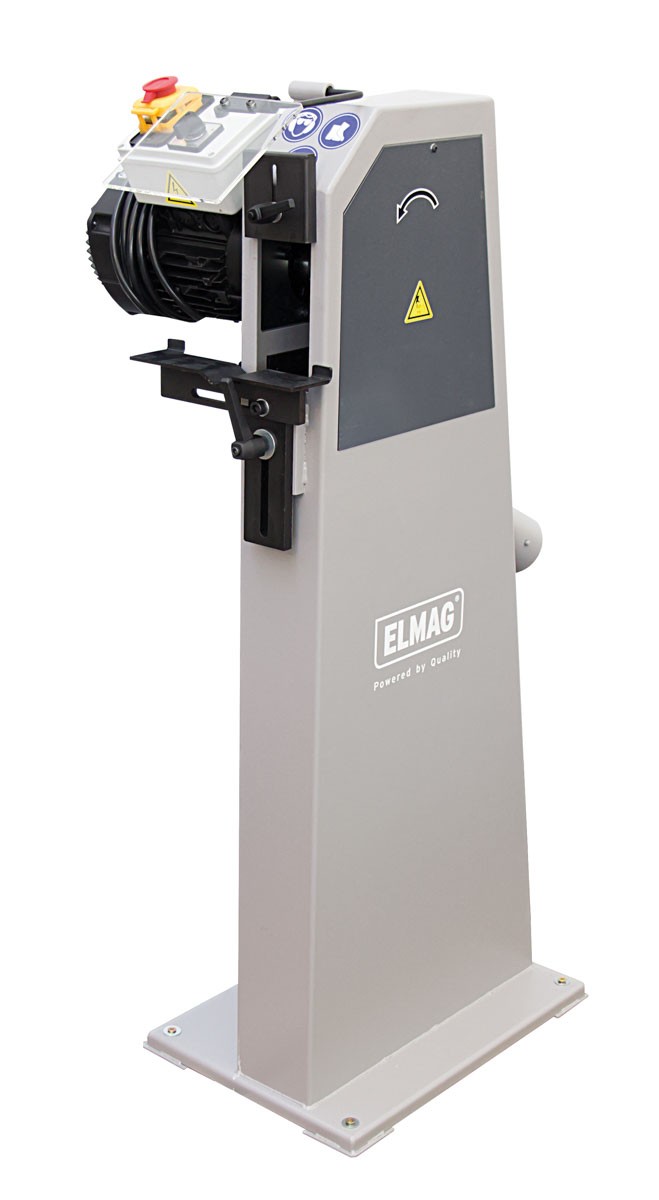

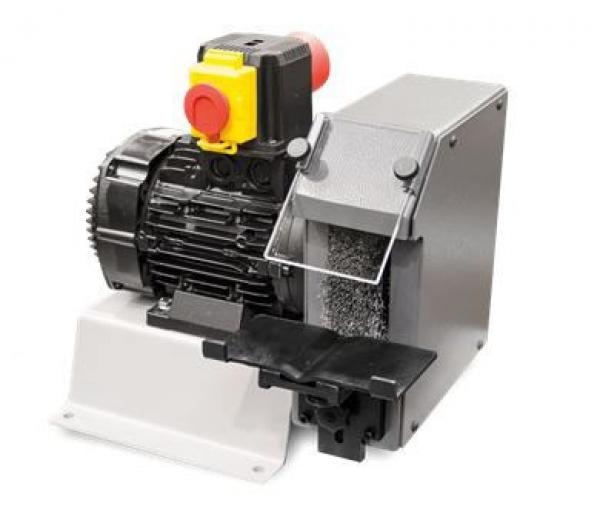

Product highlights ELMAG S 250/2 brush deburring machine
Deburring, cleaning, derusting, exposing
The ELMAG brush deburring machines remove the cutting burrs on bar profiles and flat materials. Fast rotating special brushes for steel, stainless steel and aluminium cut the inner and outer burrs and leave clean, slightly rounded edges without burr and counter burr - in the shortest time, in one operation.
The ELMAG brush deburring machines also clean castings and derust metal surfaces, expose painted surfaces and are ideal for weld seam and primer preparation.
Standard equipment ELMAG S 250/2 brush deburring machine
- Workpiece support horizontally adjustable
- Support beam vertically adjustable
- Spark protection with eye protection glass
- Two-stage switching
- Emergency stop button
- Zero voltage release
- Robust sheet steel column
- Connection cable 4 m
- Operating instructions / CE
Special accessories ELMAG S 250/2 brush deburring machine

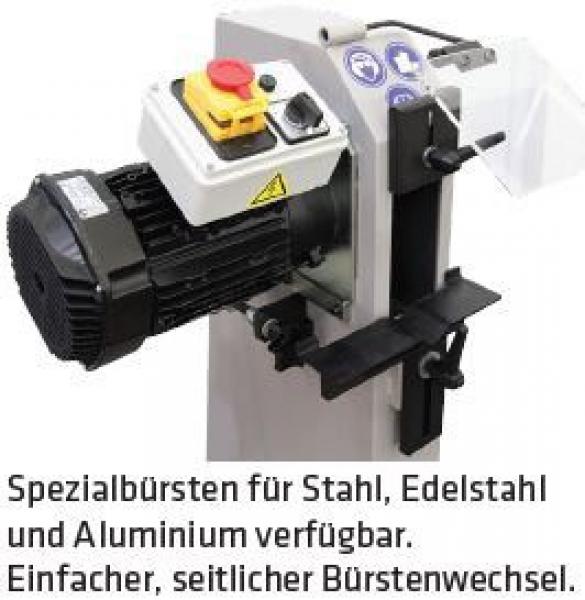

- Deburring brush STEEL, 250x60x0,2 mm
- Deburring brush STEEL, 250x60x0,35 mm
- Deburring brush STEEL, 250x60x0,5 mm
- Deburring brush STAINLESS STEEL, 250x60x0,35 mm
- Deburring brush STAINLESS STEEL, 250x60x0,5 mm
Technical facts ELMAG S 250/2 brush deburring machine
- Powerful three-phase drive
- Flexible use - two speeds 1,380 and 2,840 rpm at S 250 for hard&soft brushing and deburring
- Optimum handling - workpiece support horizontally adjustable
- Support beam swivels and is vertically adjustable
- High load capacity - large brush bearing
- Operationally safe - sheet steel machine column, adjustable spark protection, eye protection glass, emergency stop, zero voltage release, CE-compliant
Technical data ELMAG S 250/2 brush deburring machine
- Min. brush width: 0mm
- Max. brush width: 0mm
- brush diameter: 250mm
- brush width: 55mm
- Speed steps: 2Anz.
- brush speed: 1: 18 m/min / 2: 37m/min
- Brush speed: 1: 1380 rpm / 2: 2840 rpm
- Brush drive Motor power: 2200W
- Power supply: 400/50-60V/Hz
- length: 510mm
- width: 480mm
- height: 1230mm
- weight: 85kg
Highest quality of ELMAG machines
Benefit from a 2 year ELMAG warranty
Accessories for ELMAG machines on request
