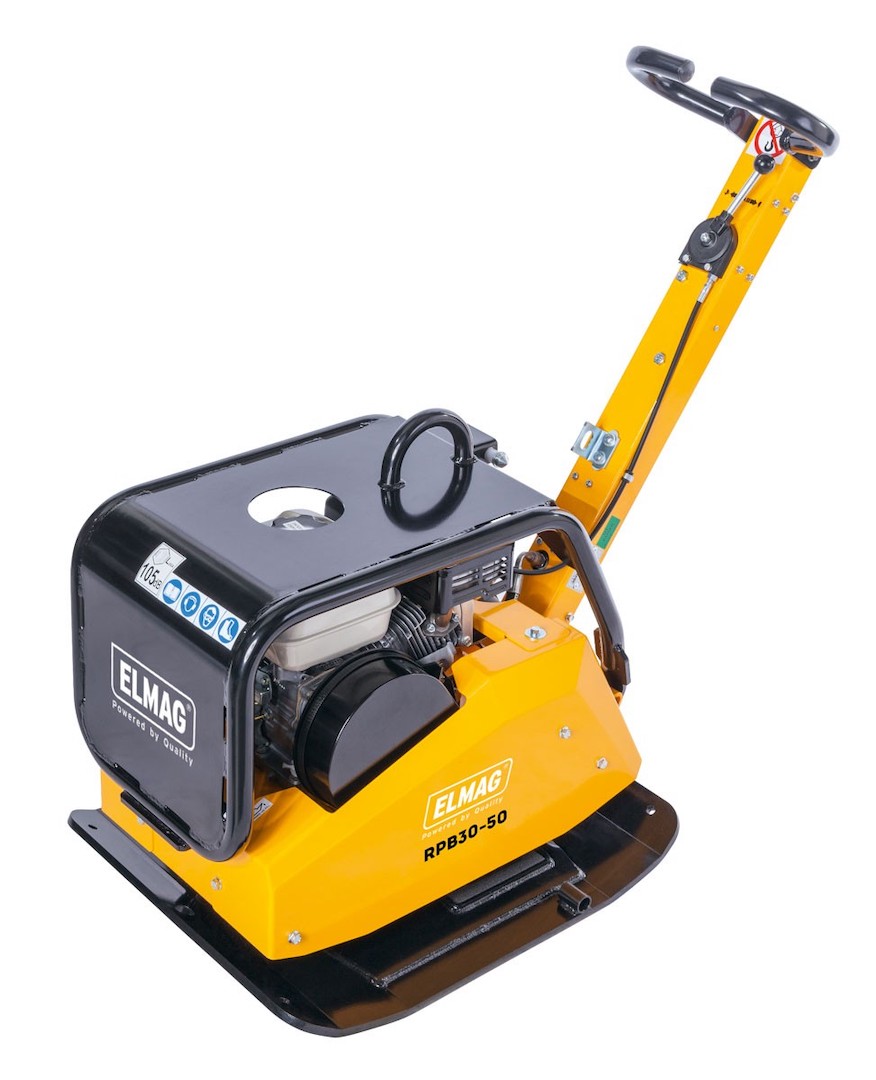

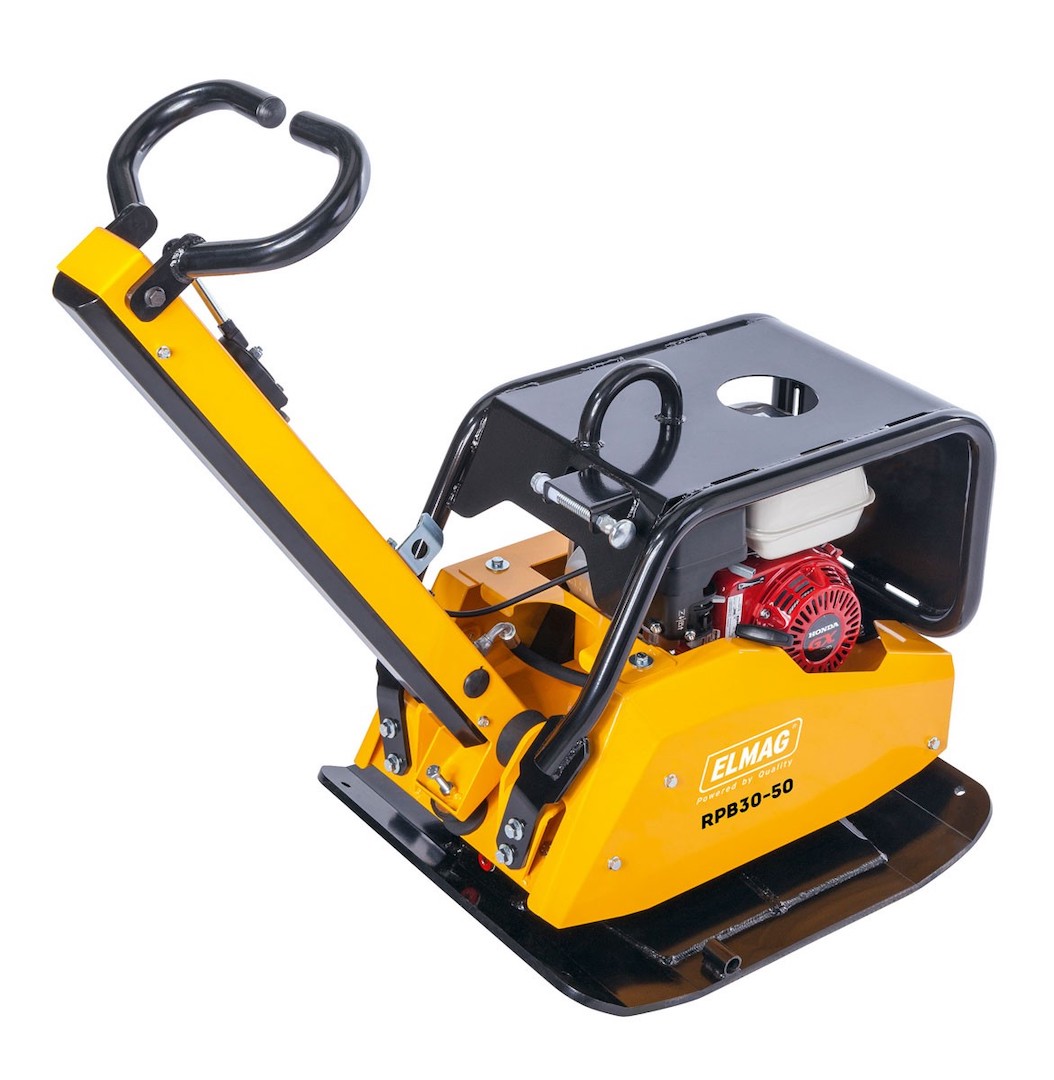

Product Highlights ELMAG RPB30-60 reversible vibratory plate
VIBRATORY PLATES, REVERSIBLE
Standard with infinitely variable hydraulic switching between forward and reverse. This allows large areas to be compacted with powerful machines. Vibratory plates with very high compaction performance in a wide variety of designs according to customer requirements. On all models, the machine is protected by a high-quality steel protective frame against damage. Incl. transport hooks.
SPECIAL ACCESSORIES
- Vulkolan mat incl. holder
- Wheelset
Technical facts ELMAG RPB30-60 reversible vibratory plate
- Infinitely hydraulically adjustable Forward or reverse running
- Self-tightening coupling system for reduced V-belt wear
- Crack- and break-proof base plate made of hardened steel
- Guide rail can be locked in vertical position during transport or storage
- New protective cage offers reliable protection for the motor and the device
- Extra strong rubber bearings installed

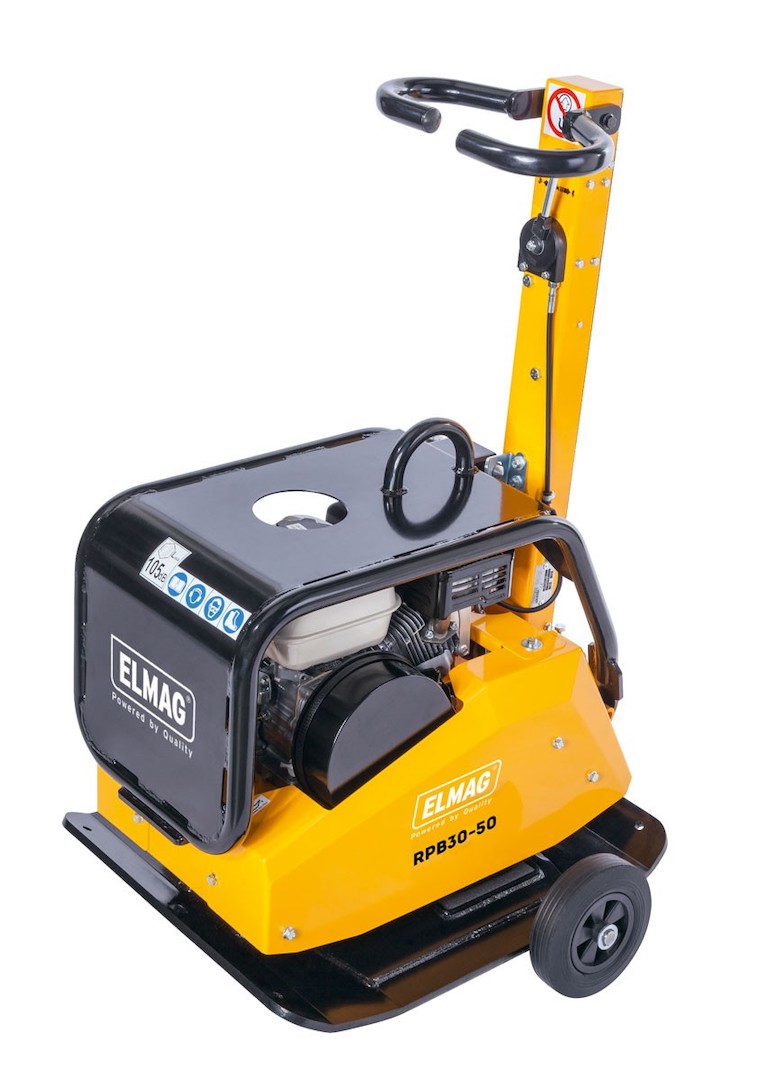

- Easy to mount transport wheels
Technical facts ELMAG RPB30-60 reversible vibratory plate
- Centrifugal force: 30 kN
- Max. Speed: 20 m/min
- Surface compaction: 600 m²/h
- Engine type: GX200
- Power: 5,5 PS
- Panel size: 600x710 mm
- working width: 600 mm
- Vibration frequency: 81 Hz
- Weight: 185 kg
Highest quality of ELMAG machines
Benefit from a 2-year warranty from ELMAGAccessories for ELMAG machines on request
