ELMAG RKBM 16 T radial V-belt table drilling machine

Product No.:
16025
2-4 days 2-4 days (abroad may vary)
  • Spare parts supply
  • Top quality
  • Happy customers
  • Secure payment
  • Authorized dealers

Delivery: If you need the item very urgently, please ask in advance for the exact delivery time.

Weight:
115 kg per piece
4.106,90 EUR

19% VAT excl. Shipping costs

Ask about product
Description

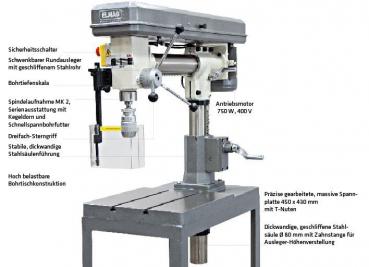

Product highlights ELMAG RKBM 16 T radial V-belt table drill

Clamping once, drilling many times
The super-practical RKBM 16 T offers rational machining of workpieces thanks to its easily adjustable boom and a top speed of 2,800 rpm. Especially for distance and serial small bores a significant reduction of changeover times can be achieved. With a drilling capacity of up to 16 mm, the RKBM 16 T is therefore a flexibly applicable lightweight drilling machine for metal workshops, switch cabinet, electrical and model construction, as well as for vocational schools and training workshops.

Technical facts ELMAG RKBM 16 T radial V-belt table drilling machine​

  • Standard equipment:
    • Keyless drill chuck B 16, 1 - 16 mm- Taper arbor MK 2
    • B 16- Drift wedge tool set operating instructions
    • CE
  • Drilling capacity Ø 16 mm
  • Cubic capacity 450 x 430 x 560 mm
  • spindle throat 160 - 520 mm
  • Boom with easy to use height and swivel adjustment
  • Motor 750 W, 400 V
  • 9 speeds 190 - 2,800 rpm, top speed for small bores and small grinding tools
  • Drive via quality V-belts
  • Drilling spindle with precision bearing
  • Clockwise rotation
  • Drilling depth scale and stop
  • Solid drilling table with integrated clamping plate and T-slots
  • Ground steel column with gear rack
  • Safety switch with emergency stop button and zero voltage release

Technical data ELMAG RKBM 16 T Radial V-belt table drilling machine​

  • drilling capacity in steel: 16mm
  • Spindle mount (turning spindle): MK 2
  • Speed range: 190 - 2800 rpm
  • Speed steps: 9
  • quill stroke: 80mm
  • Torque: 0N-m
  • column diameter: 80mm
  • drill head stroke: 290mm
  • spindle throat depth: 160 - 520mm
  • drill head swivels: ± 90°
  • Drill head rotatable: ± 180
  • quill distance table min./max.: 270 - 560mm
  • Drilling table surface: 450 x 430mm
  • drilling table height: 800mm
  • Engine power: 750W
  • jack screw drive: 0W
  • Power supply: 400 / 50 - 60V/Hz
  • Feed force: 0N
  • Coolant pump capacity: 0l/min
  • Cubature: 450 x 430 x 560mm
  • Base plate area (lxw): 700 x 450mm
  • height (total): 1700mm
  • Weight: 100kg

Highest quality of ELMAG machines
Benefit from a 2 year ELMAG warranty

Accessories for ELMAG machines on request
