ELMAG PROFI TIG DC WELDING INVERTER 'PFC'

Product Highlights ELMAG PROFI TIG DC WELDING INVERTER 'PFC':

SMART WELDING IN FULL CONTROL: The WIN TIG DC 220 M model offers more welding power and can be used with tungsten electrodes up to Ø 3.2 mm. It allows full control of the TIG welding cycle, making it ideal for high quality commercial and industrial welds. The compliance with the EN 61000-3-12 regulation assures a significant reduction of energy consumption and a large tolerance of the supply voltage (+15% / -20%). Furthermore, this allows the power source to be operated with power generators (min. 10 kVA).

CEBORA WIN TIG 'DC' 220 M - ECO SET WITHOUT STEEL BOTTLE CONSISTING OF:

1 PC. WELDING INV. WIN TIG DC 220 ART. NO.: 56902
1 PC. TIG HOSE P. SR 26/4M ART.NO.: 55920
1 PC. PRESSURE REDUCER F. STEEL FL. ART.NO.: 54122
1 PC. EARTH CABLE COMPLETE 35QMM, 3M, PLUG 35/50 ITEM NO.: 55283

CLAIM UP TO 24 MONTHS WARRANTY NOW!
SIMPLY REGISTER UP TO 15 DAYS AFTER DATE OF PURCHASE AT HTTPS://WWW.CEBORA.IT/GARANZIE/FRONTEND/.

Examples of use ELMAG PROFI TIG-DC-WELDING INVERTER 'PFC':

• Production, repair & assembly companies
• Pipeline & pipeline construction
• Metal, railing construction
• Machine, plant & container construction
• Service & customer service

materials:

• Steel
• CrNi
• Copper

Technical facts ELMAG PROFI TIG-DC-WELDING INVERTER 'PFC':

• NEW: Multi-voltage system can be used for 230 V and 115 V
• TIG CYCLE: Fully definable welding cycle
• Activ-Power-Control (APC) welding process for achieving colder weld beads
• White-Rapid TIG spot welding functions for optimum tacking without tarnishing with minimum heat input
• Interval welding function enables welds with optimum heat input and penetration depth
• High pulse frequencies allow a welding arc to be focused more closely on the area to be welded
• Different pulse arcs (low, medium, high and ultra-high frequency) for thin-walled materials where heat input must be minimal
• Different types of arc ignition allow the user to adapt the welder to his own TIG welding technique and to be extremely precise
• Up to 9 welding programmes can be stored

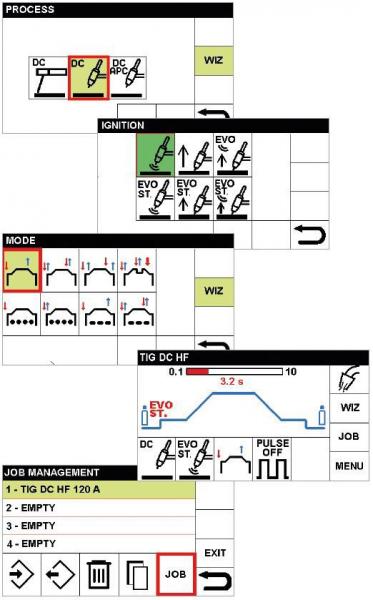

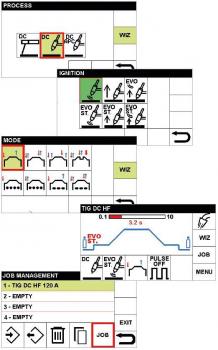

• 1-button operation and intuitive LCD colour display

Technical data ELMAG PROFI TIG-DC-WELDING INVERTER 'PFC':

• Welding electrode diameter TIG 1.6 - 3.2 mm / MMA 1.6 - 4.0 mm
• Welding current setting range TIG 5 - 220 A / MMA 10 - 140 A
• 100 % duty cycle (10 min. at 40 °C) at welding current TIG 140 A / MMA 115 A
• Duty cycle (10 min at 40°C) at welding current TIG 160 A / MMA 125 A
• Duty cycle (10 min at 40°C) at max. welding current TIG 30%/220A / MMA 35%/140A
• Open circuit voltage 88 V
• Mains connection / phases 230 / 1 V / ~
• Mains frequency 50/60 Hz
• Mains current tolerance +15 / -20 %
• Mains fuse slow-blow 16 AT
• Thermal overload protection Yes
• Insulation class H
• Protection class (IP) 23S
• Power input l1 max. / l1 eff. TIG 22/12 A / MMA 19/12 A
• Earth connection plug / cross-section 13 / 35 Ø / mm²
• Connection plug Schuko 16 A
• Width 176 mm
• Depth 450 mm
• Height 402 mm
• Weight 15,7 kg

Highest quality machines from ELMAG
Benefit from a 2 year ELMAG warranty

Accessories for ELMAG machines on request
