ELMAG PROFI TIG DC WELDING INVERTER 'PFC' Set

Product Highlights ELMAG PROFI TIG DC WELDING INVERTER 'PFC' Set:

WIN TIG DC 180 M - CEBORA HIGH-END WELDING INVERTER:
The WIN TIG DC 180 M inverter offers advanced functions for TIG welding of steel, stainless steel, copper etc. & is an ideal entry-level unit for precision welding with non-contact high-frequency ignition. & is an ideal entry-level unit for precision welding with non-contact high-frequency ignition. Optional up-down hose package or foot pedal available.Even more energy-saving thanks to state-of-the-art PFC technology as well as resistant to current fluctuations +15%/- 20%. Also ideal for construction sites & generator operation (min. 8 kVA).


1. ignition type selection
- MMA - electric manual welding
- LIFT TIG - gentle contact ignition without HF
- TIG HF - high frequency
2. operating mode selection
- TIG 4-TAKT - automatic / long seams
- TIG 2-TAKT - manual/short seams
3. welding current controller
4. SLOPE DOWN: current reduction time controller
5. POST GAS: gas post flow time controller
6. operation/temperature control lamp
7. socket minus pole
- TIG: Torch connection
- MMA rutile electrodes: Torch connection
8. socket positive pole
- TIG: Earth connection
- MMA rutile electrodes: Earth connection
- MMA base electrodes: Torch connection
9. 10-pole connection for hose assembly / optionally remote-controllable
10. shielding gas connection

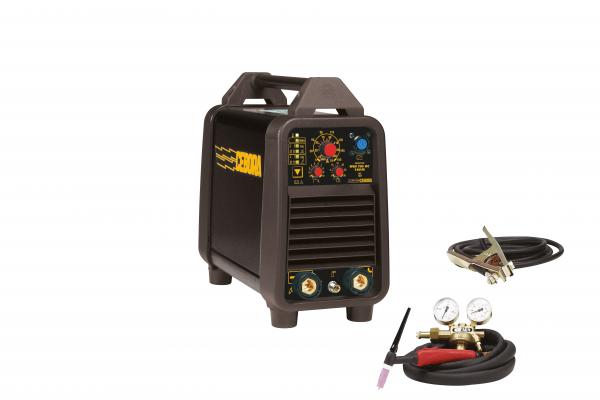

CEBORA WIN TIG 'DC' 180 M - ECO SET WITHOUT STEEL CYLINDER CONSISTING OF:

• 1 PC. WELDING INV. WIN TIG DC 180 ART. NO.: 56903
• 1 PC. TIG HOSE P. SR 26/4M ART.NO.: 55920
• 1 PC. PRESSURE REDUCER F. STEEL FL. ART.NO.: 54122
• 1 PC. EARTH CABLE COMPLETE 25QMM, 3M, PLUG 35/50 ART.-NO.: 55282

CLAIM UP TO 24 MONTHS WARRANTY NOW!
SIMPLY REGISTER UP TO 15 DAYS AFTER DATE OF PURCHASE AT HTTPS://WWW.CEBORA.IT/GARANZIE/FRONTEND/.

Examples of use ELMAG PROFI TIG-DC-WELDING INVERTER 'PFC' Set:

• Production, repair & assembly companies
• Pipeline & pipeline construction
• Metal, railing construction
• Machine, plant & container construction
• Service & customer service

materials:

• Steel
• CrNi
• Copper

Technical data ELMAG PROFI TIG-DC-WELDING INVERTER 'PFC' Set:

• Welding electrode diameter min: 1.3 / max: 3.2 mm
• Welding current setting range TIG: 5-180 / MMA: 10-140 A
• 100 % duty cycle (10 min. at 40 °C) at welding current TIG: 110 / MMA: 95 A
• 60 % duty cycle (10 min at 20°C) at welding current TIG: 135 / MMA: 115 A
• Duty cycle (10 min at 40°C) at max. welding current TIG: 35/180 / MMA: 30/140
• Open-circuit voltage TIG: 99 / MMA: 75 V
• Mains connection / phases 230/~1 V / ~
• Mains frequency 50/60 Hz
• Mains current tolerance +15/-20 %
• Mains fuse slow-blow 16 AT
• Thermal overload protection YES
• Protection class (IP) 23S
• Input power l1 max. / l1 eff. TIG: 17/10 / MMA: 20/12.5 A
• Earth connection plug / cross-section 13/25 Ø / mm²
• Connection plug Schuko 16A
• Width 171 mm
• Depth 420 mm
• Height 340 mm
• Weight 10,3 kg
