ELMAG PROFI TIG AC DC WELDING INVERTER 'PFC'

Product Highlights ELMAG PROFI TIG AC DC WELDING INVERTER 'PFC'.

CEBORA HIGH-END WELDING INVERTER: Metals with an oxide layer, such as aluminium, are welded with alternating current at the negative pole to open the metal surface and clean the weld pool of oxides. The universally applicable WIN TIG AC-DC 180 M welding inverter offers a switchover function from direct to alternating current and enables professional processing of aluminium, magnesium, brass, etc. The compliance with the EN 61000-3-12 regulation assures a significant reduction of energy consumption and a large tolerance of the supply voltage (+15% / -20%). Furthermore, this allows the power source to be operated with power generators (min. 8 kVA).

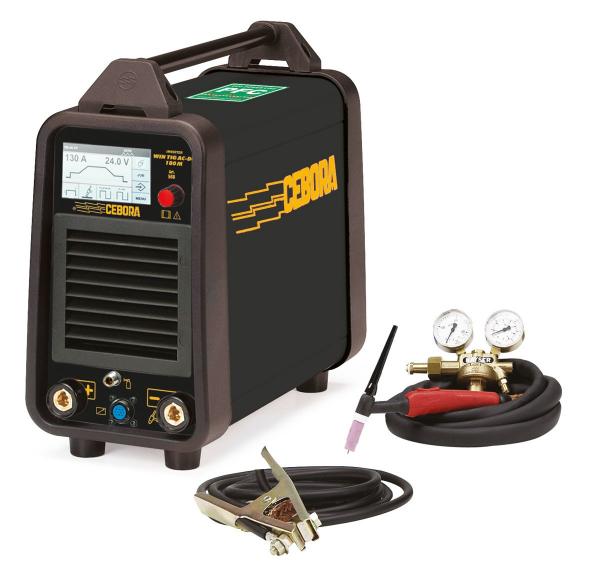

WIN TIG 'AC-DC' 180 M - ECO SET without steel cylinder consisting of:
1 pc.welding inv. WIN TIG AC/DC 180 M
Item no.: 55902
1 pcs.tig. hosep. SR 26/4m
item no.: 55920
1 pc.pressure reducer for steel hose
Item no.: 54122
1 pc.earth cable complete
25qmm, 3m, plug 35/50
item no.: 55282
APPLY FOR UP TO 24 MONTHS WARRANTY NOW!
Simply register at https://www.cebora.it/garanzie/frontend/ within 15 days of purchase.




Technical facts ELMAG PROFI TIG-AC-DC-WELDING INVERTER 'PFC

• NEW: 1-button operation and intuitive LCD colour display
• TIG CYCLE: Fully definable welding cycle
• Activ-Power-Control (APC) welding process for achieving colder weld beads
• TIG spot welding functions for optimum tacking without tarnishing with minimum heat input
• Interval welding function enables welds with optimum heat input and penetration depth
• High pulse frequencies allow a welding arc to be focused more closely on the area to be welded (0.16 Hz to 2.5 KHz)
• Different pulse arcs for welding with concentrated arc for optimal welding & spot welding results
• Different types of arc ignition allow the user to adapt the welder to his own TIG welding technique and to be extremely precise
• APC function: This new function allows the welding current to be automatically adjusted to the arc height in order to obtain a constant molten pool at a high welding speed and minimal deformation of the component
• AC-DC TIG welding process: Suitable for welding aluminium and its alloys, with the DC component of this welding process we get more penetration and higher welding speed with less deformation of the component.
• XP-TIG welding process (extra power): Enables welding of thin materials and provides better welding results on thin-walled profile edges as well as corner welds
• AC-MMA welding process for welding stick electrodes on magnetised sheets. It is normally used for maintenance work and wherever high penetration welding is not required.
• Up to 9 welding programmes can be stored

Technical facts ELMAG PROFI TIG-AC-DC-WELDING INVERTER 'PFC

• Welding electrode diameter TIG 1.6-3.2 mm / MMA 1.6-3.2 mm
• Welding current setting range TIG 5-180 A / MMA 10-130 A
• 100 % duty cycle (10 min. at 40 °C) at welding current TIG 100 A / MMA 90 A
• Duty cycle (10 min at 40°C) at welding current TIG 110 A / MMA 100 A
• Duty cycle (10 min at 40°C) at max. welding current TIG 25%/180A / MMA 30%/130A
• Open circuit voltage TIG 103 V / MMA 84 V
• Mains connection / phases 230 / 1 V / ~
• Mains frequency 50/60 Hz
• Mains current tolerance +15 / -20 %
• Mains fuse slow-blow 16 AT
• Thermal overload protection Yes
• Insulation class H
• Protection class (IP) 23S
• Input power l1 max. / l1 eff. TIG 19/10 A / MMA 19/12 A
• Earth connection plug / cross-section 13 / 25 Ø / mm²
• Connection plug Schuko 16 A
• Width 207 mm
• Depth 500 mm
• Height 411 mm
• Weight 17,5 kg
