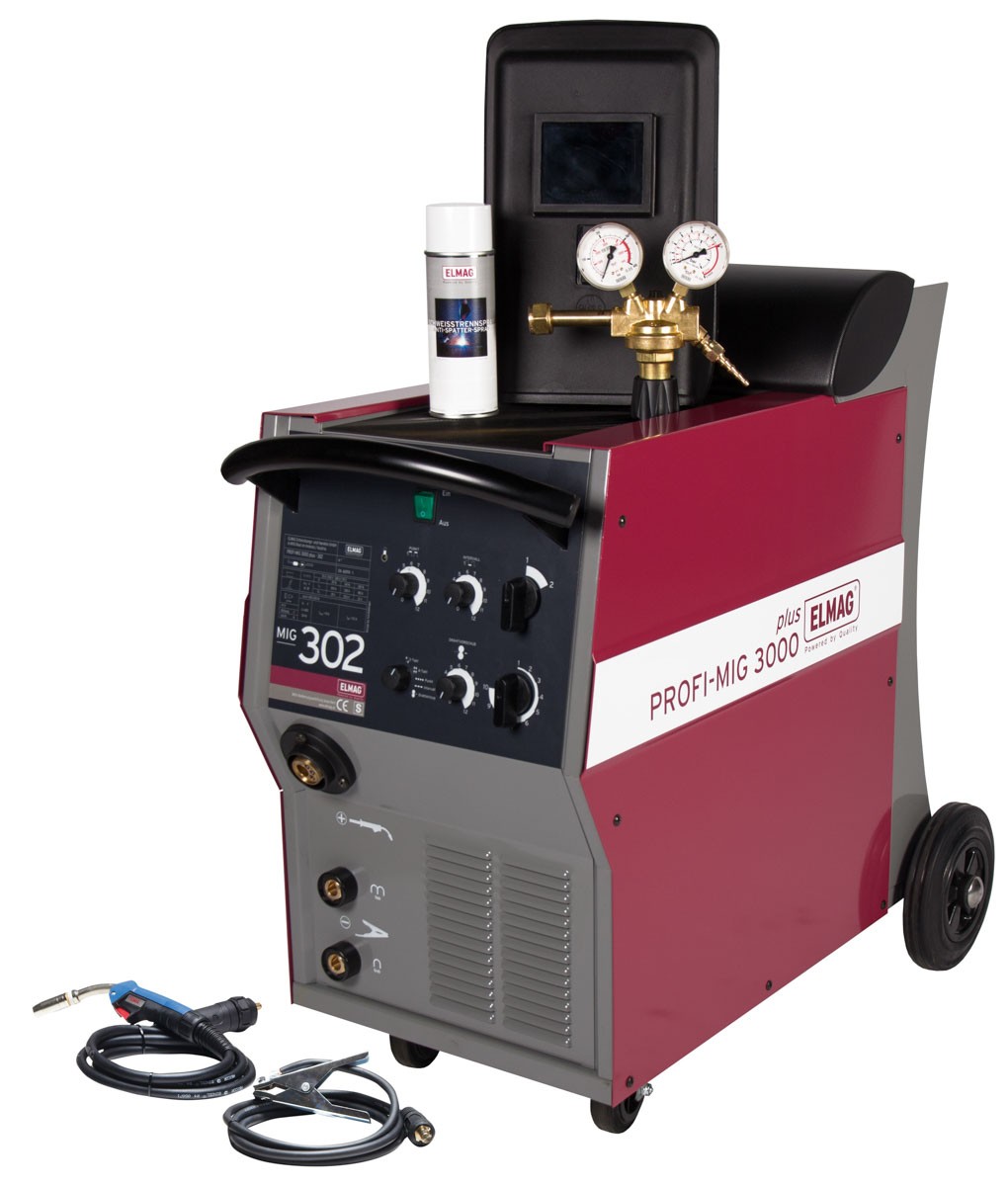

Product Highlights ELMAG PROFI-MIG 3000 plus / MIG 302 inert gas welding machine
Materials
- Steel
- CrNi
- Aluminium
Application examples ELMAG PROFI-MIG 3000 plus / MIG 302 inert gas welding machine
- Mechanical Engineering
- Steel construction
- Metalworking shops
- Forging
- Agriculture
Technical facts ELMAG PROFI-MIG 3000 plus / MIG 302 inert gas welding machine
- EUROMIG plus - Overview

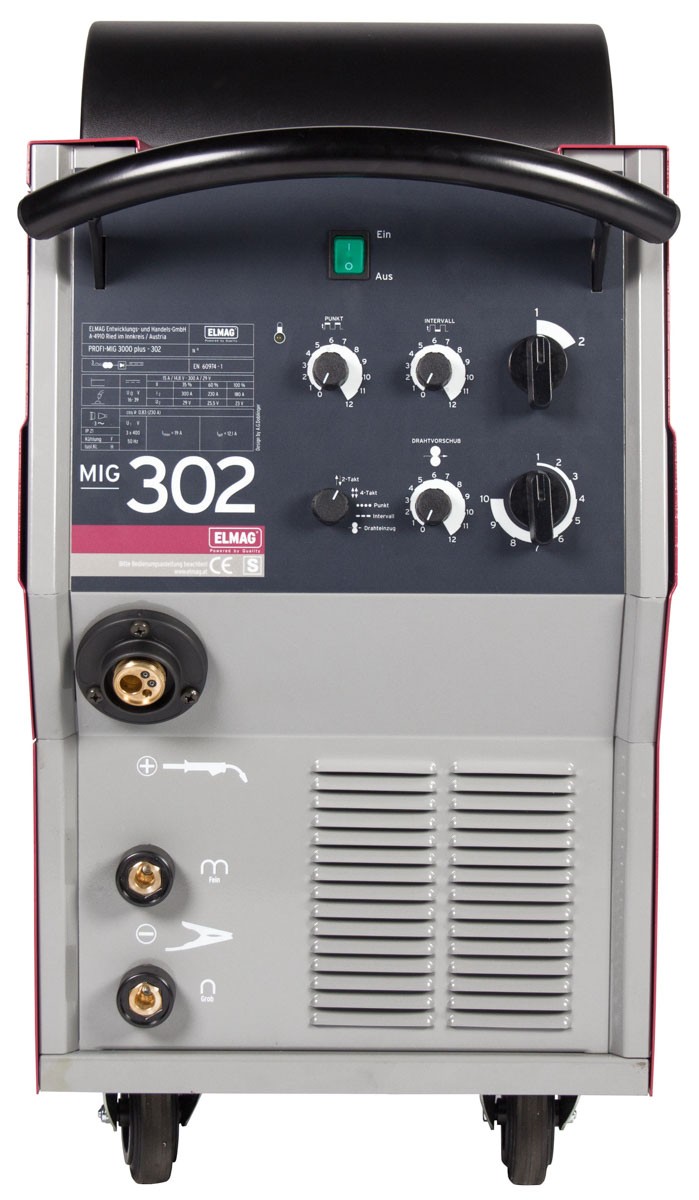

- Ergonomic control panel, inclined arrangement
- Coarse step switch with two switching steps & fine step switch with ten switching steps
- Wire feed controller stepless
- Spot welding automatic stepless
- Automatic interval welding stepless
- Operating mode switch: 2-stroke, 4-stroke, spot & interval welding mode, wire feed without gas consumption
- Temperature control lamp - overload protection incl. automatic reset, thermal sensor integrated in transformer winding

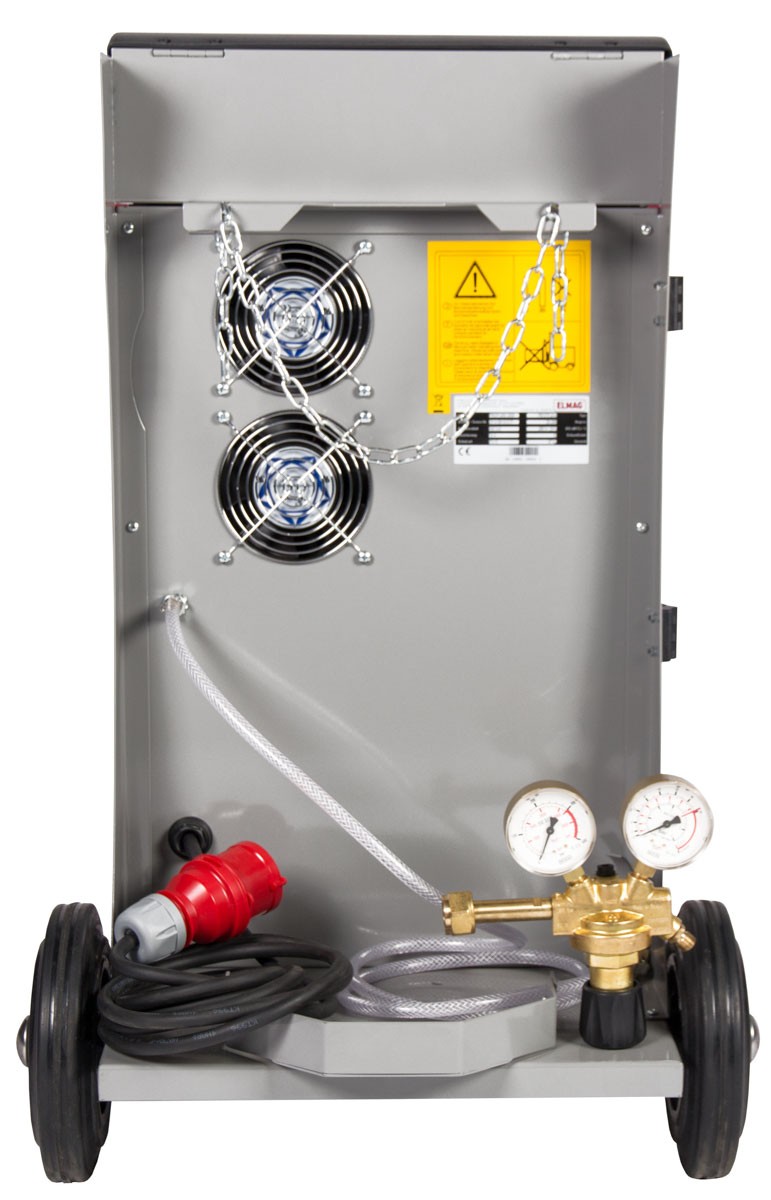

- Powerful cooling fans with thermostat control
- Main switch with operating lamp
- Dimensions fine/coarse Plug Ø 13 mm 35/50 mm² f. Materialst. small or large
- Hose package connection Original BINZEL

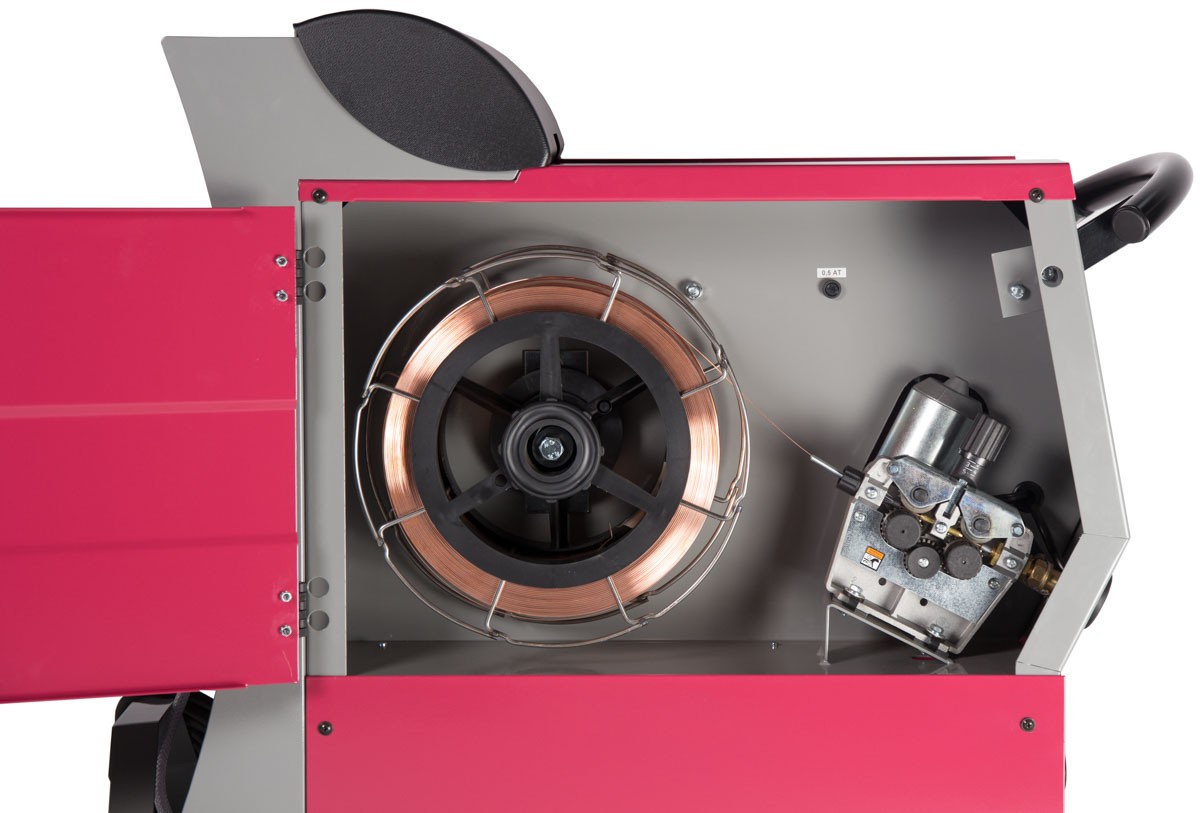

- Wire feed motor Gear drive, four rollers, inclined

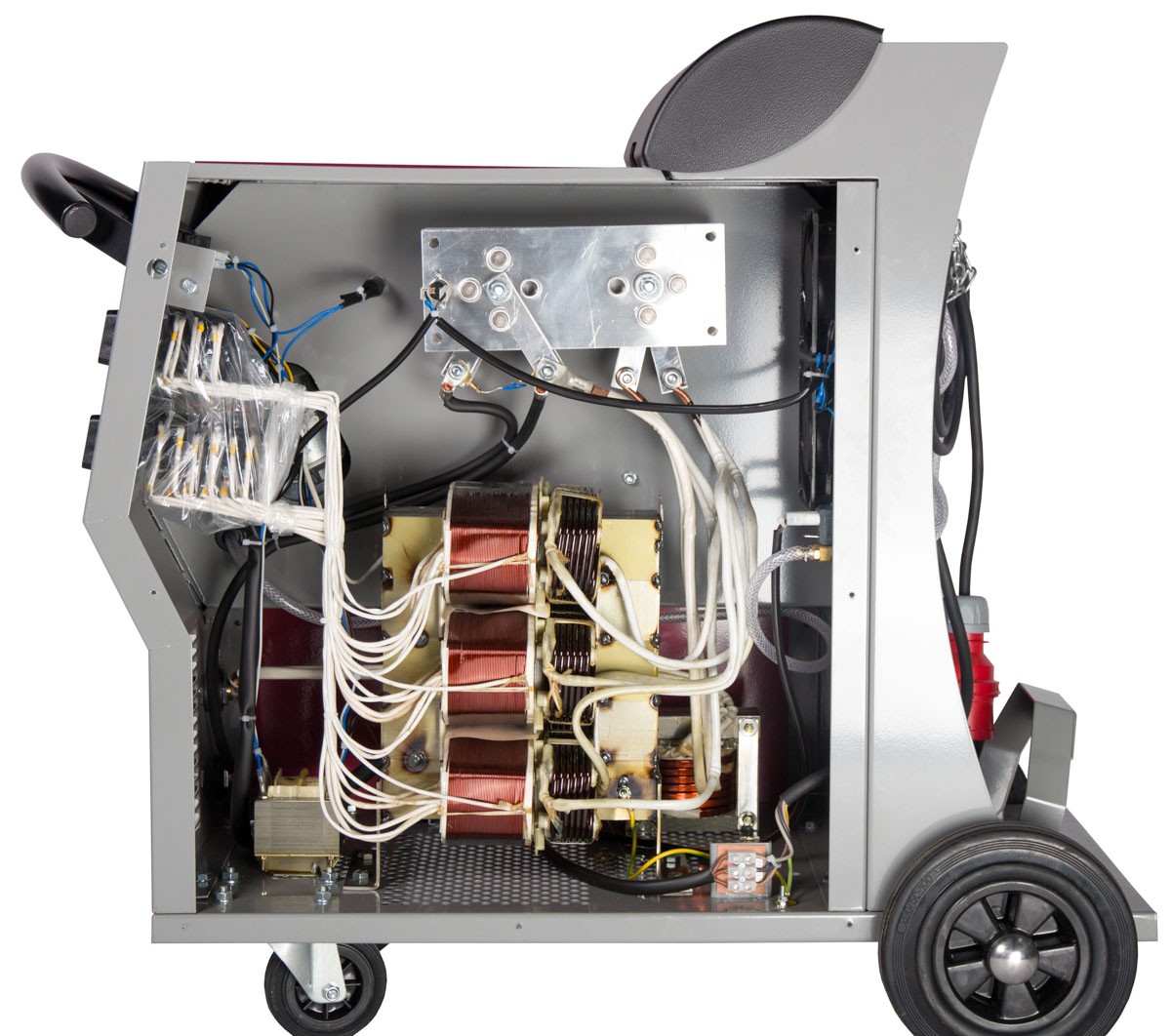

- High power transformer with first-class, back-ventilated copper winding, winding materials insulation class H (180°C), winding materials insulation class H
- Optimally dimensioned silicon plate rectifier for highest welding current quality
- Holder for steel cylinder protective cap
- Tool and utensil compartment
- Original BINZEL hose package MB 25 / 4 m
- Earth cable with welding cable plug / earth terminal
- Pressure regulator / pressure gauge / flow meter
- Feed rollers Wire diameter 0.6 / 0.8 mm
- Feed rollers Wire diameter 1.0 / 1.2 mm
- Wire spool adapter 5 kg / 200 mm
- Wire spool adapter 15 kg / 300 mm
- Hand welding shield PVC including welding glass
- Separating spray for welding nozzles
- Operating instructions / CE
Technical data ELMAG PROFI-MIG 3000 plus / MIG 302 inert gas welding machine
- welding rod roll diameter: 200 / 300mm
- welding rod roll weight: 5 / 15kg
- Welding current setting range: 25-300A
- Welding current switching stages: 2 x 10Anz.
- 100 % duty cycle (10 min. at 40 °C) with welding current: 100 / 180A
- Duty cycle (10 min at 40°C) at max. welding current: 35 / 300% / A
- Max. power consumption: 20kVA
- Mains connection / phases: 400 / 3V / ~
- mains frequency: 5060Hz
- Mains fuse protection slow: 16AT
- Protection class (IP): 21 S
- Feed drive X/Y/Z: 4 rollers
- Connection plug: CEE 16 A
- width: 530mm
- depth: 880mm
- height: 810mm
- weight: 108kg
