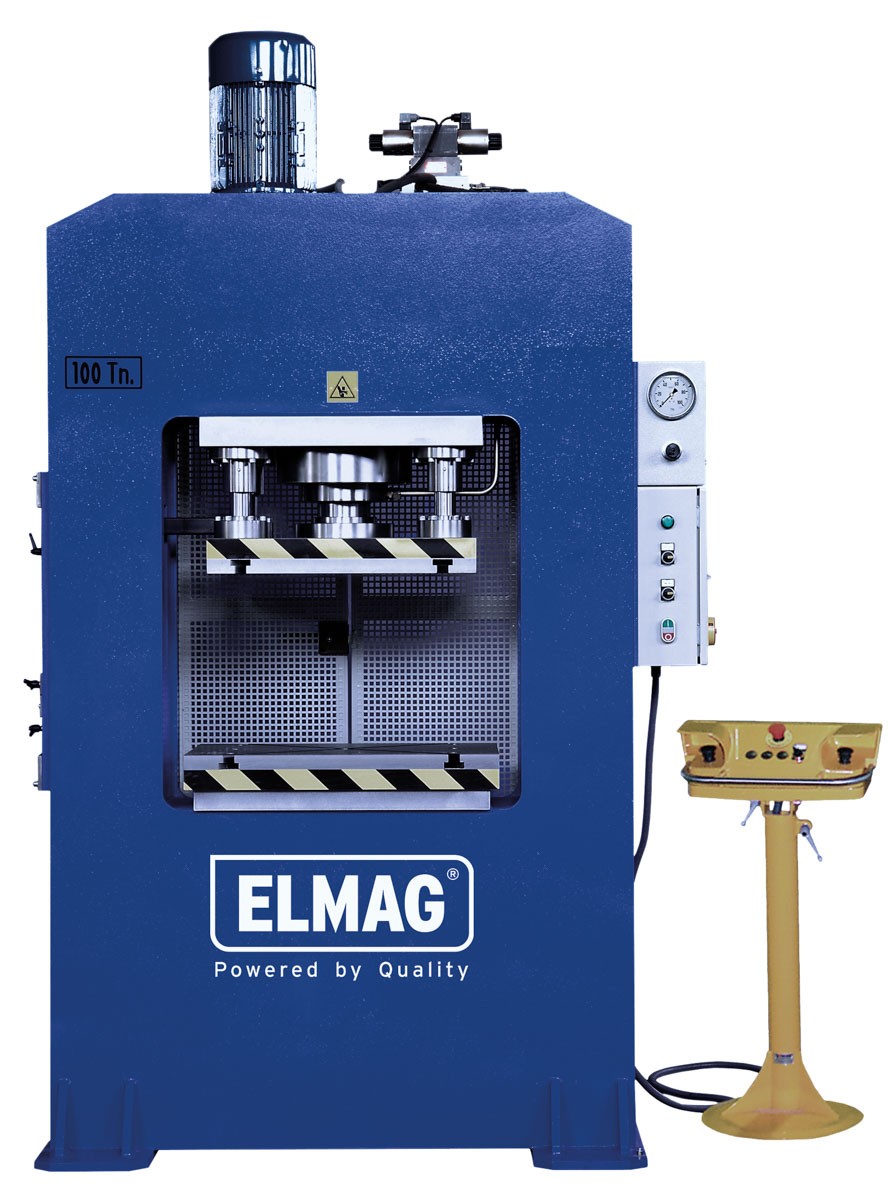

ELMAG PREMIUM WPHD 100 Hydraulic workshop press
Product Highlights ELMAG PREMIUM WPHD 100 Hydraulic workshop press
- The hydraulic production presses from ELMAG® have a welded construction made exclusively of steel of the quality ST52.3. Especially suitable for embossing, forming and punching and to be integrated in automatic production lines. The upper press table guarantees an exact parallelism due to 4 cylindrical column guides (made of CK-42 stainless steel). Double acting cylinders with a guide bush and anti-rotation device are standard equipment.
-
STANDARD EQUIPMENT
- Overload safety valve
- Pressure gauge
- Switching valve up/down
- Cylinder piston chrome-plated
- Operating instructions / CE
Technical facts ELMAG PREMIUM WPHD 100 Hydraulic workshop press
- The operation is carried out via a foot pedal.
- The lifting depth is adjusted manually.
- Lateral depth stop on the machine.
- Special versions available on request!
Technical data ELMAG PREMIUM WPHD 100 Hydraulic workshop press
Pressing capacity max.
100 t
Electrohydraulic drive
yes
Two drive speeds
yes
Piston speed stage 1/2
6.2 / 30.4 mm/s
Return speed
47.50 mm/s
Engine power
7.5 kW
Network connection
400/50-60 V/Hz
Machine height
2,555 mm
Machine length
955 mm
Machine width
1,525 mm
Passage
800 mm
Table height
900 mm
Lower table
700x500 mm
Upper table
600x450 mm
Piston stroke
250 mm
Weight
2,340 kg
Highest quality of ELMAG machines
Benefit from a 2 year ELMAG warranty
Accessories for ELMAG machines on request
Benefit from a 2 year ELMAG warranty
Accessories for ELMAG machines on request
