Product Highlights ELMAG PREMIUM EPB 40 Motorised ring bending machine
Powerful middle class
The APK 61/APK 81 ring bending machines are equipped with a 4,000 or 5,500 watt drive motor. Thanks to an efficient motor brake and an ideally proportioned reduction gear, they enable precise and millimetre-accurate processing of medium and large profile cross-sections. Three drive rollers, including two hydraulically positionable adjustment rollers, provide excellent power transmission for narrow bending diameters, e.g. round steel Ø 35 mm / Ø 600 or Ø 300 mm.
Extensive basic equipment
The APK models largely cover the needs for single and small batch production of simple profiles. Special accessories for special applications and large profiles are available on request.
Design - High Quality
All precision parts such as gears, bending rollers, straightening shafts, etc. are made of high-quality special steel (e.g. roller axles made of alloyed tempered steel 42 CrMo4, hardened and ground).
Upgradeable for series production
With feed and return speeds of 6.4 and 4.2 m/min respectively, the APK drives deliver outstanding performance characteristics. Easy handling, quick adjustability, digital display and, last but not least, the robust machine design make the APK models ideal candidates for series production. Special accessories are available to optimise serial use (APK CNC, NC-Control etc.). Series production.
Standard equipment ELMAG PREMIUM EPB 40 Motorised ring bending machine

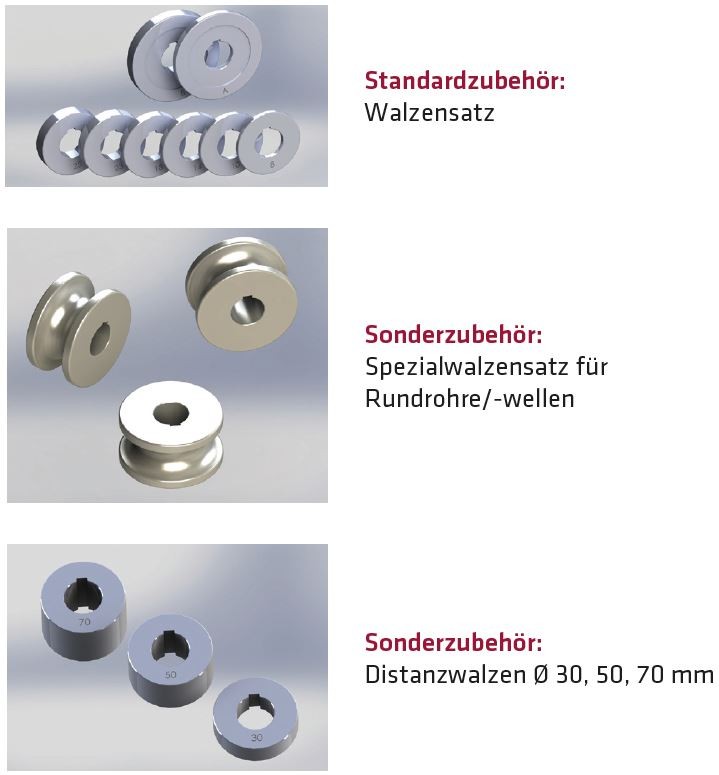

- Standard rollers - special steel hardened
- Roller axles - special steel, hardened
- Straightening shafts - special steel, hardened

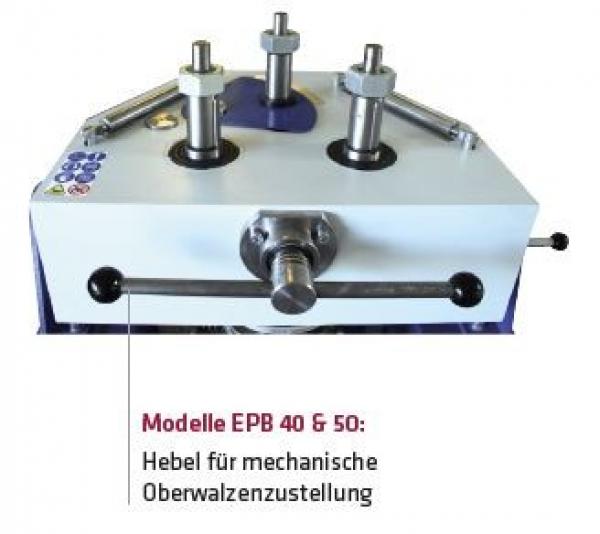

- Top roller adjustment mechanical
- Mechanical adjustment of straightening shaft
- Mobile control panel ERanalog/Emergency-Off
- Mobile control panel ERdigital/Emergency Stop
- Double foot pedal Forward/reverse feed
- Operating instructions / CE
Special accessories ELMAG PREMIUM EPB 40 Motorised ring bending machine
- Round and tubular steel bending rollers
Technical data ELMAG PREMIUM EPB 40 Motorised ring bending machine
- Roller diameter top: 150 mm
- Roller diameter bottom: 150 mm
- Axle diameter top: 40 mm
- Axle diameter bottom: 40 mm
- Adjusting rollers mechanical: 1 No.
- Adjustment rollers hydraulic: - No.
- Adjustment rollers feed path: 72 mm

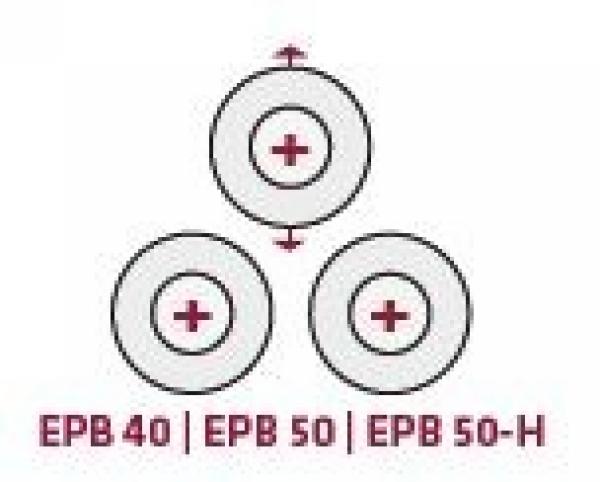

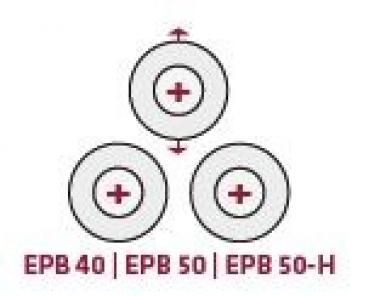

- Drive rollers: 3 No.
- Feed speed: 14 m/min
- Vertical installation: Yes
- Horizontal installation: Yes
- Drive motor: 1,500 W
- Mains connection: 400/50-60 V/Hz
- Length: 800 mm
- Width: 870 mm
- Height: 1,350 mm
- Weight: 340 kg
