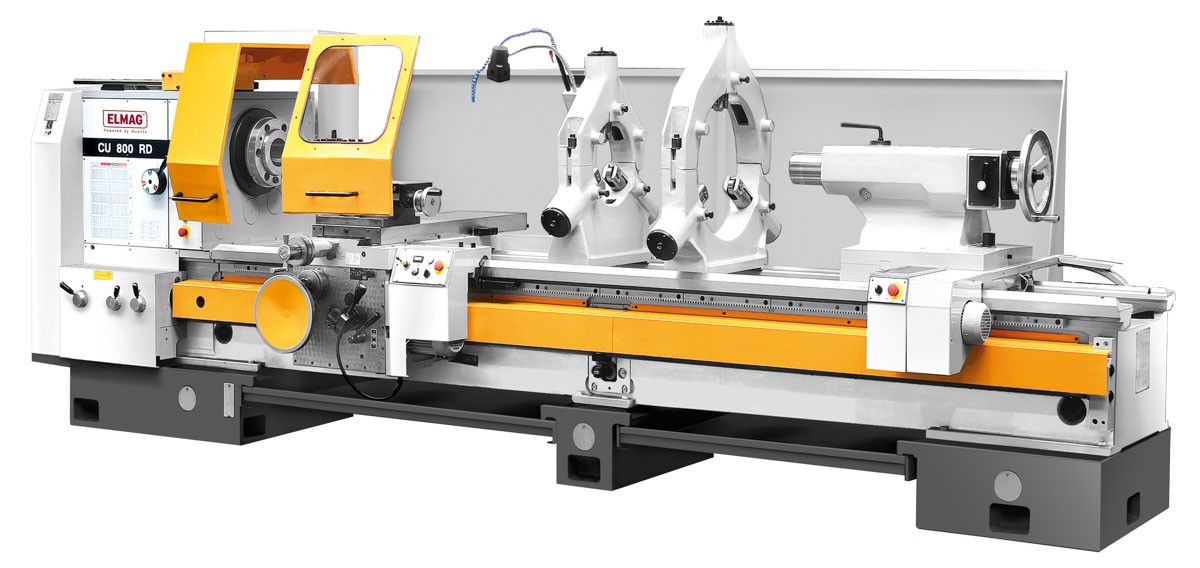

ELMAG PREMIUM CU 1320 RD-Vario universal lathe centre distance 4000mm

HIGH CLASS MODELS FOR DEMANDING TURNING JOBS!
Our universal lathes and lathes with infinitely variable speed control of the PREMIUM CU series have a wide range of features and accessories for customers in various industries.

The PREMIUM CU series allows the cutting speed to be precisely matched to the material and turning diameter - particularly advantageous for non-ferrous metals, plastics and for the perfect surface finish on precision parts and fits.

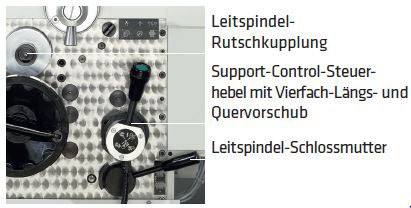

Interesting special features are the R/L control units mounted on the tool slides, by means of which the clockwise or counterclockwise rotation of the turning spindle is easily controlled. They replace the indexing shafts usually found on universal lathes.

Efficient handling is provided by electromechanical spindle brakes for super-fast turning spindle stopping. The leadscrews are equipped with overload protection.

Technical facts ELMAG PREMIUM CU 1320 RD-Vario universal lathe centre distance 4000mm​

• Standards Series PREMIUM CU:
• Heavy grey cast iron machine bed, good vibration damping
• Removable bridge
• Prismatic guides
• turning spindle hardened and precision ground, high concentricity, adjustable precision bearings
• Smooth running turning spindle and feed gear with oil bath
• Gear wheels made of chrome nickel steel, hardened and precision ground
• Feed reverse switch
• Covered trapezoidal thread lead screw, hardened, precision ground
• Tool slide with lock nut
• Precise carriage guides, adjustable
• Solid tailstock with tapered rotary displacement
• lathe accuracy to DIN

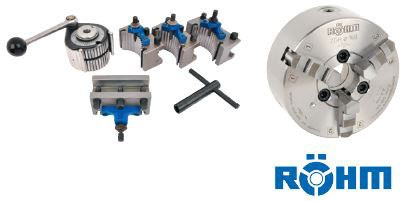

• RÖHM three-jaw lathe chuck Ø 660 mm
• Quick-change tool holder set, 5 pieces
• Halogen machine lamp
• Emergency stop button / zero voltage release
• Lathe chuck protection with safety switch
• Tool slide with splash guard
• Base frame / chip tray / splashback
• Tool kit / Operating instructions / CE

Technical data ELMAG PREMIUM CU 1320 RD-Vario universal lathe centre distance 4000mm​

• centre distance 4.000 mm
• turning diameter over bed1.320 mm
• Turning diameter via slide 940 mm
• turning diameter without bridge1.500 mm
• Machine bed width700 mm
• Cross slide travel625 mm
• Top slide travel270 mm
• Lathe chuck adapter DIN 55027 No. 15
• spindle holder (turning spindle) 160 mm
• spindle bore155 mm
• Speed range 1, infinitely variable 3.7 - 15.6 rpm
• Speed range 2, infinitely variable 14.7 - 62 rpm
• Speed range 3, infinitely variable 3: 58 - 250 / 4: 235 - 1,000 rpm
• Longitudinal feeds (160) 0.032 - 38.9 mm/rev
• Cross feeds (160) 0.016 - 19.45 mm/rev
• Thread dimension metric (80) 0.5 - 480 mm
• metric module threads (80) 0.125 - 120 mm
• inch thread, threads G (80) 60 - 1/16 G/'
• inch module thread, threads G (80) 240 - 1/4 G/'.
• quill adapter MK 6
• quill diameter125 mm
• quill travel260 mm
• Motor power 30.000 W
• Power supply 400/50-60 V/Hz
• Length (total) 6,200 mm
• Height (total) 1,980 mm
• Weight 8.950 kg
