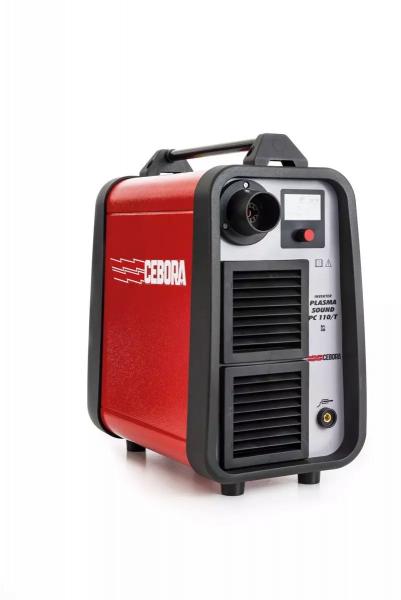

ELMAG plasma inverter CEBORA PLASMA SOUND PC 110/T Art. 336 incl. burner CP162C MAR/6m & earth cable 6m
Product highlights ELMAG plasma inverter CEBORA PLASMA SOUND PC 110/T
Ideal performance characteristics for heavy plate and average series:

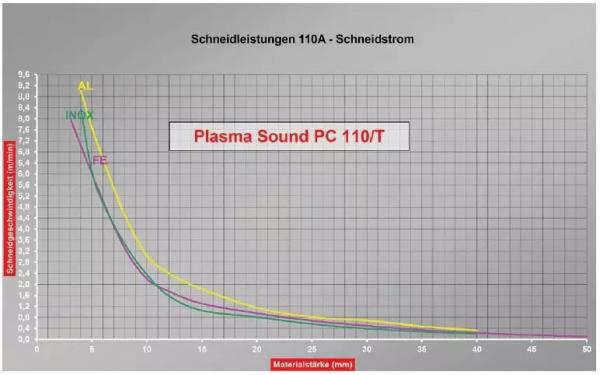

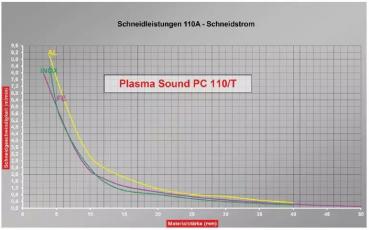

Quality cutting in steel up to 35 or 40 mm, 100 % duty cycle at 90 or 125 amps cutting current. Can be extended with torch package CP162 DAR for automatic production.
Standard equipment
- PLASMA SOUND PC 110/T
- Plasma torch package Orig. CEBORA CP162C MAR/6 m ZA
- Earth terminal with 6 m earth cable 25 mm² and welding cable plug Ø 9 mm, 16/25 mm²
- Operating instructions / CE
Technical facts ELMAG plasma inverter CEBORA PLASMA SOUND PC 110/T
- DC constant current source with PFC (compliant with EN 61000-3-12)
- Reduced power consumption, high mains current tolerance
- High electromagnetic compatibility (EN 50199), can be operated alongside electronic devices such as PLCs or PCs
- Automatic voltage switching 208 - 440 V
- Automatic monitoring of wear part consumption
- Intuitive 5’ LCD display with synergistic setting of cutting parameters
- Explosion-proof pressure regulator
- With CEBORA ‘On-Air’ ignition system
- ‘SELF-RESTART’ working mode, spot marking, gouging and many other functions selectable with the control panel
- SELF RESTART function: For automatically switching the arc off and on again when cutting lattice & grating work
- POST-FLOW torch cooling after arc switch-off
- Manual operation with plasma torch package CP162C MAR
- Automatic operation with plasma torch package CP162C DAR and interface circuit (special accessory)
- Can be operated with power generator (min. 20 or 30 kVA)
Technical data ELMAG plasma inverter CEBORA PLASMA SOUND PC 110/T
| Recommended cutting thickness Steel |
0 - 35 mm |
| Parting cut steel |
50 mm |
| Cutting current setting range |
20 - 110 A |
| Electronic cutting current control |
stepless |
| 100 % duty cycle (10 min. at 40 °C) with cutting current |
90 A |
| Duty cycle (10 min at 40°C) at max. cutting current |
50 / 110 % / A |
| Power consumption l1 max. / l1 eff. |
23 / 17 A |
| Mains connection / phases |
208-440 / 3 V / ~ |
| Mains frequency |
50 Hz |
| Mains current tolerance |
± 10 % |
| Mains fuse inert |
25 AT |
| Protection class |
23 IP |
| Connector plug |
CEE 32 A |
| Compressed air consumption |
250 l/min |
| Operating pressure |
5,5 bar |
| Width |
297 mm |
| Depth |
504 mm |
| Height |
558 mm |
| Weight |
34 kg |
| Art |
336 |
