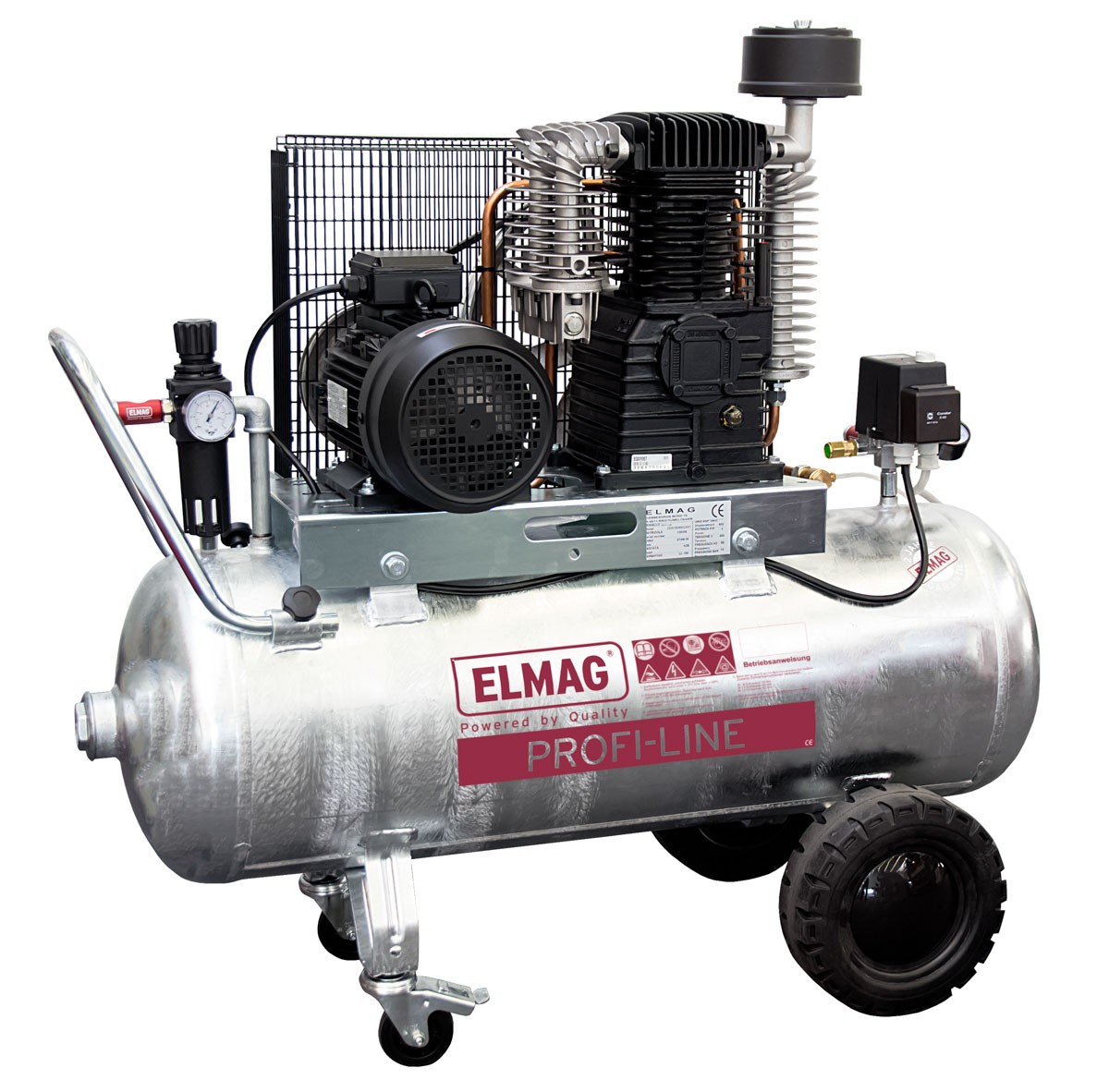

ELMAG PL-Z 600/10/100D Compressor PROFI-LINE 'ZINCED'

High-performance device
The PL-Z 600/10/100 D air compressor is a high-performance device with a clearly structured technical design for maximum efficiency.

All details meet requirements
Every detail of the PL-Z 600/10/10 D air compressor fulfils the requirements of a reliable compressed air generator for trade and industry.

Impressive wide selection
Offer a wide selection of flexible or stationary devices for different types of organisation.

Unique air cooling system
Large intercoolers and aftercoolers made of die-cast aluminium and a long copper cooling line running behind the fan wheel ensure an air inlet temperature in the boiler of an extremely low 50 - 60 °C after one hour of continuous operation.

Advantages:
- Low condensation
- High compressed air quality
- Problem-free compressed air filtration

PROFI-LINE PL 600
- Mobile, compact design
- Available in 10 or 15 bar versions
- Perfectly suited for installation in service vehicles
- Optional: Available with vibration damper instead of wheels
- NEW: Now also with inside & outside hot-dip galvanised DL tank

Tech-Info: Two-stage piston compressors
A two-stage compressor has two cylinders arranged in series, which compress the air to the final pressure in two stages. In between, the compressed air is cooled with air. This improves efficiency, while at the same time a higher pressure can be achieved than with a single-stage compressor.

Effective delivery quantity	420 l/min
Delivery quantity according to VDMA 4362, measured at 80 % of the maximum pressure	yes
Suction capacity	600 l/min
Max. Operating pressure	10 bar
Oil lubricated	yes
Container volume	100 l
Execution	mobile
Rated motor power	4 / 5,4 kW / hp
Electrical connection Voltage / frequency	400/50 V/Hz
Sound pressure level (4 m)	78 dB(A)
Compressor speed	1360 rpm
Air outlet	1/2 inch
Length	1250 mm
Width	550 mm
Height	1150 mm
Weight	95 kg
