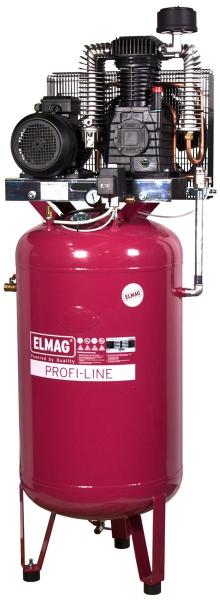

Product highlights ELMAG PL-V 840/10/270D Compressor PROFI-LINE
High-performance device
The PLV 840/10/270 D air compressor is a high-performance device with a clearly structured technical design for maximum efficiency.
All details meet requirements
Every detail of the PLV 840/10/270 D air compressor fulfils the requirements of a reliable compressed air generator for trade and industry.
Impressive wide selection
Offer a wide selection of flexible or stationary devices for different types of organisation.

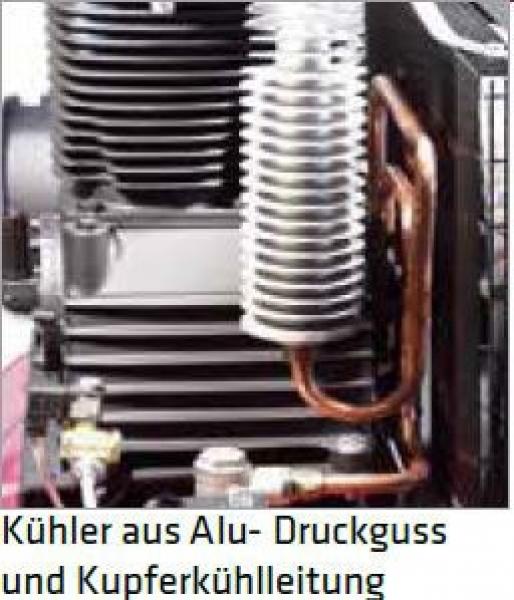

Unique air cooling system
Large intercoolers and aftercoolers made of die-cast aluminium and a long copper cooling line running behind the fan wheel ensure an air inlet temperature into the boiler of an extremely low 50 - 60 °C after one hour of continuous operation.
Advantages:
- Low condensation
- High compressed air quality
- Problem-free compressed air filtration
Whether horizontal or vertical design - PROFI-LINE compressors fulfil the highest demands on modern compressed air generators:
- Robust design and proven technology for high operational reliability
- Optimised efficiency - very good cost/benefit ratio - increased cost-effectiveness
- low speed
- 1,100 to 1,390 rpm
- low-noise operation: 76-78 dB(A), low wear
- Low compressed air temperature:
- Air inlet temperature into the boiler 50°C to max. 60°C
- Low condensation development
- Very good compressed air quality
Tech info: Two-stage piston compressors
A two-stage compressor has two cylinders arranged in series, which compress the air to the final pressure in two stages. In between, the compressed air is cooled with air. This improves efficiency, while at the same time a higher pressure can be achieved than with a single-stage compressor.
Technical facts ELMAG PL-V 840/10/270D Compressor PROFI-LINE
- Three-phase 400 volt drive with motor protection relay
- Indirect drive by means of V-belt
- Compressor cylinder made of grey cast iron
- High-performance precision pistons
- Two-cylinder unit
- Intercooler and aftercooler made of die-cast aluminium with large, deep cooling fins
- Additional cooling copper pipe coil
- Large cast fan wheel
- Non-return valve, safety valve ...

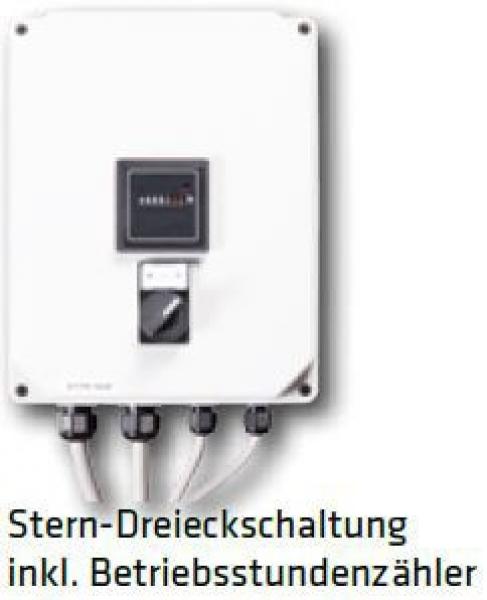

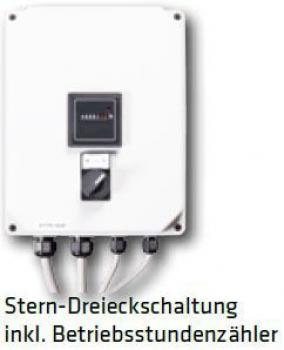

- Operating hours counter
- Horizontal / vertical on vibration dampers
- Air outlet with ball valve
- 10-year boiler guarantee
Technical data ELMAG PL-V 840/10/270D Compressor PROFI-LINE
| Effective delivery quantity |
595 l/min |
| Delivery quantity according to VDMA 4362, measured at 80 % of the maximum pressure |
yes |
| Suction capacity |
850 l/min |
| Max. Operating pressure |
10 bar |
| Oil lubricated |
yes |
| Container volume |
270 l |
| Execution |
stationary / vertical |
| Rated motor power |
5,5 / 7,5 kW / hp |
| Electrical connection Voltage / frequency |
400/50 V/Hz |
| Sound pressure level (4 m) |
76 dB(A) |
| Compressor speed |
1150 rpm |
| Air outlet |
3/4 inch |
| Length |
750 mm |
| Width |
600 mm |
| Height |
1950 mm |
| Weight |
185 kg |
