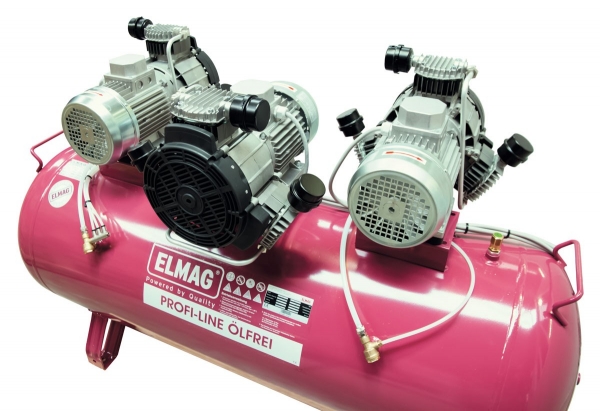

Product Highlights ELMAG PL 990/10/200 D Compressor PROFI-LINE 'OIL-FREE'
PROFI-LINE SERIES - OIL-FREE
Oil-free piston compressors are the right choice when clean, oil-free compressed air is required. The Profi-Line series guarantees a long service life, with high performance and low noise even after intensive use. By eliminating the need for oil level checks and oil changes, these units are virtually maintenance-free. They have an operating pressure of up to 10 bar and deliver compressed air that is 100 % free of oil residues. 1 to 3 compressor units on 50-270 litre tank sizes are possible!
AREAS OF APPLICATION
- Dental, laboratory
- Food industry
- Plastics processing
- pharmaceutical industry
- Textile processing
Technical facts ELMAG PL 990/10/200 D Compressor PROFI-LINE 'OIL-FREE
Standard equipment:
- 1 safety venting couplings
- CONDOR pressure switch
- 4 vibration dampers for stationary installation

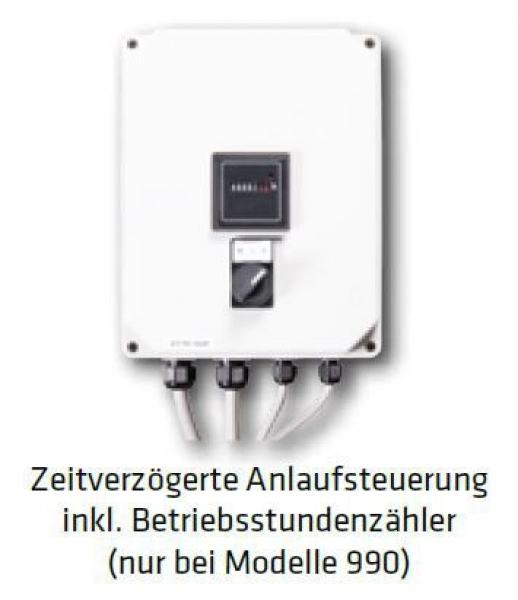

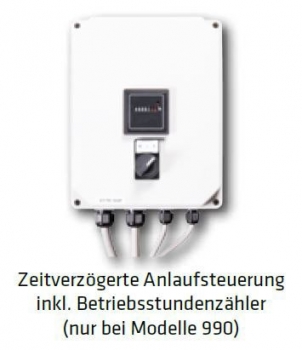

- Time-delayed start-up control incl. operating hours counter
- Direct-driven 3-cylinder unit
- Low speed of ONLY 1,350 rpm, high duty cycle
- Low noise level ONLY 69-72 dB(A)
- In tripe design incl. start-up control and operating hours counter
Options:
- Refrigeration dryer
- Adsorption dryer
- DL-filter
Technical data ELMAG PL 990/10/200 D Compressor PROFI-LINE 'OIL-FREE
- Effective delivery rate: 600 l/min
- Suction capacity: 990 l/min
- Max. Operating pressure: 10 bar
- Number of cylinders: 3+3+3
- Engine power: 3x2.2 kW / 3+3+3 hp
- Voltage/frequency: 400 V / 50 Hz
- Sound pressure level (4 m): 72 dB(A)
- Compressor speed: 1,350 rpm
- Dimensions: 150x52x91 cm
- Weight: 115 kg
