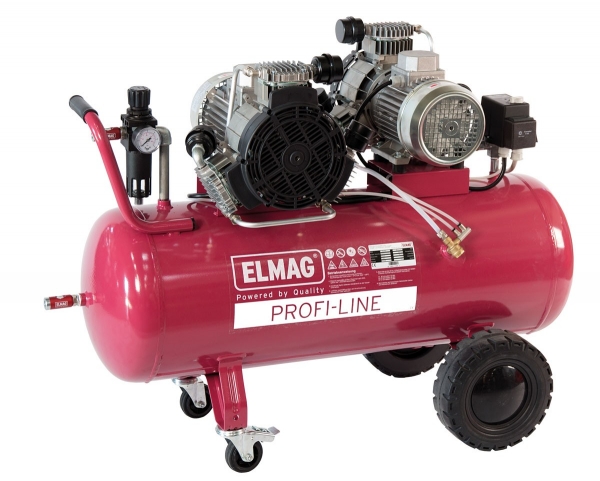

ELMAG PL 660/10/100 D Compressor PROFI-LINE 'OIL-FREE'
Product Highlights ELMAG PL 660/10/100 D Compressor PROFI-LINE 'OIL-FREE'
PROFI-LINE SERIES - OIL-FREE
Oil-free piston compressors are the right choice when clean, oil-free compressed air is required. The Profi-Line series guarantees a long service life, with high performance and low noise even after intensive use. By eliminating the need for oil level checks and oil changes, these units are virtually maintenance-free. They have an operating pressure of up to 10 bar and deliver compressed air that is 100 % free of oil residues. 1 to 3 compressor units on 50-270 litre tank sizes are possible!
AREAS OF APPLICATION
- Dental, laboratory
- Food industry
- Plastics processing
- pharmaceutical industry
- Textile processing
Oil-free piston compressors are the right choice when clean, oil-free compressed air is required. The Profi-Line series guarantees a long service life, with high performance and low noise even after intensive use. By eliminating the need for oil level checks and oil changes, these units are virtually maintenance-free. They have an operating pressure of up to 10 bar and deliver compressed air that is 100 % free of oil residues. 1 to 3 compressor units on 50-270 litre tank sizes are possible!
AREAS OF APPLICATION
- Dental, laboratory
- Food industry
- Plastics processing
- pharmaceutical industry
- Textile processing
Technical facts ELMAG PL 660/10/100 D Compressor PROFI-LINE 'OIL-FREE
Standard equipment:
- 2 safety bleed couplings
- Swivel castors with brake
- Solid rubber wheels
- CONDOR pressure switch
- ELMAG filter regulator
- Direct-driven 3-cylinder unit
- Low speed of ONLY 1,350 rpm, high duty cycle
- Low noise level ONLY 69-72 dB(A)
- In tandem design with 400 V version and incl. operating hours counter
Options:
- Refrigeration dryer
- Adsorption dryer
- DL-filter
- 2 safety bleed couplings
- Swivel castors with brake
- Solid rubber wheels
- CONDOR pressure switch
- ELMAG filter regulator
- Direct-driven 3-cylinder unit
- Low speed of ONLY 1,350 rpm, high duty cycle
- Low noise level ONLY 69-72 dB(A)
- In tandem design with 400 V version and incl. operating hours counter
Options:
- Refrigeration dryer
- Adsorption dryer
- DL-filter
Technical data ELMAG PL 660/10/100 D Compressor PROFI-LINE 'OIL-FREE
- Effective delivery rate: 400 l/min
- Suction capacity: 660 l/min
- Max. Operating pressure: 10 bar
- Number of cylinders: 3+3
- Engine power: 2x2.2 kW / 3+3 hp
- Voltage/frequency: 400 V / 50 Hz
- Sound pressure level (4 m): 70 dB(A)
- Compressor speed: 1,350 rpm
- Dimensions: 155x65x125 cm
- Weight: 102 kg
