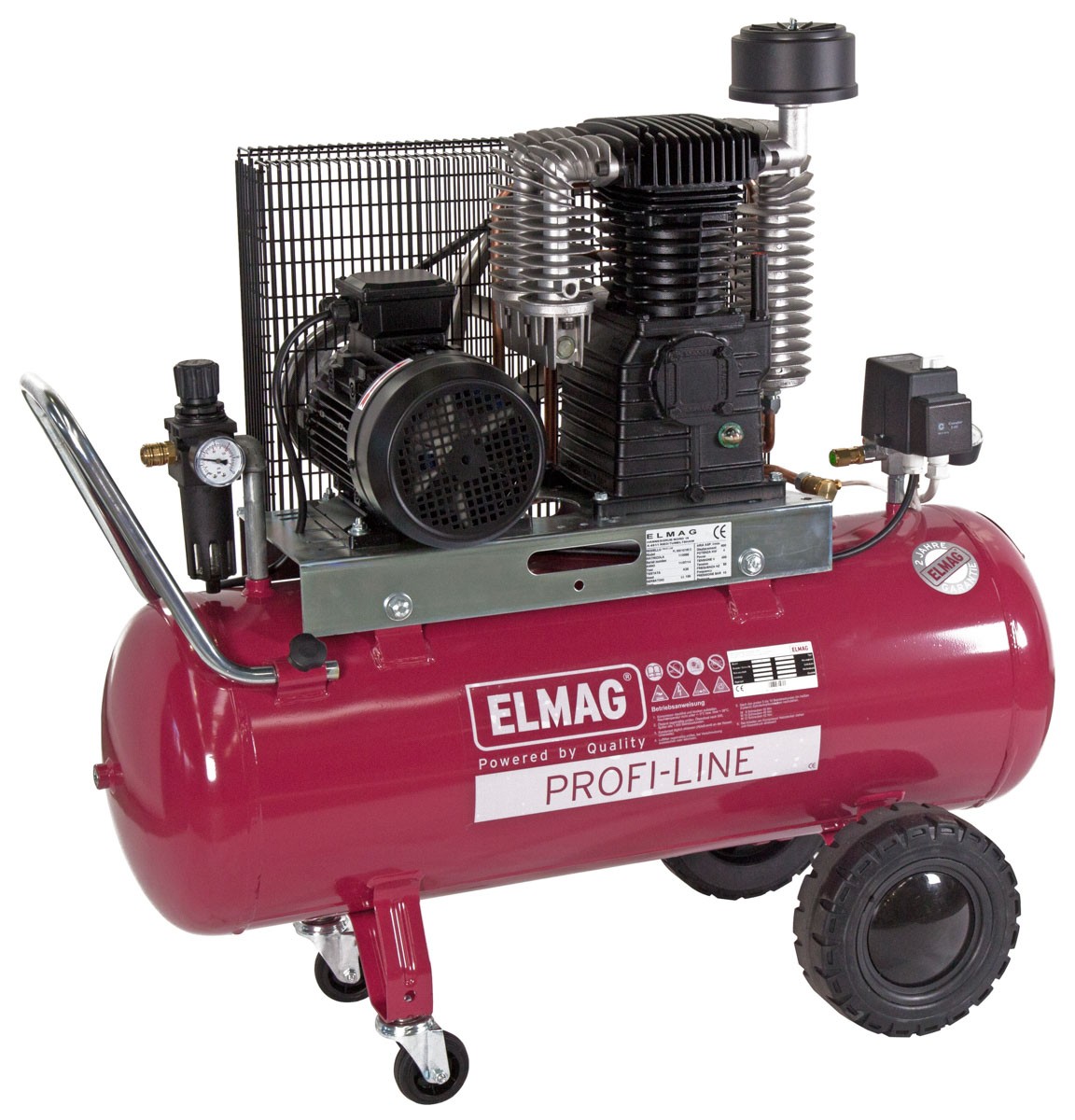

ELMAG PL 600/10/100 D Compressor PROFI-LINE

HIGH PERFORMANCE UNIT
The PL 600/10/100 D air compressor is a high-performance unit with a clearly structured technical design for maximum efficiency.

ALL DETAILS IN LINE WITH REQUIREMENTS
The PL 600/10/100 D air compressor meets the requirements of a reliable compressed air generator for trade and industry in every detail.

A WIDE SELECTION IS CONVINCING
Offer a wide selection of flexible or stationary units for different types of organisation.

UNIQUE AIR COOLING SYSTEM
Large die-cast aluminium intercoolers and aftercoolers, plus a long copper cooling line running behind the fan wheel, ensure an air inlet temperature into the boiler of an extremely low 50 - 60 °C after one hour of continuous operation.

Advantages:
- Low condensation
- High compressed air quality
- Problem-free compressed air filtration

PROFI-LINE PL 600
- Mobile compact design
- Available in 10 or 15 bar versions
- Perfectly suited for installation in service vehicles
- Optional: Available with vibration damper instead of wheels
- NEW: Now also available with inside & outside hot-dip galvanised DL tank

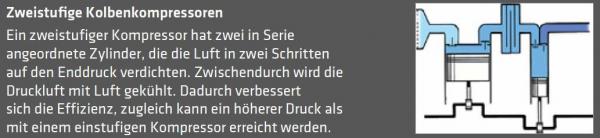

TECH-INFO: TWO-STAGE PISTON COMPRESSORS
A two-stage compressor has two cylinders arranged in series, which compress the air to the final pressure in two stages. In between, the compressed air is cooled with air. This improves efficiency, and at the same time a higher pressure can be achieved than with a single-stage compressor.
