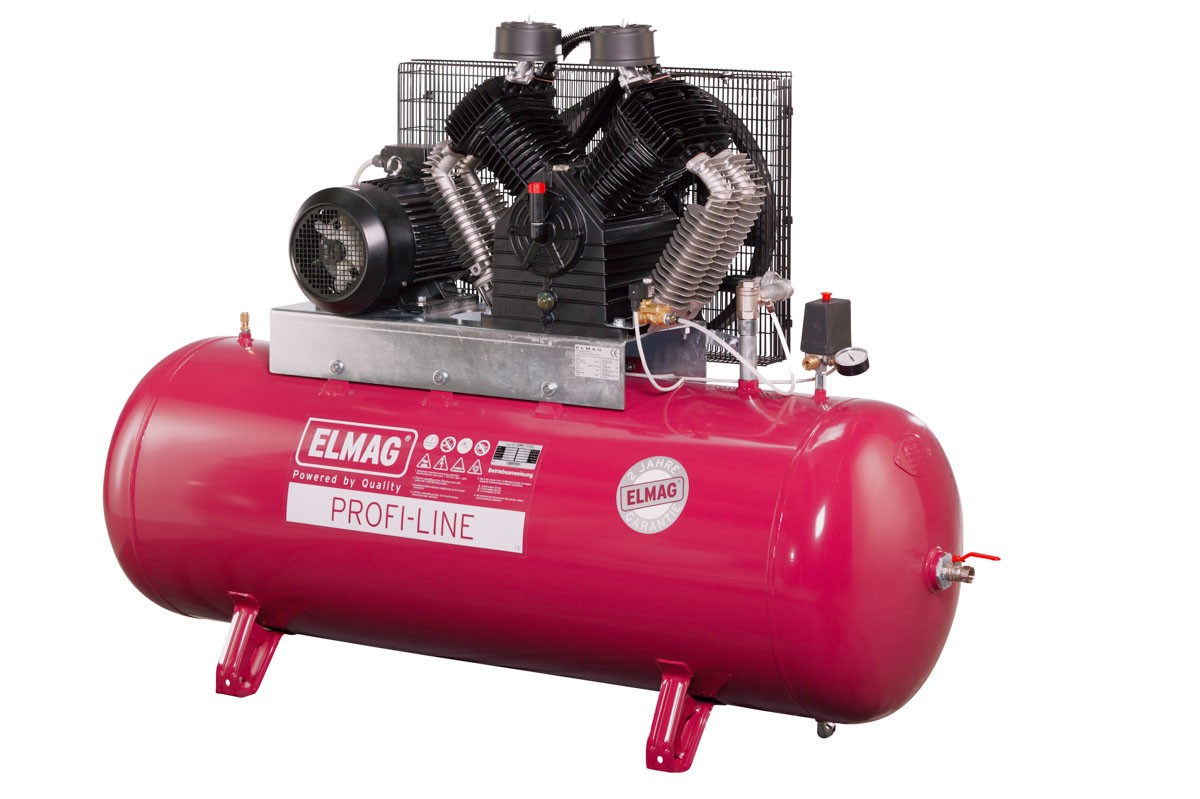

Product Highlights ELMAG PL 1600/10/500 D, with star delta unit Compressor PROFI-LINE
HIGH-PERFORMANCE UNIT
The PL 1600/10/500 D air compressor is a high-performance unit with a clearly structured technical design for maximum efficiency.
ALL DETAILS IN LINE WITH REQUIREMENTS
The PL 600/10/50 D air compressor meets the requirements of a reliable compressed air generator for trade and industry in every detail.
A WIDE SELECTION IS CONVINCING
Offer a wide selection of flexible or stationary units for different types of organisation.
UNIQUE AIR COOLING SYSTEM
Large die-cast aluminium intercoolers and aftercoolers, plus a long copper cooling line running behind the fan wheel, ensure an air inlet temperature into the boiler of an extremely low 50 - 60 °C after one hour of continuous operation.
Advantages:
- Low condensation
- High compressed air quality
- Problem-free compressed air filtration

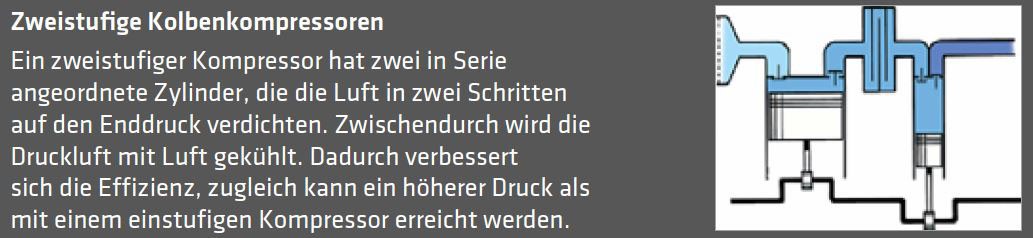

TECH-INFO: TWO-STAGE PISTON COMPRESSORS
A two-stage compressor has two cylinders arranged in series, which compress the air in two steps to the final pressure. In between, the compressed air is cooled with air. This improves efficiency, and at the same time a higher pressure can be achieved than with a single-stage compressor.
Technical facts ELMAG PL 1600/10/500 D, with star delta system Compressor PROFI-LINE
- Three-phase drive 400 volts with motor protection relay

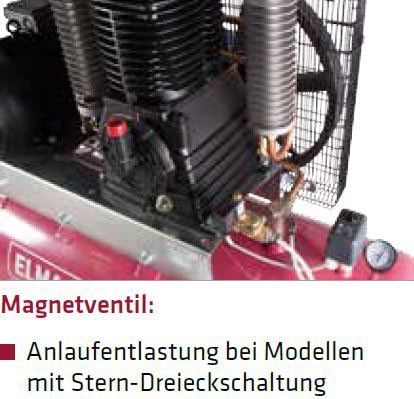

- Automatic star-delta circuit incl. solenoid valve for starting power
- Indirect drive by means of V-belt
- Compressor cylinder made of grey cast iron
- High-performance precision piston
- V-4 cylinder
- Intercooler and aftercooler made of die-cast aluminium with large-area, deep cooling fins
- Auxiliary cooling Copper tube coil
- Large cast iron impeller
- Non-return valve, safety valve ...

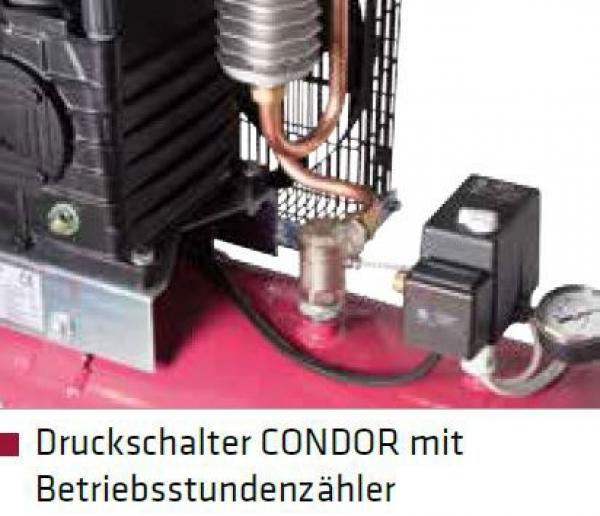

- Operating hours counter

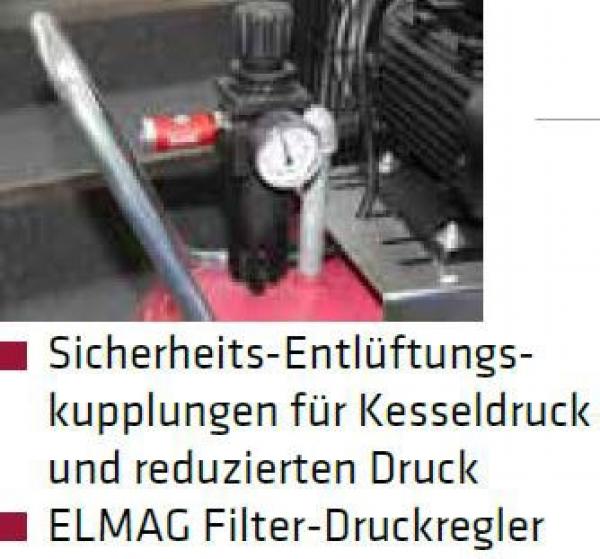

- Safety breather couplings
- Horizontal / vertical on vibration dampers
- Air outlet with ball valve
- 10 years boiler warranty
Technical data ELMAG PL 1600/10/500 D, with star delta system Compressor PROFI-LINE
- Effective delivery rate: 1,120 l/min
- Suction capacity: 1,600 l/min
- Max. Operating pressure: 10 bar
- Oil lubricated: Yes
- Tank volume: 500 l
- Design: stationary / horizontal
- Nominal engine power: 11 kW / 15 PS
- Electrical connection voltage / frequency: 400/50 V/Hz
- Sound pressure level (4 m): 78 dB(A)
- Compressor speed: 1,100 rpm
- Air outlet: 1 inch
- Length: 195 cm
- Width: 60 cm
- Height: 140 cm
- Weight: 350 kg
