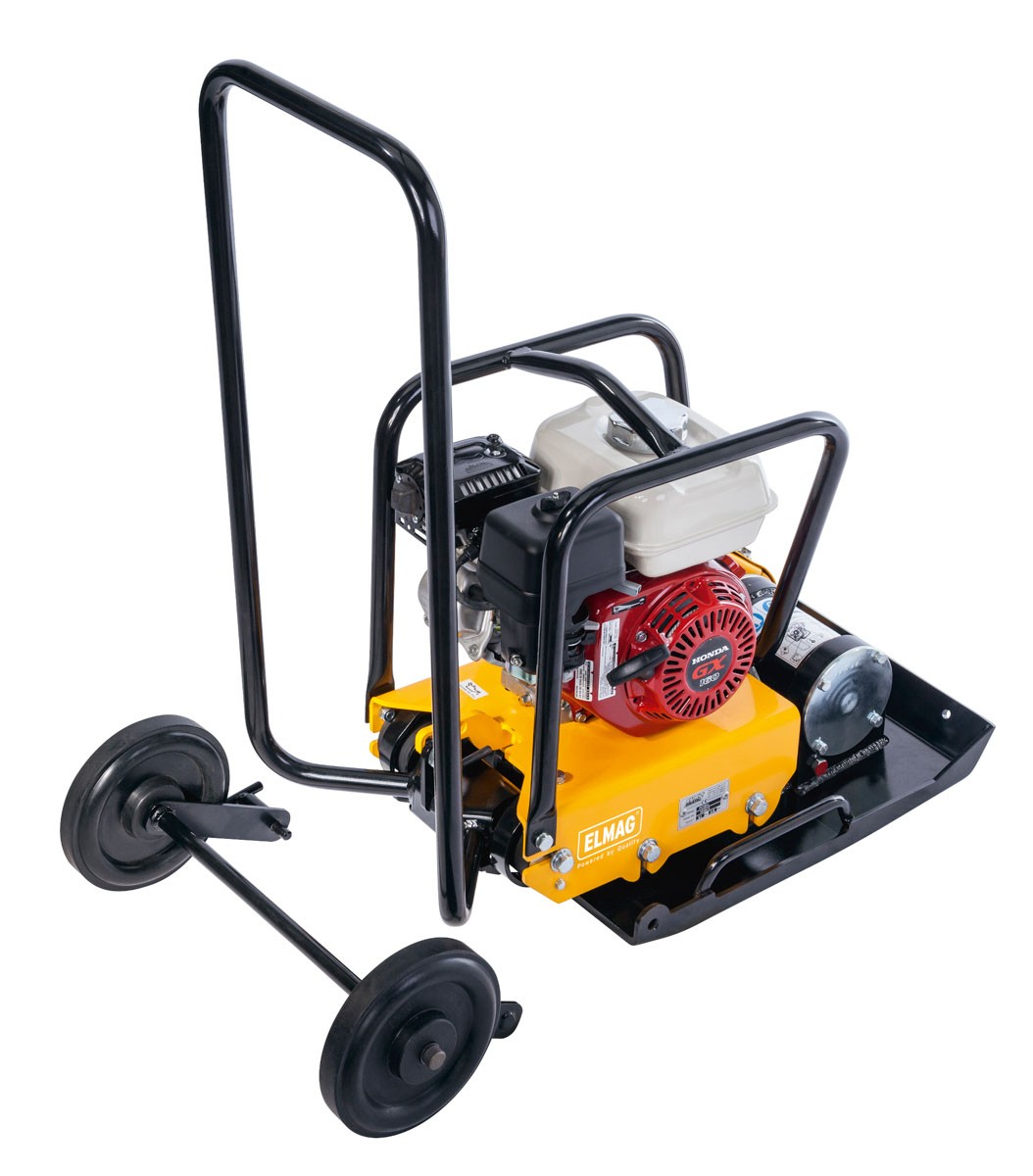

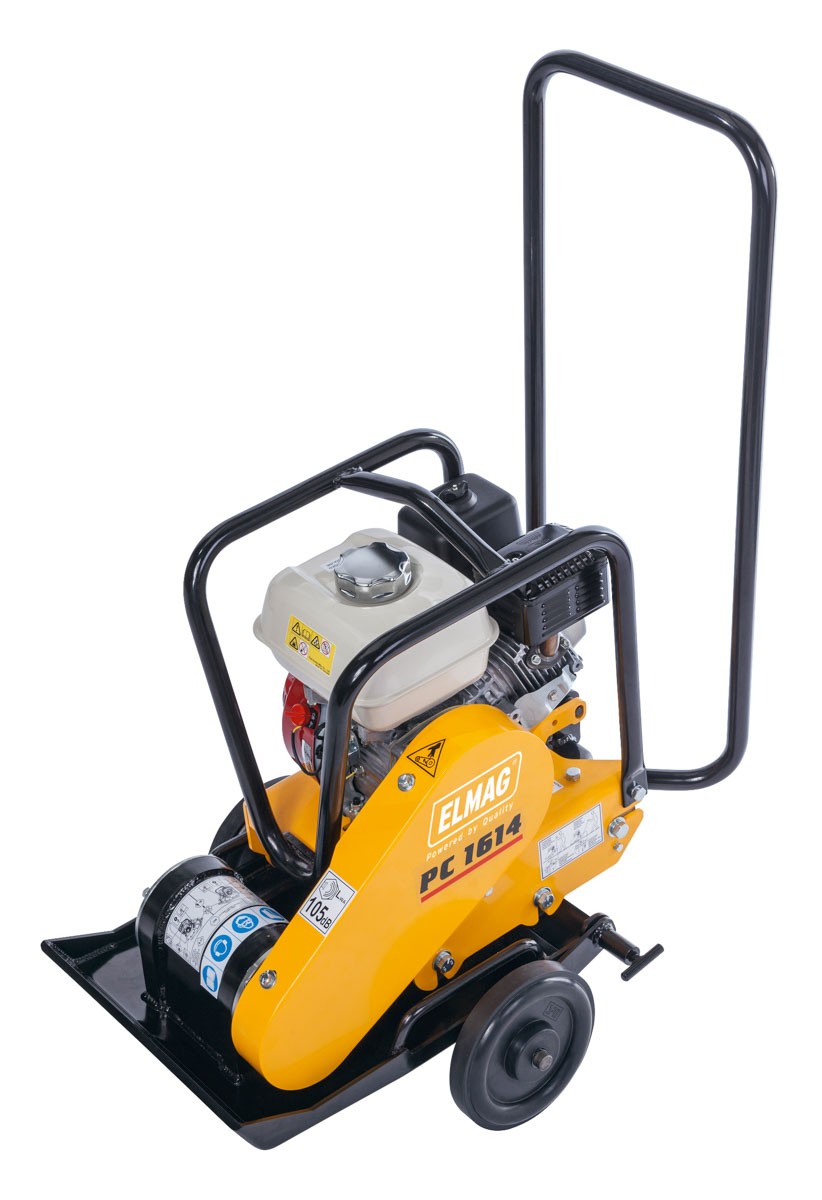

Product highlights ELMAG PCB16-50 vibratory plate
VIBRATORY PLATES, FORWARD RUNNING
The PC series vibratory plates are designed for all types of soil cultivation. Every gardener, landscaper and construction site is served with this machine series. This machine is also used for asphalt works (with water tank). The different sizes can be selected according to the application.
SPECIAL ACCESSORIES
- Water tank set
- Vulkolan mat incl. holder
Technical facts ELMAG PCB16-50 Vibratory plate
- Perfect compressors for a wide range of applications
- High compaction combined with simple operation
- Suitable for compacting granular and mixed material, as well as hot / cold asphalt or concrete stone
- Machine height of only 67 cm (with folded down guard rail). Fits in every estate car.
- Standard with wheel set (except model PC1010)
- Optional: Vulkolan mat to protect paving stones & water sprinkler system for asphalt
Technical data ELMAG PCB16-50 Vibratory plate
- Centrifugal force: 16 kN
- Max. Speed: 26 m/min
- Surface compaction: 780 m²/h
- Engine type: GX160
- Power: 5 PS
- plate size: 500x500 mm
- Optional water tank: 11 l
- Vibration frequency: 93 Hz
- Sound level: 102 LWA
- Weight: 89 kg
Highest quality of ELMAG machines
Benefit from a 2-year warranty from ELMAG
Accessories for ELMAG machines on request
