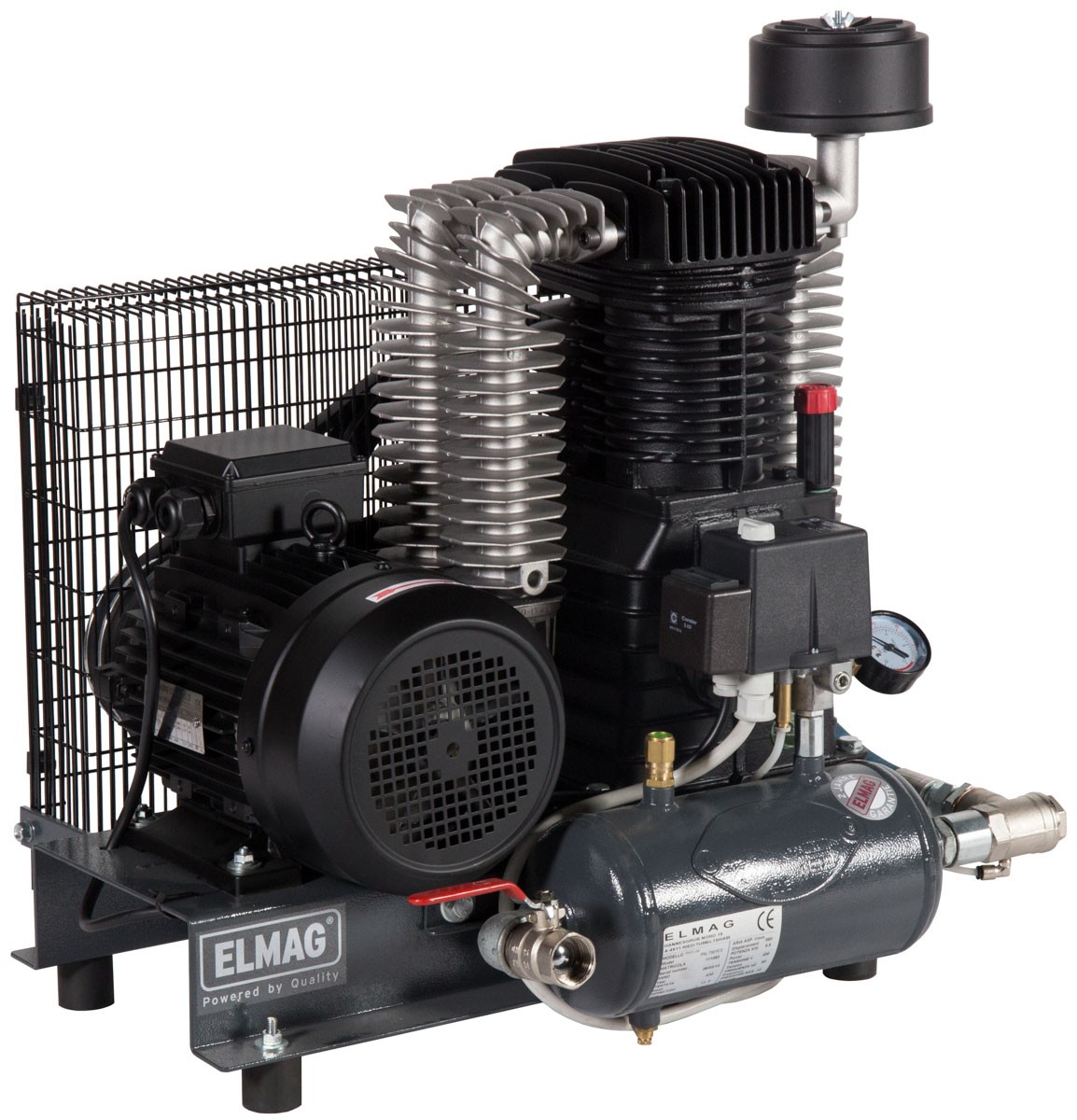

Product Highlights ELMAG PAL 730/10 D Pallet unit PROFI-LINE
PRODUCT DESCRIPTION
ELMAG® Profi-Line pallet units are designed for the flexible construction of a compressed air supply system. Due to their robust industrial quality and modular applicability, pallet units are an economically outstanding solution for the systematic construction of a central compressed air supply, the extension of an existing system.
PROFI-LINE FEATURES
- V-belt drive with generous transmission ratio and optimised efficiency
- Low speed 800 - 1,000 rpm
- Low-noise operation 74 - 77 dB(A)
- Low compressed air temperature
- Low condensate formation, very good compressed air quality
Technical facts ELMAG PAL 730/10 D PROFI-LINE pallet unit
- Max. operating pressure 10 bar
- Three-phase drive 400 volts, 50 hertz, with motor protection relay

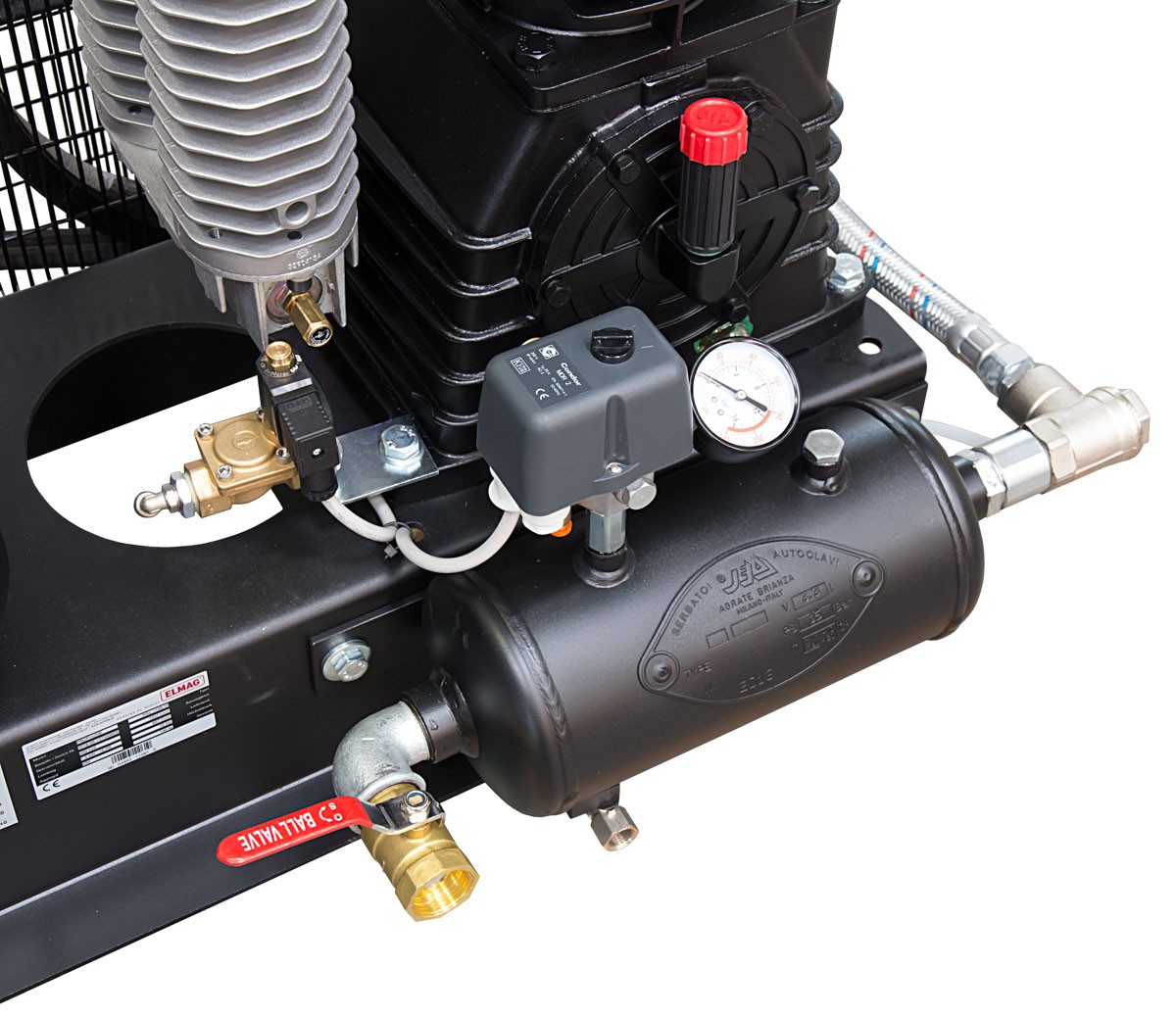

- Solenoid valve for start-up relief, contactor included
- Indirect, optimised drive of the pressure generator
- Robust compressor cylinder made of grey cast iron
- Triple ringed high-performance precision piston
- Two-stage compressing two-cylinder compressors
- Intercooler and aftercooler made of die-cast aluminium with large-area, deep cooling fins
- Generously dimensioned, flow-optimised cast-iron fan wheel, for optimum cooling of the unit
Technical data ELMAG PAL 730/10 D PROFI-LINE pallet unit
- Effective delivery rate: 582 l/min
- Suction capacity: 727 l/min
- Max. Operating pressure: 10 bar
- Oil lubricated: Yes
- Nominal engine power: 5.5 kW / 7.5 PS
- Electrical connection voltage / frequency: 400 V / 50 Hz V/Hz
- Sound pressure level (4 m): 75 dB(A)
- Compressor speed: 1,000 rpm
- Air outlet: 3/4 inch
- Length: 80 cm
- Width: 50 cm
- Height: 90 cm
- Weight: 92 kg
