ELMAG multifunctional welding inverter P3S 1825M 2L ECO-SET

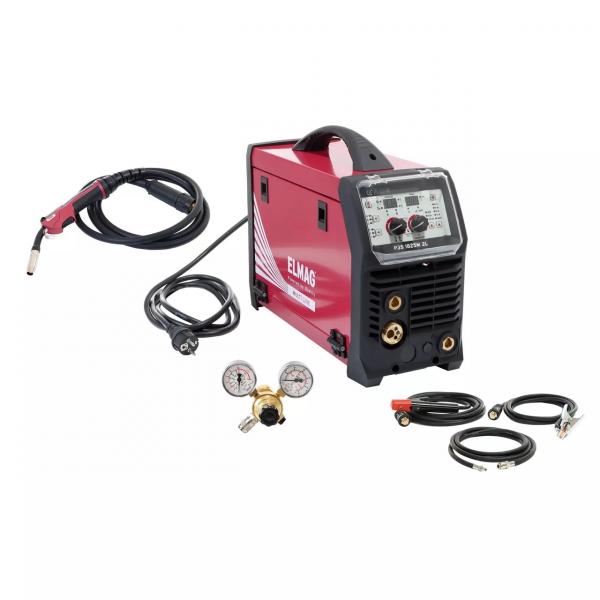

ELMAG multifunctional welding inverter P3S 1825M 2L ECO-SET ‘Multi Line’, MIG/MAG, MMA, TIG, portable, consisting of:
1 pc. welding inverter P3S 1825M 2L art. no.: 15203
1 pc. hose package MBC 15/3m art. no.: 15710
1 pc. pressure reducer for steel bottle Item no.: 54106


Standard equipment ELMAG multifunctional welding inverter P3S 1825M 2L ECO-SET

- Hose package MBC 15/3m
- Earth cable 25mm²/3m
- Electrode holder welding cable 25mm²/4m
- Gas hose incl. Quick Fit quick connector DN5/2.5m
- Pressure regulator with 2 pressure gauges incl. Quick Fit coupling DN5
- Feed rolls for 0.6/0.8/0.9/1.0mm wire


Application examples ELMAG multifunctional welding inverter P3S 1825M 2L ECO-SET

- Car repair shops
- Repair/assembly workshops Tinsmiths
- Training workshops
- Hobby workshops


Technical facts ELMAG multifunctional welding inverter P3S 1825M 2L ECO-SET

• Portable small multifunctional welding inverter
• 3 welding processes in one device, MIG/MAG, MMA/E-Hand & LIFT-TIG (DC)
• Synergic operation in MAG process for steel or manual operation
• 180 Amp max. welding current
• 25% duty cycle @ 180A, infinitely variable 20-180A
• Mono-phase 1~230V, compliant with ÖKO-Design directive as energy efficiency > 85%
• 2-roller drive incl. gear rim connection to pressure roller made of die-cast aluminium
• L Housing size for welding wire reels Ø & weight: Max. Ø 200 mm / max. 5kg
• Incl. 2-cycle, 4-cycle & spot welding function
• In MIG/MAG mode: Inductance, BBT (BurnBackTime) wire burn-back and in MMA mode: Hot-Start & Arc-Force adjustable
• Including original ELMAG hose package MBC 15/3m
• With optional accessories and polarity reversal, shielding gas-free cored wire & LIFT TIG (DC) welding also possible



Technical data ELMAG multifunctional welding inverter P3S 1825M 2L ECO-SET

Material thickness	MIG/MAG: 0,8-4 mm | MMA & WIG: 1,5-6 mm
Steel wire diameter	0,6-1 mm
Cored wire diameter	0,9 mm
Welding rod reel diameter	200 mm
Welding rod roll weight	5 kg
Welding electrode diameter	1,6 - 4,0 mm
Welding current setting range	MIG/MAG: 20-180 A | MMA & WIG: 10-180 A
Duty cycle (10 min at 40°C) at max. welding current	25 / 180 / % / A
Open circuit voltage	69 V
Mains connection / phases	230 / 1 / V / ~
Mains current tolerance	+10/-10 %
Mains fuse inert	16 AT
Protection class (IP)	21S
Efficiency	85 %
Power consumption in idle mode	27 W
Power consumption l1 max. / l1 eff.	MIG/MAG: 28/14 A | MMA & WIG: 33/16 & 25/12 A
Connector plug	Schuko 16 A
Depth	480 mm
Height	360 mm
Weight	11.5 kg
Feed drive	2 rolls

Highest quality machines from ELMAG
Benefit from a 2-year ELMAG guarantee

Accessories for ELMAG machines on request
