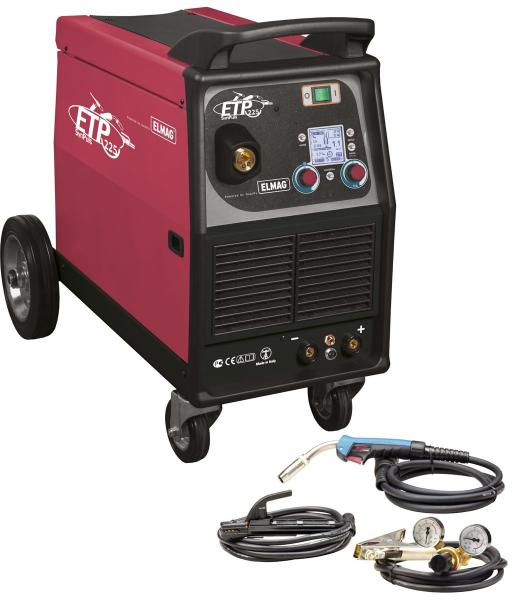

ELMAG MULTIFUNCTION WELDING INVERTER, MOVABLE - ALU-SET

Field of application

Flexible use for MIG/MAG, TIG DC and MMA. Continuous or pulsed operation (MIG/MAG / TIG), ideal e.g. for thin aluminium, stainless steel and precision seams.

MIG/MAG synergy programmes and functions:

19 optimised MIG/MAG synergy programmes, simple selection according to material type, gas type and wire diameter.
- Operating modes normal, SYN or PULSED 2- or 4-stroke, spot welding time 0 - 10 s, no gas/filler wire welding
- MOTOR SLOPE: Soft-start wire feed 0 - 1.5 s
- ARC CONTROL: Arc throttling 0 - 11 (Inductance)
- BBT: Wire burnback 1 - 10
- POST GAS: GAs post-flow time 0 - 5 s
- 4-cycle: END POWER 30 - 100 %, 0.2 - 2 s for crater filling

TIG functions

- LIFT TIG ignition function
- Operating modes normal or TIG IMPULSE, 2- or 4-cycle
- 4-cycle: PULSE FREQ 20 - 250 Hz, TIG BALANCE 20 - 80 %, TIG 2-VALUE, SLOPE UP/-DOWN 0 - 10/20 s, END POWER 5 - 200 A, POST GAS 0 - 5 s

MMA functions:

- HOT START+ and ANTI STICK
- Microprocessor control with 3.3' digital display
- VRD: Energy-saving device with low open-circuit voltage
- GEN POWER: Operation via power generator possible

Application examples

- Car repair shops
- Repair/assembly sector
- Tinsmiths
- Customer service
Metal, conservatory & window construction

materials

- steel
- CrNi
- aluminium
- MIG brazing

ALU-SET:

Hose package MB 25/3m, earth cable 3m, pressure regulator, E-holder cable 4m, PTFE core 3m, various feed rolls, AlSi welding wire 1.0 mm / 7 kg, steel cylinder 20 lt. / 200 bar argon
