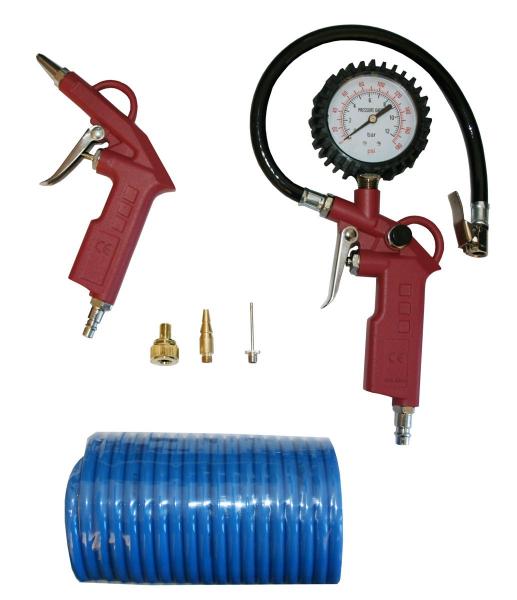

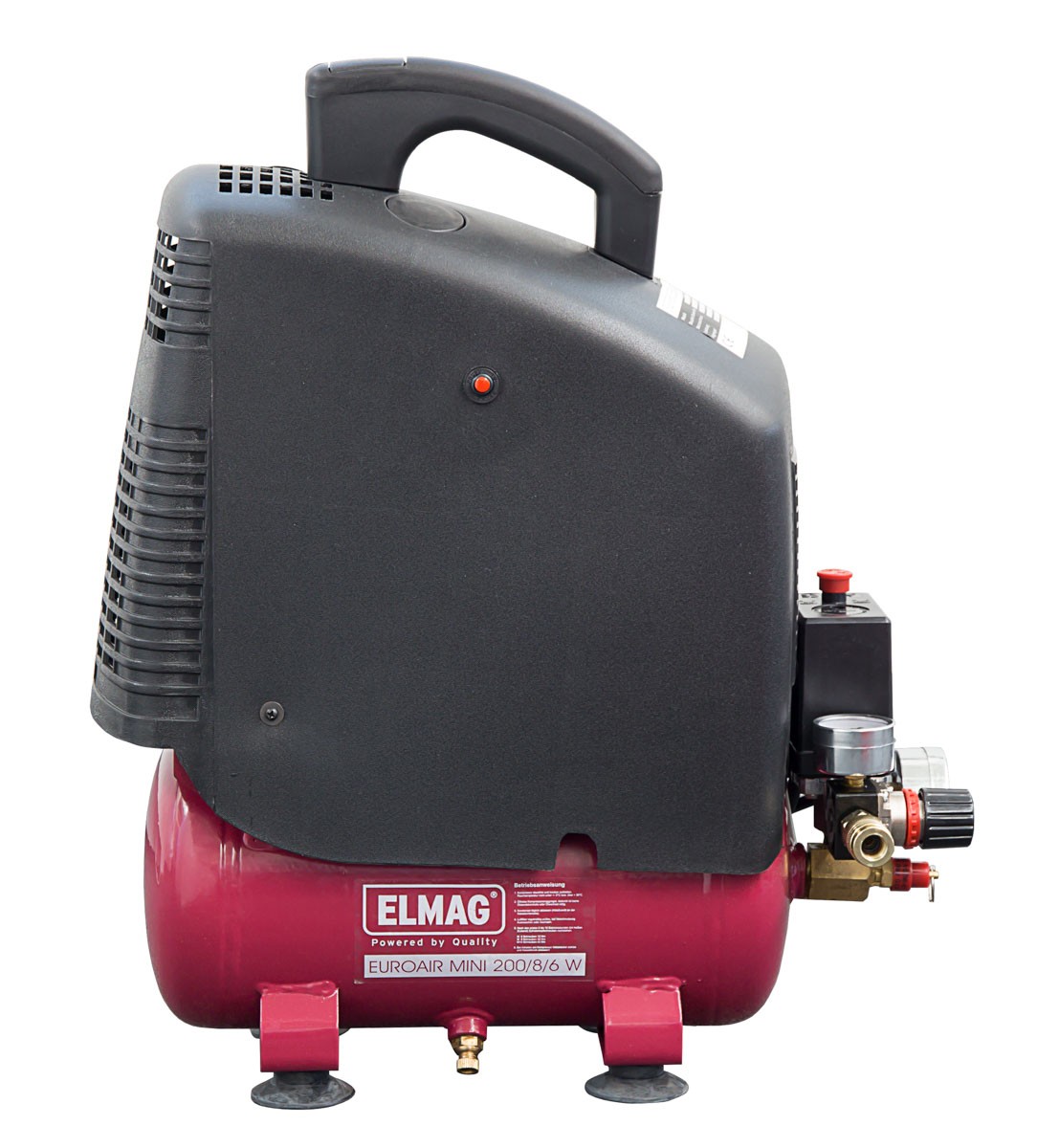

ELMAG MINI 200/8/6 W Compressor EUROAIR Set

Technical facts ELMAG MINI 200/8/6 W Compressor EUROAIR Set

• High-quality DIY compressor
• Oil-free 1-cylinder unit
• Portable, light and handy
• Comes standard with pressure switch, pressure regulator with manometer and quick coupling

Technical data ELMAG MINI 200/8/6 W compressor EUROAIR Set

• Effective delivery rate: 100 l/min
• Delivery rate according to VDMA 4362, measured at 80 % of the maximum pressure: No
• Suction capacity: 193 l/min
• Max. Operating pressure: 8 bar
• Oil lubricated: -
• Tank volume: 6 l
• Nominal motor power: 1.5 kW / 2 PS
• Electrical connection Voltage / frequency: 230 V / 50 Hz
• Sound pressure level (4 m): 75 dB(A)
• Compressor speed: 2,850 rpm
• Length: 45 cm
• Width: 19 cm
• Height: 51 cm
• Weight: 16 kg
