water-cooled incl. cooling unit on transport trolley, external wire feeder WF-04 OTCE with 2 m intermediate hose package, earth cable 90 qmm/4 m with clamp, pressure regulator MAXY incl. 2 pressure gauges, wire feed rolls 1.0/1.2 mm for steel !!! 30-400 amps, ED 100% at 400 amps, incl. 5 litres of coolant for torch cooling
(without hose package)
CPTX-I INDUSTRIAL devices with inverter technology
CPTX-INDUSTRY units offer maximum welding performance at 100% duty cycle in the MIG/MAG (up to max. 500 amps) and DC STICK/MMA/E manual range (up to max. 400 amps), are highly resilient in flexible continuous operation and have a sufficient range of characteristic curves for processing fine to heavy plates in the steel, stainless steel and chrome-nickel range.
Synergy programme for perfect welding
In addition to standard programs such as 2-cycle, 4-cycle, 4-cycle with start & end crater current, 4-cycle with end crater current repetition and spot welding function, the arc welder also has access to proven synergy programs that speed up the setting process and optimise the wire feed.
The CPTX fulfils the highest demands on the repeatability of welding processes and enables welding parameters to be clearly defined for inclusion in a quality assurance system.
On the software side, the series extension offers both solid wire and cored wire programmes as well as the option of saving up to 30 individual jobs.
The machines are primarily orientated towards the energy-saving EU Directive 2009/125/EC and the corresponding 'Ecodesign requirements for welding equipment'.
Flexible freedom for arc welders

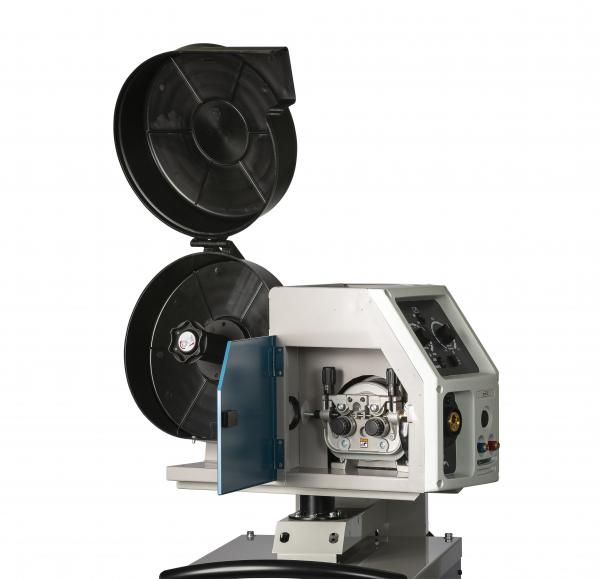

The feed and control unit of the CPTX-I models is designed to be rotatable, can be easily removed for positioning on the welding table and is equipped with a 2 m intermediate hosepack. Reaches of up to 20 m can be achieved with an additionally available intermediate hose package. The additional equipment with a wheel set is particularly ideal for long welding distances in steel construction, on assembly lines and on construction sites.
Hosepack with liquid cooling
A hosepack with liquid cooling provides optimum cooling of the welding torch even at maximum welding power and duty cycle. Ideal for use in series production.

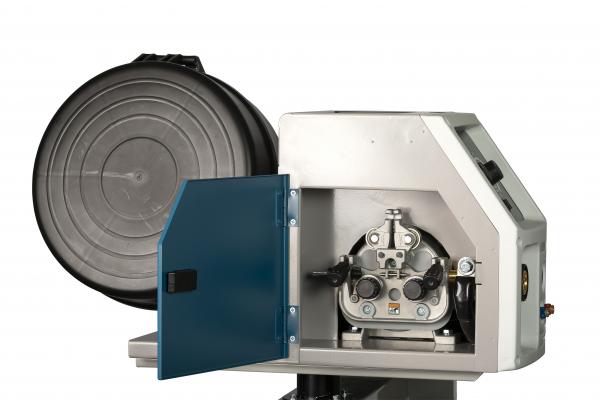

Feed unit:
All CPTX-I models:
- Powerful wire feed motor
- Feed mechanism made of ALU
- Four drive rollers
- Two interchangeable feed rollers for different wire thicknesses
Application examples
- Mechanical engineering
- Plant construction
- Container construction
- Steel construction
- Metalworking shops
- Forging
- Agriculture
materials
- steel
- CrNi
- Aluminium (limited)
CPTX-I standard equipment
- CPTX-I 400 2W, 500 2W
- Intermediate hose package 2m
- Earth terminal with 4m earth cable 95 mm² and welding cable connector Ø 13 mm, 50/70/95 mm²
- Pressure regulator with cylinder pressure gauge and flow meter
- Feed roller Ø 30 mm for welding wire Ø 1.0 and 1.2 mm
- Wire spool adapter 15 kg, Ø 300 mm
- Coolant for torch cooling, 5 litres
- Operating instructions / CE
Technical data ELMAG MIG/MAG, MMA multifunction welding inverter CPTX-I 400 2W
| Material thickness |
1,0 - 30 mm |
| Welding current setting range MIG/MAG |
30 - 400 A |
| Welding voltage setting range |
12 - 38 V |
| Steel / stainless steel wire diameter |
0,8 - 1,2 mm |
| Aluminium wire diameter |
1,0 - 1,2 mm |
| Cored wire diameter |
1,2 mm |
| Duty cycle at max. welding current MIG/MAG |
100/400 % / A |
| Welding current setting range MMA |
30 - 300 A |
| Duty cycle at max. welding current MMA |
60/300 % / A |
| Welding rod reel diameter |
200 / 300 mm |
| Welding rod roll weight |
5/15 kg |
| Earth connection pin / cross-section |
13/95 Ø / mm² |
| Feed drive |
4 rolls |
| Power consumption max |
25,5 A |
| Mains connection / phases |
400 / 3 V / ~ |
| Mains frequency |
50 Hz |
| Mains fuse inert |
32 AT |
| Protection class |
23 S IP |
| Connector plug |
Type CEE 32 A |
| Width x depth x height |
720x1120x1520 mm |
| Weight |
120 kg |
