ELMAG MFB 45 GLH gearbox milling and drilling machine
Product highlights ELMAG MFB 45 GLH gearbox milling and drilling machine
High-speed semi-automatic machine 1,100 / 850 W
Thanks to its robust industrial design, the MFB 45 GLH model is well suited for intensive continuous use. It offers numerous functions for the demanding machine builder: The swivelling milling head and the large dimensioned cross table are equipped with a motorized height adjustment or rapid traverse drive for fast tool or workpiece positioning. The infinitely adjustable cross table drive of the X-axis allows an optimization of the cutting speed and offers highest repeat accuracy. Drilling / milling and thread cutting can be selected as operating modes. With a top speed of 3,200 rpm, the MFG 45 GLH delivers the best drilling and milling results even with small diameters.
Thanks to its robust industrial design, the MFB 45 GLH model is well suited for intensive continuous use. It offers numerous functions for the demanding machine builder: The swivelling milling head and the large dimensioned cross table are equipped with a motorized height adjustment or rapid traverse drive for fast tool or workpiece positioning. The infinitely adjustable cross table drive of the X-axis allows an optimization of the cutting speed and offers highest repeat accuracy. Drilling / milling and thread cutting can be selected as operating modes. With a top speed of 3,200 rpm, the MFG 45 GLH delivers the best drilling and milling results even with small diameters.
Standard equipment ELMAG MFB 45 GLH gearbox milling and drilling machine
- Keyless drill chuck B16, 1 - 16 mm
- Taper mandrel ISO 30 / B 16, IG M12
- Tightening spindle M12
- Tool kit
- Operating instructions / CE
- Taper mandrel ISO 30 / B 16, IG M12
- Tightening spindle M12
- Tool kit
- Operating instructions / CE
Technical facts ELMAG MFB 45 GLH gearbox milling and drilling machine
- X-axis stepless and rapid traverse
- Milling capacity Ø 80 / 32 mm
- Cubic capacity 800 x 240 x 470 mm
- Spindle throat depth 252 mm
- table travel 420 x 180 mm

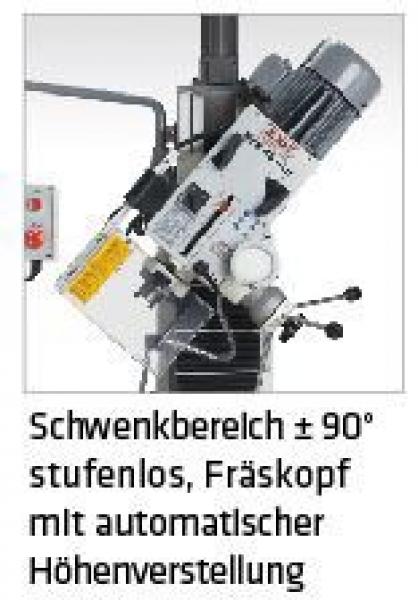

- Swivel milling head +- 90°, with automatic height adjustment
- Motor 2-stage 1,100 W / 850 W, 400 V
- 12 Speeds 75 - 3,200 rpm
- Right and left rotation
- Thread cutting mode
- Precision micro feed unit
- Milling spindle with precision bearing
- Tightening spindle for high safety
- Milling spindle protection cover
- Drilling depth scale and stop
- Smooth-running, precise cross table with T-slots and coolant trough
- Cross table x-axis with infinitely variable feed and rapid traverse
- Integrated coolant system with return flow, tank in machine base
- Emergency stop button / zero voltage release
Technical data ELMAG MFB 45 GLH gearbox milling and drilling machine
- drilling capacity in steel: 45mm
- Thread cutting capacity: M20
- Milling capacity face milling cutter: 80mm
- Milling performance end mill: 32mm
- Spindle mount (turning spindle): ISO 30
- Speed range 1: 75 - 1600 rpm
- Speed range 2: 150 - 3200 rpm
- Speed steps: 12
- quill stroke: 120mm
- milling head stroke: 350mm
- spindle throat: 252mm
- Milling head swivel range: ± 90°
- quill distance table min./max.: 120 - 470mm
- milling table surface: 800 x 240mm
- table travel X x Y: 420 x 180mm
- Feed steps X/Y: X: stepless / Y: -
- Rapid traverse X/Y: X: Yes / Y: -
- Motor power: (2-stage) 1100 / 850W
- Feed drive X/Y: X: 220 W / Y: -W
- Height adjustment Z: Yes / 220W
- Coolant pump: 40W
- Power supply: 400 / 50 - 60V/Hz
- Coolant pump capacity: 0l/min
- Cubature: 800 x 240 x 470mm
- length x width: 1250 x 940mm
- height: 2060mm
- weight: 590kg
Highest quality of ELMAG machines
Benefit from a 2 year ELMAG warranty
Accessories for ELMAG machines on request
