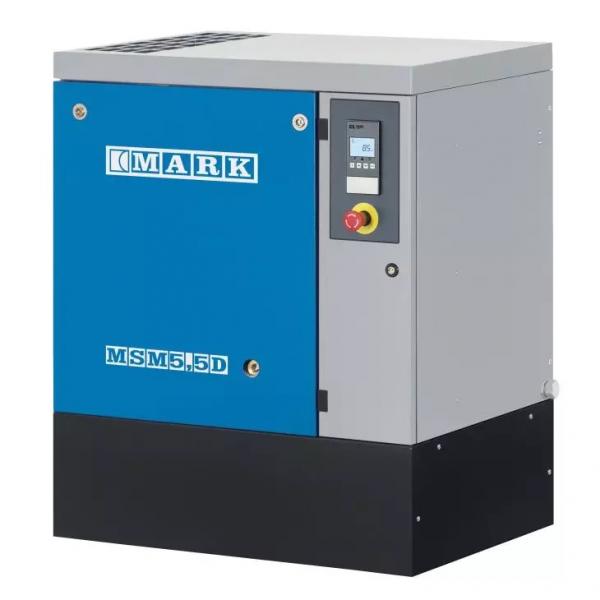

Product highlights ELMAG MARK screw compressor MSM MAXI 5.5 - 10bar with ES4000 Connect
The MSM MAXI models are fully automatic compressed air control centres for distribution networks in trade and industry. Versions with 10 or 13 bar are available. The standard features of all models include: ES 4000 Basic electronic control unit, star-delta starting circuit, efficient cooling, external oil level control, low noise level, operating hours counter and much more.
MSM MAXI base frame models
Particularly suitable for installation near workstations or when expanding existing systems with an existing compressed air tank.

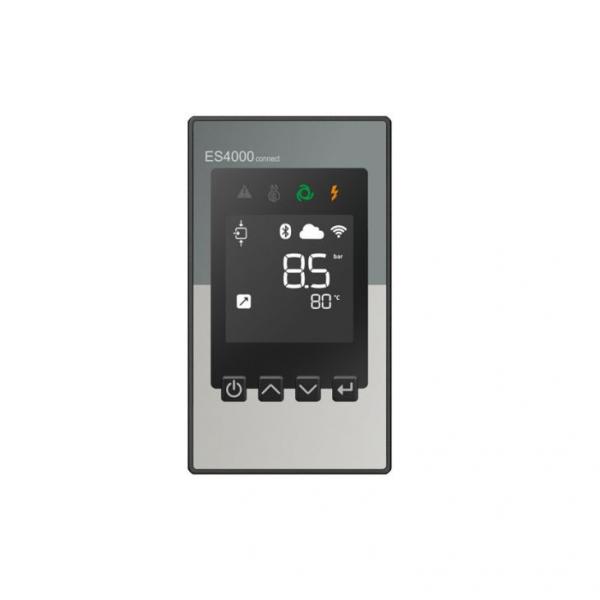

Intelligent monitoring, control and safety
ES4000 Connect offers advanced monitoring and easy configuration for daily tasks and control of operations.
- Icon-based display with pressure and temperature indicators
- Operating hours, utilisation in hours
- Maintenance messages
- Fault alarms
- Quick pressure adjustment directly on the control unit
- Remote start/stop
- Automatic restart after power failure
Technical data ELMAG MARK screw compressor MSM MAXI 5.5 - 10bar with ES4000 Connect
| Effective Delivery Rate |
697 l/min |
| Maximum Operating Pressure |
10 bar |
| Execution |
Base Frame |
| Motor Rating |
5.5 / 7.5 kW / HP |
| Electrical Connection Voltage / Frequency |
400/50 V/Hz |
| Sound Pressure Level (4 m) |
65 dB(A) |
| Air Outlet |
3/4 inch |
| Length |
810 mm |
| Width |
650 mm |
| Height |
980 mm |
| Weight |
156 kg |
