ELMAG MARK screw compressor MSM 2.2 D-270 AD 2000 with ES4000 Connect
NEW
Product highlights ELMAG MARK screw compressor MSM 2.2 D-270 AD 2000 with ES4000 Connect
More compressed air, lower energy costs
Get 15% more compressed air with 12% less energy consumption compared to the previous model. The Mark MSM is the ultimate workshop compressor: powerful, user-friendly and always reliable. Thanks to the screw technology, you get more compressed air and benefit from lower energy costs at the same time.
What's more, you can use the compressor all day long without any cool-down times. Of course, you can customise the MSM to your specifications and preferences. We offer a power range from 2.2 to 7.5 kW, both floor-mounted and container-mounted models, and a range of options for customising your MSM.
MSM D incl. compressed air tank and refrigeration dryer
The all-in-one compressed air system with refrigeration dryer MDX is for applications that require particularly high compressed air quality. It provides condensate-free compressed air, protects consumers, improves the quality of the end product and saves on installation costs. Small footprint of less than 1 m². Pre-filter and fine filter can be added as an option.
Version ‘D’ with refrigeration dryer
The complete compressed air system consists of a screw compressor, tank and refrigeration dryer with environmentally friendly R513A refrigerant, dew point indicator and automatic condensate drain.
Intelligent condensate drain
Advantages:
- Only water, NO compressed air is drained = energy saving
- Low noise, no noise pollution = protection of the environment
Intelligent monitoring, control and safety

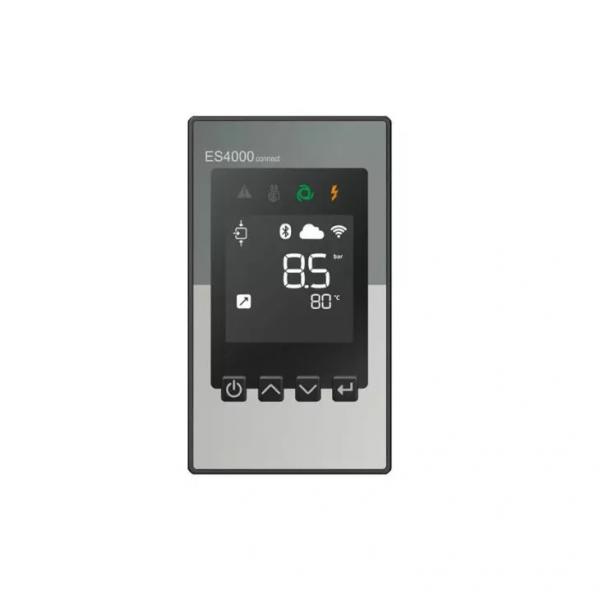

ES4000 Connect offers advanced monitoring and easy configuration for daily tasks and control of operations.
- Icon-based display with pressure and temperature indicators
- Operating hours, utilisation in hours
- Maintenance messages
- Fault alarms
- Quick pressure adjustment directly on the control unit
- Remote start/stop
- Automatic restart after power failure
Get 15% more compressed air with 12% less energy consumption compared to the previous model. The Mark MSM is the ultimate workshop compressor: powerful, user-friendly and always reliable. Thanks to the screw technology, you get more compressed air and benefit from lower energy costs at the same time.
What's more, you can use the compressor all day long without any cool-down times. Of course, you can customise the MSM to your specifications and preferences. We offer a power range from 2.2 to 7.5 kW, both floor-mounted and container-mounted models, and a range of options for customising your MSM.
MSM D incl. compressed air tank and refrigeration dryer
The all-in-one compressed air system with refrigeration dryer MDX is for applications that require particularly high compressed air quality. It provides condensate-free compressed air, protects consumers, improves the quality of the end product and saves on installation costs. Small footprint of less than 1 m². Pre-filter and fine filter can be added as an option.
Version ‘D’ with refrigeration dryer
The complete compressed air system consists of a screw compressor, tank and refrigeration dryer with environmentally friendly R513A refrigerant, dew point indicator and automatic condensate drain.
Intelligent condensate drain
Advantages:
- Only water, NO compressed air is drained = energy saving
- Low noise, no noise pollution = protection of the environment
Intelligent monitoring, control and safety
ES4000 Connect offers advanced monitoring and easy configuration for daily tasks and control of operations.
- Icon-based display with pressure and temperature indicators
- Operating hours, utilisation in hours
- Maintenance messages
- Fault alarms
- Quick pressure adjustment directly on the control unit
- Remote start/stop
- Automatic restart after power failure
Technical data ELMAG MARK screw compressor MSM 2.2 D-270 AD 2000 with ES4000 Connect
Effective Delivery Rate | 294 l/min |
Max. Operating Pressure | 10 bar |
Sound Pressure Level ISO 2151 2004 | 61 dB(A) |
Motor Power | 2.2 / 3 kW / HP |
Electrical Connection Voltage / Frequency | 400/50 V/Hz |
Air Outlet | 1/2 inch |
Length | 1540 mm |
Width | 600 mm |
Height | 1350 mm |
Weight | 205 kg |
