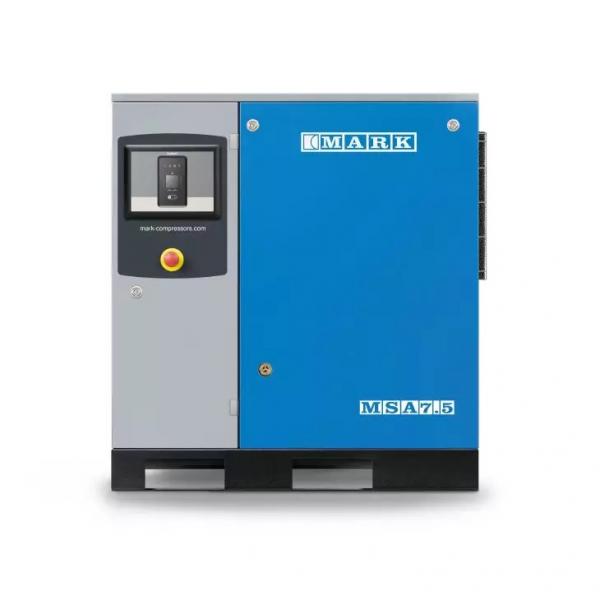

Product highlights ELMAG MARK screw compressor MSA 5.5/13 bar basic model, with ES4000S control unit
MSA series
Customers looking for a reliable compressor with optimum performance that can be installed close to the work area should definitely consider our next-generation MSA compressors. The new MSA series is a hybrid version that combines experience and innovation. Familiar reliability, improved components, a state-of-the-art element and easier installation are the essence of this improved compressor series.
The perfect addition to your workspace
High performance, small footprint. This is a very useful combination in environments where the unit can be installed close to the work area.
Our MSA series consists of a range of compact units that can be fitted with a tank and refrigerant dryer to save additional space without compromising on compressed air quality. Compressed air filters can be added as an option. The new design also includes forklift slots on container-mounted units to make installation even easier.
Low noise levels complete the list of benefits in the workplace. All these features lead to a reduction in installation costs, as no separate room or complex pipework is required to bring the compressed air to the point of use. As an additional benefit, you save further operating costs as there is no pressure drop without pipework.

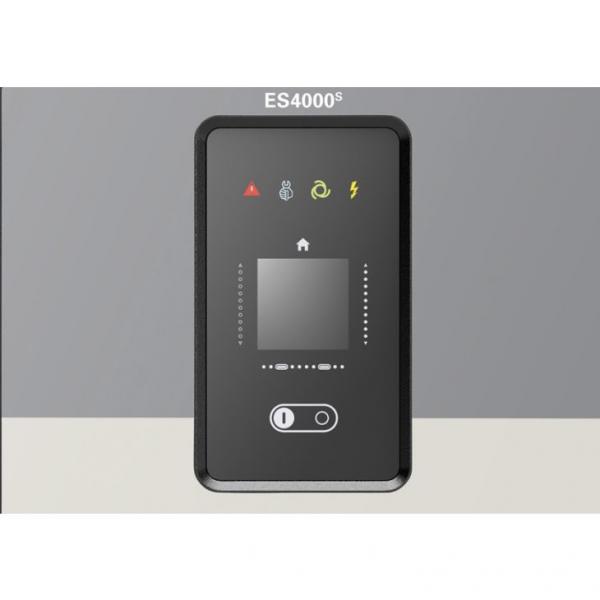

ES4000S
- State-of-the-art 4.3-inch colour touchscreen
- The swipe control informs you if something is wrong with your compressed air installation
- Control, protect and maintain the unit from anywhere, anytime
- Monitor the performance of your compressed air system
Technical facts ELMAG MARK screw compressor MSA 5.5/13 bar basic model, with ES4000S control unit
- New compressor - The volume flow is increased by up to 13 % and energy consumption is reduced by up to 16 % at the same time
- IE3 motor for ultimate efficiency
- Greater cooling capacity thanks to larger air/oil coolers for certain power classes
- A large fan provides intelligent ventilation, improves airflow and reduces the temperature inside the unit
- Maintenance-friendly belt drive
- Easy maintenance and quick access to all service parts
- More robust components for increased reliability and improved energy efficiency
- Superior component design makes it suitable for environments with high ambient temperatures (up to 46 °C)
- Easy to move and transport thanks to the forklift slots installed on all units
Technical data ELMAG MARK screw compressor MSA 5.5/13 bar basic model, with ES4000S control unit
| Effective delivery quantity |
552 l/min |
| Max. Operating pressure |
13 bar |
| Rated motor power |
5,5 / 7,5 kW / hp |
| Electrical connection Voltage / frequency |
400/50 V/Hz |
| Sound pressure level (4 m) |
65 dB(A) |
| Air outlet |
3/4 inch |
| Length |
1000 mm |
| Width |
670 mm |
| Height |
1050 mm |
| Weight |
195 kg |
