ELMAG LRGM 2550-2,5mm Mechanical plate shears

HIGH QUALITY STANDARDS
- Robust and durable design
- High cutting accuracy
- Welded monobloc steel construction with very good vibration damping
- Special steel blades, hardened and precision ground, can be used on both sides

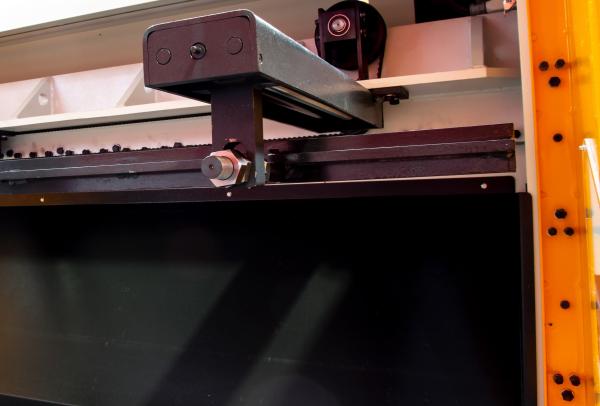

- Precise backgauge with handwheel and measuring scale, adjustment range 0-750 mm
- Parallel guidance of the knives for exact cutting quality
- Manual cutting gap adjustment

CE-SAFETY EQUIPMENT
- Installed safety through cut gap cover
- Rear of machine protected by light curtain
- Emergency stop button on the machine and on the control column

OPTIMAL HANDLING
- Support table with ball rollers for effortless sheet positioning
- Support arms and side stop
- Two operating modes Manual and Automatic

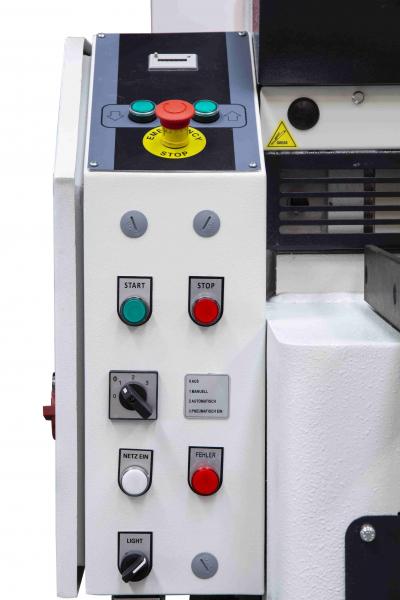

- Clearly arranged control console LRGM with operating buttons
- Mobile control column with foot release for automatic operation

PERFORMANCE DATA LRGM
- cutting capacity up to 2,5 mm material thickness
- Cutting length 2,550 mm - ideally matched to standard sheet metal formats
- Cutting speed 35 strokes per minute - ideal for fast, serial processing
- High drive power 4 kW - sufficient power for continuous operation

STANDARD EQUIPMENT
- Special steel knife with two cutting edges
- Side stop and support arms
- LED illumination of the cutting line
- Manually adjustable backgauge
- CE safety devices
- Control panel LRGM and mechanical stroke counter
- Mobile control column with foot release and emergency stop button
- Operating instructions / CE
