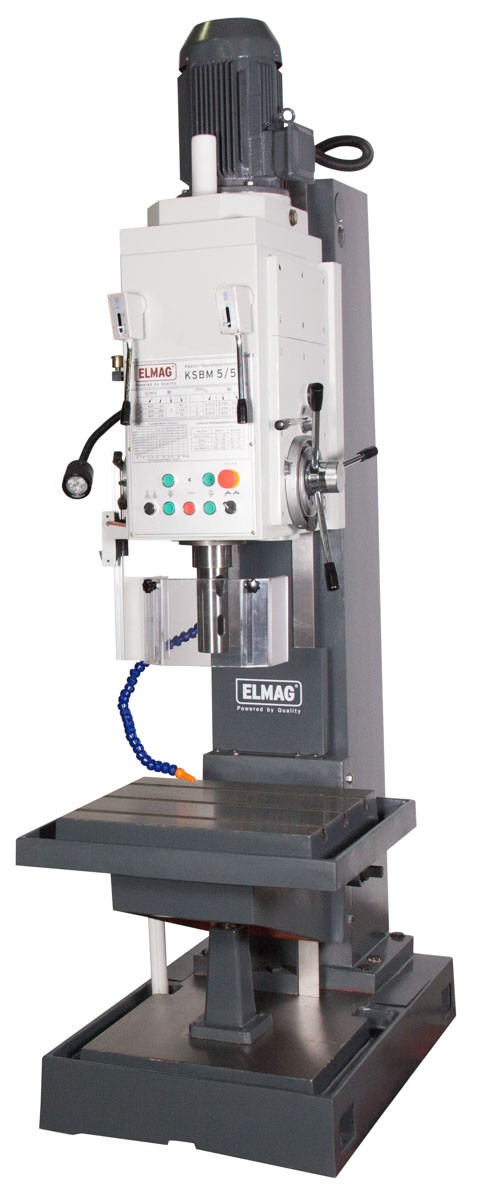

Product highlights ELMAG KSBM 4/40 box column drill
Super-heavy - Professional drilling units from 2,200 to 5,500 W
Drilling with high torque and high feed force, excellent drilling performance from 25 to 80 mm, high precision even under extreme loads: The KSBM models are universal gear-type drilling machines for large requirements. Their extra-heavy grey cast iron construction guarantees stability and extremely quiet running - e.g. for serial machining of castings or welded parts in mechanical engineering and steel construction companies. Thanks to a heavy-duty precision gearbox and the robust drilling table which can be fixed without play, KSBM models are also well suited for reaming operations.
The largely automated threading unit of the KSBM with adjustable, automatic reversal of the direction of rotation - from KSBM 5/63 on with particularly efficient rapid feed and return. With 9 or 12 speeds and 9 or 6 feed stages, the KSBM offers sufficient scope for a cutting speed that is always right for the job.
Standard equipment ELMAG KSBM 4/40 box column drill
- Keyless drill chuck B 16, 1- 16 mm
- Taper mandrel MK 4 / B 16
- Reducing sleeve MK 4 / MK 2
- Tool set with ejector wedge
- Operating instructions / CE
Technical facts ELMAG KSBM 4/40 box column drill
- Particularly torsion-resistant, heavy-duty box column, drilling table and base plate construction
- Heavily ribbed, fine-grained grey cast iron
- Very smooth running even under heavy duty
- Drilling capacity Ø 40 mm
- Large cubage
- Spindle throat depth 335 mm
- Durable quality gearbox, 12 speeds
- Super powerful drive motor: 3,000 W, 400 V

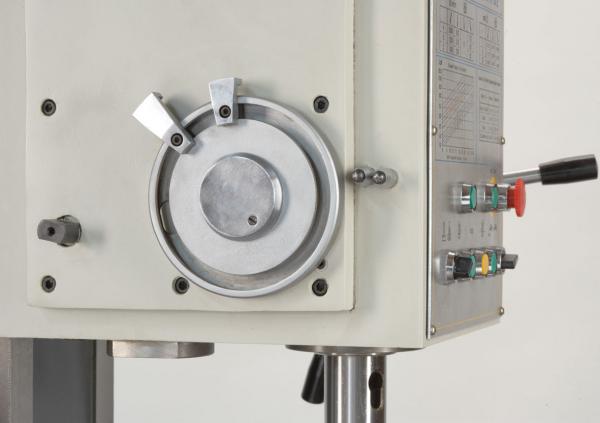

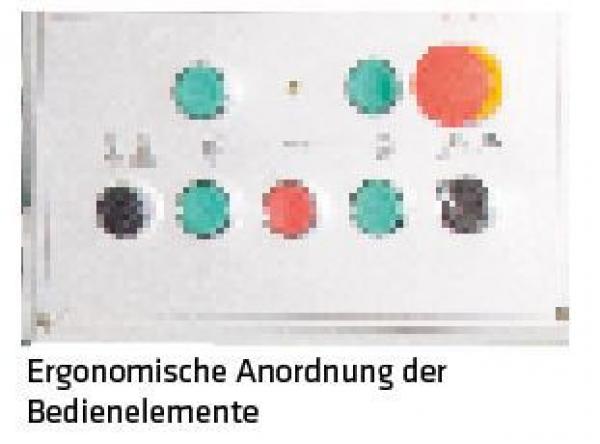

- Simple speed and feed adjustment by means of adjusting lever
- Drilling spindle with precision bearing, high concentricity
- High torque at the drill spindle 350 Nm
- Right and left rotation
- Thread cutting device with automatic reversal of the direction of rotation
- Automatic sleeve feed, 9-step
- High feed force 16.000 N
- Drilling depth scale and stop
- Height adjustable drilling table with T-slots and coolant trough
- LED drilling table lighting
- Torsion-resistant, ground dovetail guides
- Integrated coolant system with return flow, tank in machine base
- Emergency stop / zero voltage release
Technical data ELMAG KSBM 4/40 box column drill
- drilling capacity in steel: 40mm
- Thread cutting capacity: M 30
- Spindle mount (turning spindle): MK 4
- Speed steps: 12

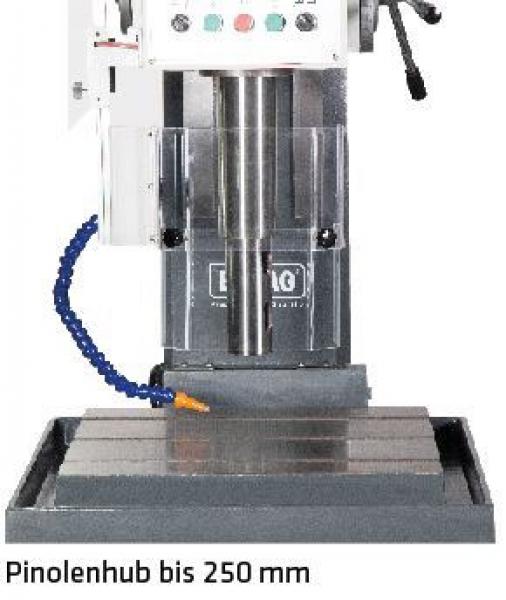

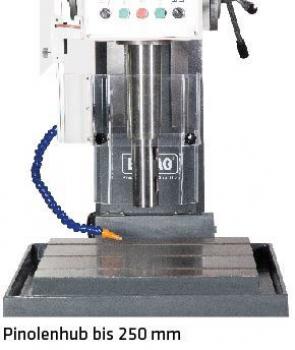

- quill stroke: 250mm
- quill feed steps: 9
- torque: 350N-m
- drill head stroke: 200mm
- drilling table stroke: 315mm
- spindle throat depth: 335mm
- quill distance table min./max.: 235 - 750mm
- Drilling table surface: 560 x 480mm
- drilling table height: 0mm
- Motor power: (2-stage) 3000W
- Fast forward and backward feed: -W
- jack screw drive: 0W
- Power supply: 400 / 50 - 60V/Hz
- Feed force: 16000N
- automatic fast forward and backward feed: -

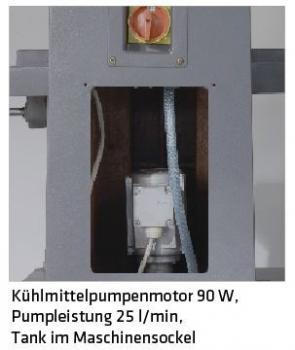

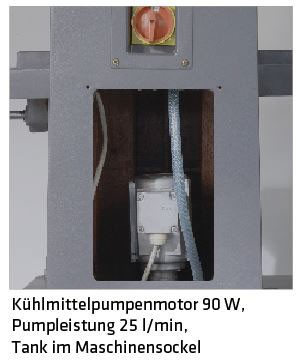

- Coolant pump: 90W
- Coolant pump capacity: 25l/min
- Cubature: 560 x 480 x 750mm
- length x width: 1040 x 905mm
- height (total): 2530mm
- weight: 1250kg
