ELMAG KBM 25 SN V-belt column drill SET action
ELMAG KBM 25 SN V-belt column drill SET action
ELMAG KBM 25 SN V-belt column drill SET action

ELMAG KBM 25 SN V-belt column drill SET action

Product No.:
16033
2-4 days 2-4 days (abroad may vary)
  • Spare parts supply
  • Top quality
  • Happy customers
  • Secure payment
  • Authorized dealers

Delivery: If you need the item very urgently, please ask in advance for the exact delivery time.

Weight:
86 kg per piece
1.125,90 EUR

19% VAT excl. Shipping costs

Ask about product
Description

Product Highlights ELMAG KBM 25 SN V-belt column drill SET action​

SUPER SLIM PROFESSIONAL COLUMN DRILL 1,100 W

With a maximum quill distance to the drilling table of 715 mm, the KBM 25 SN enables the machining of high workpieces and finished welded components. Clamping grooves in the base plate extend the scope for high shaped parts. The machine is therefore well suited for repairs in agriculture and for frame construction in metal construction companies. It stands out for its solid construction and good standard equipment.

  • HOW THE PROFESSIONALS DRILL

    1. drill selection: For metals: Use metal drills made of high performance high-speed steel (HSS). Tungsten carbide or stainless steel: metal drills with titanium coating or made of a cobalt alloy.

    2. center-punching: Mark the drilling location by scribing with a scribing needle. Apply a hardened centre punch pin and mark the drilling point with a short hammer blow - this prevents the drill from slipping. For HSS drills with cross-ground surface, the center-punching can be omitted. For large drill diameters, pre-drill with a smaller drill bit.

    3rd speed: To protect the drill bit, drill hard metal at low speed and with low pressure. For softer metals use higher speed. Reduce pressure before breakthrough.

    4. cooling: Cool the drill bit. For long drillings, lift the drill several times and supply coolant, if necessary, take breaks in drilling.

Technical facts ELMAG KBM 25 SN V-belt column drill SET action​

Standard equipment:
- Keyless drill chuck B 16, 1 - 16 mm
- Taper mandrel MK 3 / B 16
- Drift wedge
- Tool kit
- Operating instructions / CE

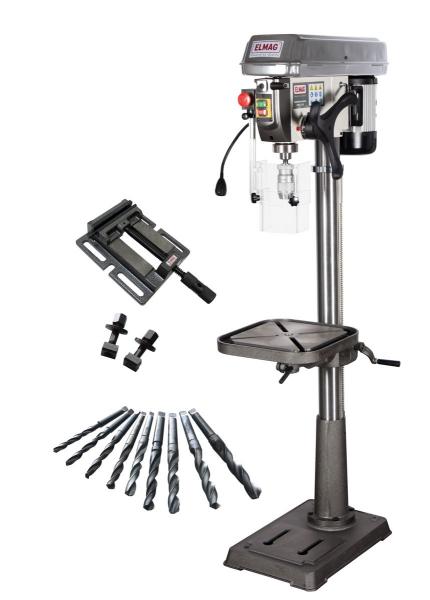

Set equipment:
- Standard equipment
- Machine vice 5' / 120 mm
- 2 clamping screws 16 mm
- HSS drill cartridge 14.5 -30 mm 9-piece

Technical data ELMAG KBM 25 SN V-belt column drill SET action​

Drilling capacity in steel
25 mm
Spindle holder (turning spindle)
MK 3
Speed range
100 - 2,000 rpm
Speed stages
16
Sleeve stroke
80 mm
Column diameter
80 mm
T-slots, width
16 mm
Drilling table stroke
655 mm
Spindle throat
213 mm
Drilling table tiltable
± 45°
Drilling table rotatable
± 180°
quill distance table min./max.
60 - 715 mm
Drilling table surface
350 x 335 mm
Engine power
1,100 W
Network connection
400 / 50 - 60 V/Hz
Cubature
350 x 355 x 715 mm
Base plate area (lxw)
270 x 480 mm
Height (total)
1,630 mm
Weight
86 kg
Highest quality of ELMAG machines.
Benefit from a 2 year ELMAG warranty

Accessories for ELMAG machines on request
