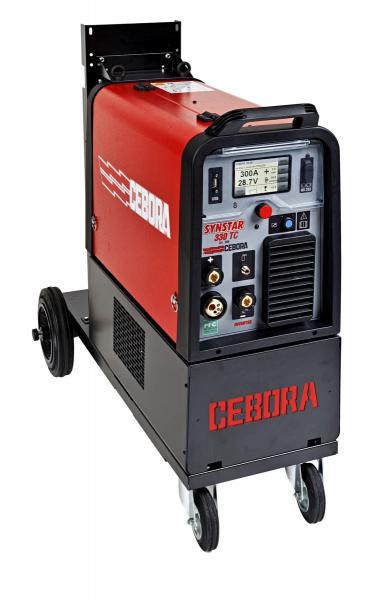

Product Highlights ELMAG impact multifunction welding system SYNSTAR 330 TC, art 386
SYNSTAR 330 TC & 330 TS SYNERGIC
The new SYNSTAR 330 TC and TS are three-phase multi-process power sources with inverter technology for MIG, TIG and MMA welding including 4-roll wire feeder from Cebora (Ø 30mm). The SYNSTAR models offer functions including dual value circuit (MIG Short process) and pulse and double pulse operation, as well as more than 70 welding programs for wire diameters 0.8/0.9/1.0/1.2mm. Synergetic programs for pulse welding of stainless steel are also provided, which are optimized for thin metal sheets. The TC model is available as a compact unit and the TS version as a 2-part unit.
Two different types of hose package can be used with this power source:
- The air-cooled orig. BINZEL hose package MB EVO 36
- The water-cooled orig. BINZEL hose package MB EVO 501
LCD TOUCH display
The LCD TOUCH display allows fast and intuitive selection of process, wire type, gas type, current, thickness, voltage and wire feed speed. The power source offers numerous functions that can be set on the TOUCH display, such as: arc length, short arc or pulse welding, 2-stroke or 4-stroke operation, spot welding time, pause time, throttle effect, push-pull force, burnback, soft start, gas pre-flow and gas post-flow. If required, it is also possible to equip it with a cooling unit (art. 1681). This particularly versatile power source is suitable for numerous applications, especially in medium-sized steel structures, and is characterised by its low current consumption (PFC). Complies with the EN 61000-3-12 standard.
Standard configuration
- SYNSTAR 330 TC
- Earth terminal with 3.5 m earth cable 50 mm²
- Welding cable plug, Ø 13 mm, 35/50/70 mm²
- Feed ring Ø 30 mm for welding wire Ø 0.6-0.8 and 1.0-1.2 mm f. Fe/CrNi/CuSi
- Operating instructions / CE
Possible applications
- Mechanical engineering
- Plant construction
- Container construction
- Steel construction
- Metalworking shops
- Forging
- Agriculture
Materials
- Steel
- CrNi
- Aluminium
- MIG brazing
- Cored wire
Technical data ELMAG impact multifunction welding system SYNSTAR 330 TC, art 386
| Material thickness |
0,8 - 12 mm |
| steel / stainless steel wire diameter |
0,8 - 1,2 mm |
| welding voltage adjustment |
14,5 - 30,5 V |
| aluminium wire diameter |
1,0 - 1,2 mm |
| welding wire roll diameter |
200 / 300 mm |
| MIG-soldering diameter |
0,8 - 1,2 mm |
| welding wire roll weight |
5/15 kg |
| duty cycle |
270 A |
| welding current setting |
15 - 330 A |
| ground connection plug / cross-section |
13 / 50 O / mm2 |
| wire feed speed |
22 m/min |
| welding power source (10 min at 40 °C) at welding current |
40 / 330 % / A |
| Max. power consumption |
12,4 kVA |
| voltage / phases |
400 / 3 V / ~ |
| Mains frequency |
50 Hz |
| anti-surge fuse |
16 AT |
| Degree of protection (IP) |
23 S |
| feed drive |
4 Rollers |
| connector |
CEE 16 A |
| Width |
510 mm |
| Depth |
1022 mm |
| Height |
960 mm |
| Weight |
72 kg |
