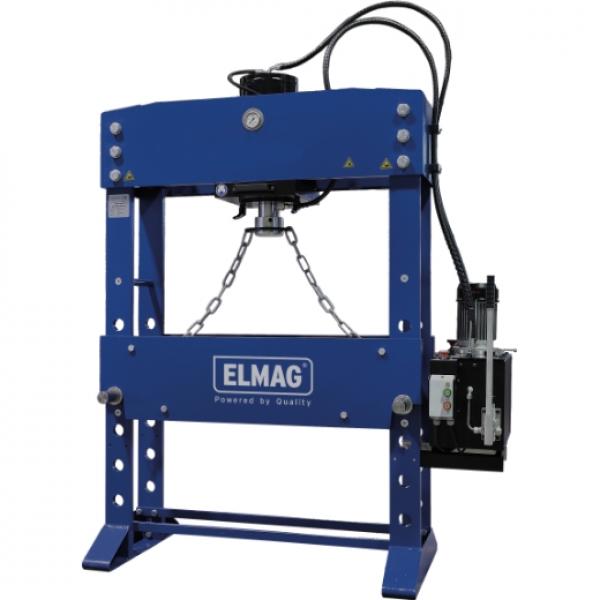

Standard features ELMAG Hydraulic workshop press PREMIUM WPMEH 160/2-K
- Overload safety valve
- Compression pressure gauge
- On/off control valve
- Cylinder piston, chrome-plated
- Press table with locking pin
- Operating instructions/CE
Technical data ELMAG Hydraulic workshop press PREMIUM WPMEH 160/2-K
| press power max. |
160 t |
| electorhydraulic drive |
Yes |
| two drive speeds |
Yes |
| hydraulic cylinder laterally adjustable |
Yes |
| manuel handpump |
Yes |
| press table chain (height adjustment) |
Yes |
| oil flow step 1/2 |
7.1 / 27.6 l/min |
| piston speed step 1/2 |
7.48 / 2.4 mm/s |
| Return travel speed |
9.35 mm/s |
| motor power |
3000 W |
| voltage |
400/50 V/Hz |
| machine height |
2200 mm |
| machine length without pump |
1410 mm |
| machine width |
825 mm |
| inlet length |
1100 mm |
| beam width |
380 mm |
| inlet height max. |
930 mm |
| machine length with pump |
1725 mm |
| machinewidth with pump |
935 mm |
| Piston stroke |
400 mm |
| Weight |
1195 kg |
