ELMAG Hydraulic 3-roller round bending machine AHK 2600x10,0mm

Product No.:
83194
on request on request (abroad may vary)
  • Spare parts supply
  • Top quality
  • Happy customers
  • Secure payment
  • Authorized dealers

Delivery: If you need the item very urgently, please ask in advance for the exact delivery time.

Weight:
5000 kg per piece
Price on request
Ask about product
Description

Technical facts ELMAG AHK 2600x10.0mm Hydraulic 3-roll round bending machine:

  • Bending capacity data
  • Working lengths for standard sheet formats, max. 2,100 to 4,100 mm
  • Sheet thickness models - 1.0 to 10.0 mm (pre-bending max.) - 1.0 to 13.0 mm (bending max.)
  • Smallest possible rolling diameter570 mm
Standard equipment
  • Induction-hardened steel rollers
  • Hydraulically driven rollers

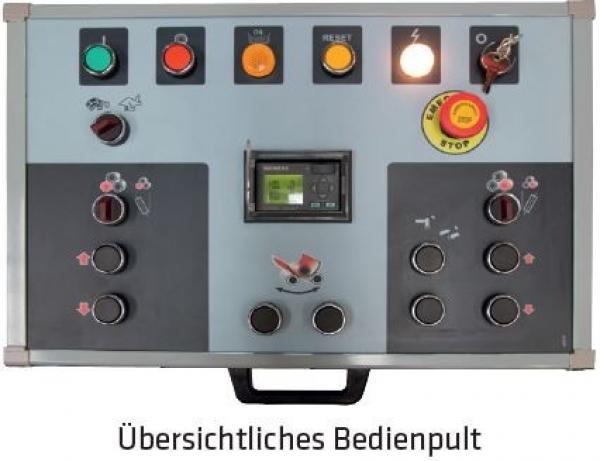

  • Control panel with digital display
  • Operating instructions / CE
Special accessories
  • Infinitely variable speed
  • Side and centre supports for large sheet diameters
  • Material feed table
  • Oil cooling system
  • Extended rollers
  • Profile rollers

Technical data ELMAG AHK 2600x10.0mm Hydraulic 3-roll round bending machine:

  • Working length: 2600mm
  • Top roller diameter: 230mm
  • Side roller diameter: 210mm
  • Motor power: 7500W
  • Mains connection: 400 / 50-60V/Hz
  • Operating column forward / return: Yes
  • Quality steel rollers: 3No.

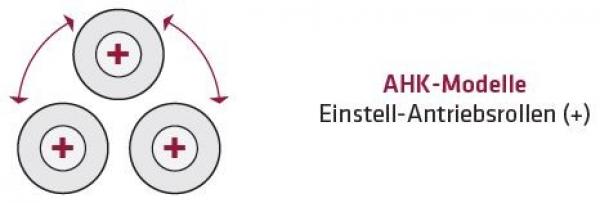

  • Drive rollers (+): 3No.
  • Cone bending device: Yes
  • Length: 4530mm
  • Width: 1370mm
  • Height: 1275mm
  • Weight: 5000kg

Highest quality machines from ELMAG
Benefit from a 2-year ELMAG guarantee

Accessories for ELMAG machines on request
