ELMAG HSTB 23 Premium high-speed bench drill

Product No.:
81040
on request on request (abroad may vary)
  • Spare parts supply
  • Top quality
  • Happy customers
  • Secure payment
  • Authorized dealers

Delivery: If you need the item very urgently, please ask in advance for the exact delivery time.

Weight:
105 kg per piece
Price on request
Ask about product
Description

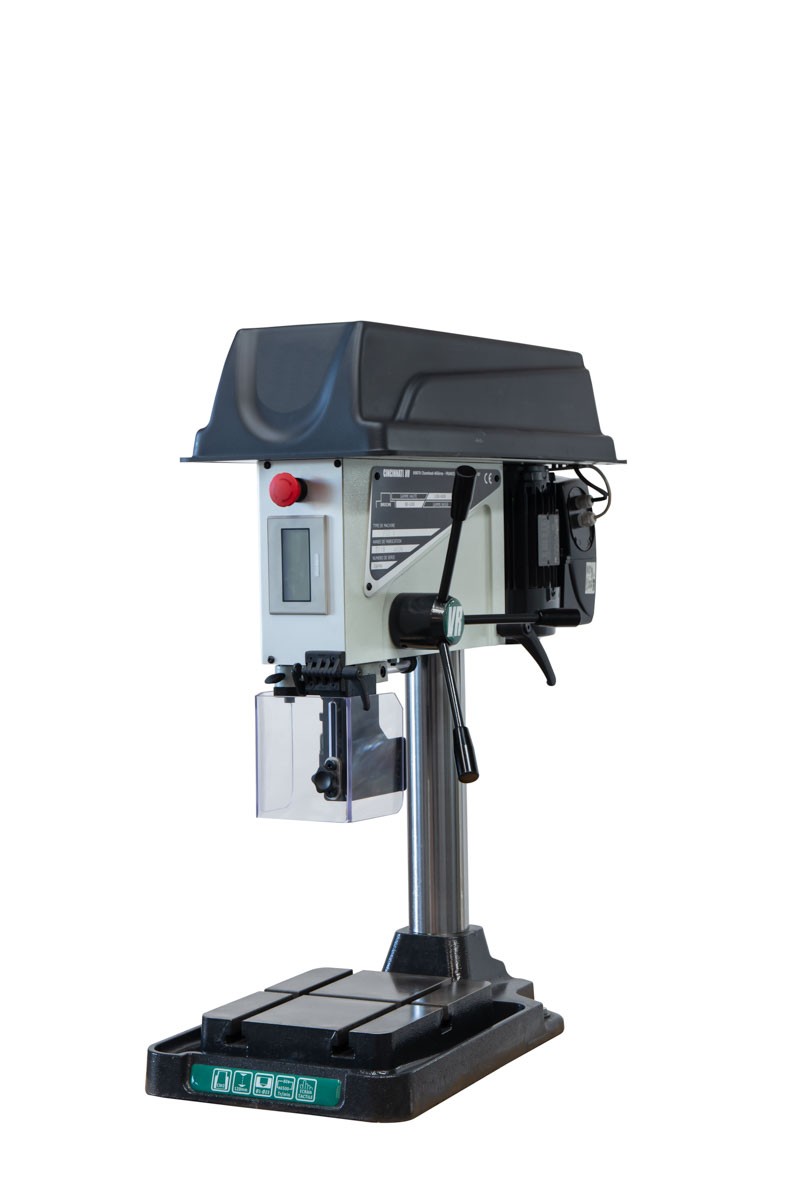

Product Highlights ELMAG HSTB 23 Premium high-speed bench drill​

  • ELMAG PREMIUM HIGHSPEED-TISCHBOHRMASCHINE HSTB 23 HIGHSPEED FÜR DEN PROFI

    The PREMIUM class of ELMAG drilling machines inspires machine experts.

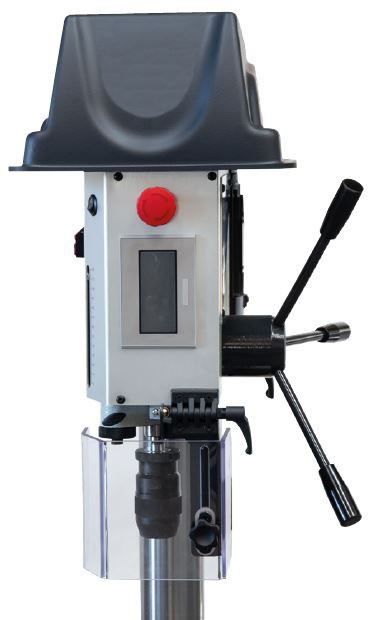

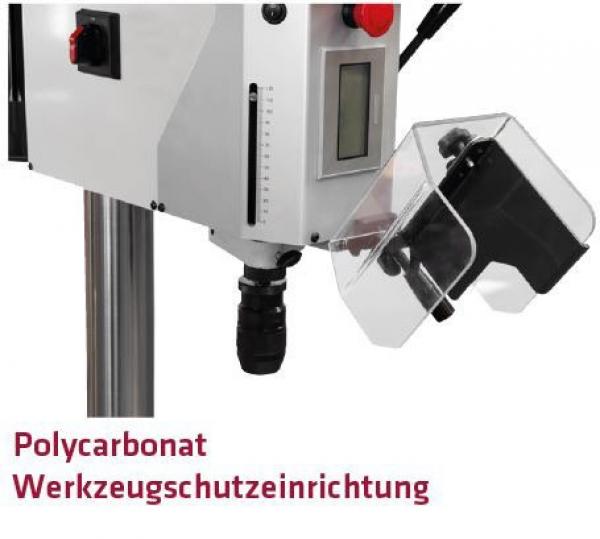

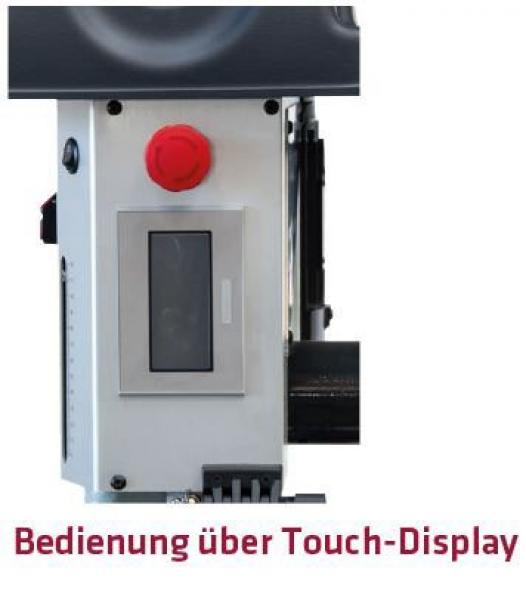

    The new bench drill HSTB 23 combines state-of-the-art drive and drilling technology. It has a digital operating display with touch screen and offers the user extended functions such as speed ranges and thread cutting mode. The "auto-calculation" mode can calculate the rotational speed of the spindle depending on the drilling to be performed. It allows the operator to adjust the speed of the spindle sleeve depending on the diameter. The drilling head can be adjusted in height by means of an internal crank handle. All HSTB series drills have a tool guard made of transparent polycarbonate to protect the user from chip ejections and from splashes of cutting fluids. It also allows the cutting tool to be physically isolated from the operator to prevent injury.

  • STANDARD EQUIPMENT

    - Keyless drill chuck B 16, 1 - 16 mm
    - Taper mandrel MK 4 / B 16
    - Reducing sleeve MK 4 / MK 3
    - Reducing sleeve MK 3 / MK 2
    - Reducing sleeve MK 3 / MK 1
    - Drift wedge
    - Tool kit
    - Operating instructions / CE

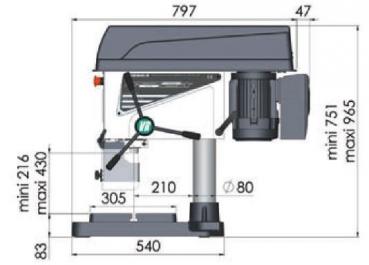

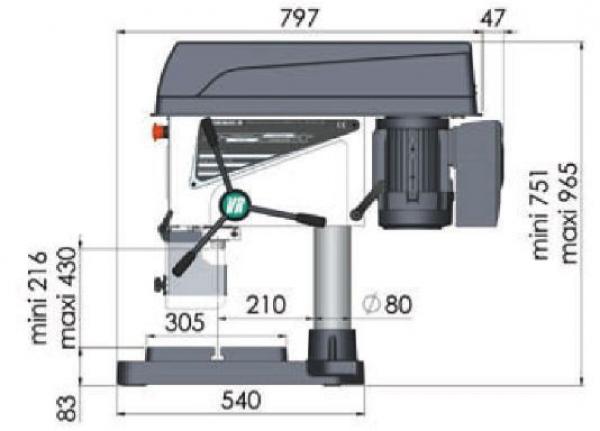

Technical data ELMAG HSTB 23 Premium high-speed bench drill​

Drilling capacity in steel
23 mm
Thread cutting performance
M14
Spindle holder (turning spindle)
MK 2
Sleeve stroke
120 mm
Column diameter
80 mm
T-slots, width
14 mm
Spindle throat
210 mm
Pinole spacing base
430 mm
Drilling table surface
250 x 305 mm
Engine power
900 W
Network connection
400/50-60 V/Hz
Cubature
250x305x360 mm
Base plate area (lxw)
540x340 mm
Height (total)
965 mm
Weight
105 kg

Highest quality of ELMAG machines
Benefit from a 2-year warranty from ELMAG

Accessories for ELMAG machines on request
