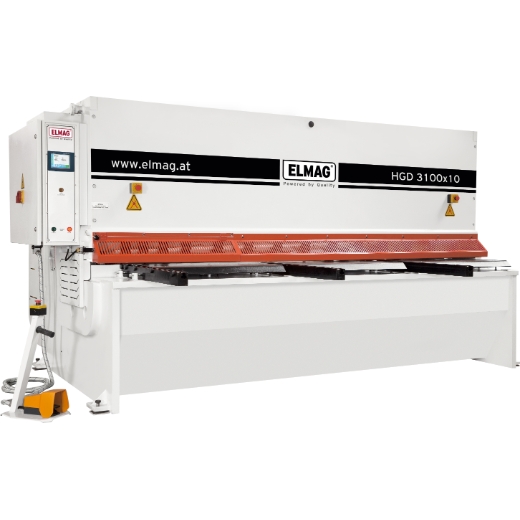

Product highlights ELMAG HGD 3100x6mm hydraulic guillotine shears
Heavy duty hydraulic swing cut shears
The proven, hydraulic swing cut shears HGD were developed for the precise processing of heavy plates, but are also optimal for the suitable for thin sheets. They cover the essential requirements of mechanical engineering and steel construction companies. Only high-quality components and high-strength special materials are used in the production of HGD. They are therefore suitable for the heaviest loads in industrial production, have a long service life and offer years of trouble-free operation
The machine body consists of a heavy, tension-free Monobloc steel frame. It withstands high loads and retains its stiffness even at maximum machine capacity - prerequisite for a very good cut quality. The particularly strong, non-twisting cutter bar allows Operation with flat cutting angle - the twisting of narrow sheet metal sections is reduced to minimum values. High-alloy Special steel knives from German quality production offer a light, clean cut. HGD swing-cut shears are equipped with an automatic cut-Gap and stroke adjustment upgradeable (CNC HGD, 999 cutting programs). Further special accessories available for function extension.
Standard equipment
- upper and lower blade also for stainless steel processing
- Hydraulic cutting gap adjustment
- upper blade with two cutting edges, special steel hardened
- lower blade with four cutting edges, special steel hardened
- Cutting gap adjustment device
- NC-controlled backgauge with ball screw
- Section line lighting
- Automatic hold-down system
- CE safety devices
- Support arm with ruler and side stops
- Support table with ball rollers
- Control console HGD
- NC-control ELGO P 9521
- Mobile control column with foot release and emergency stop button

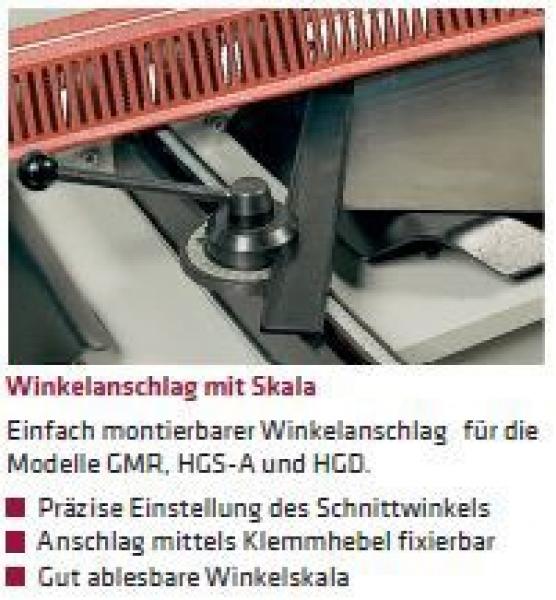

- Operating Instructions / CE|HGD Optional accessories - Angle stop with scale

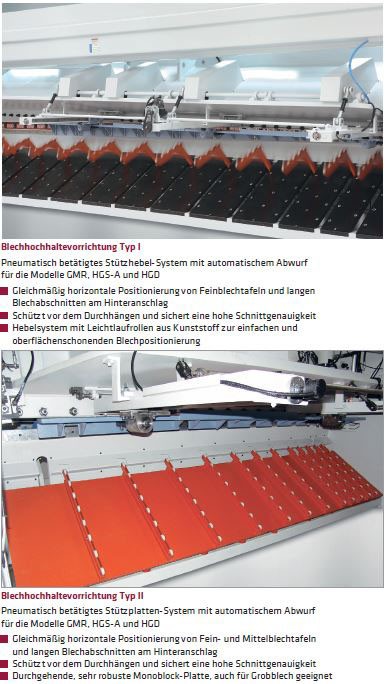

- Pneumatic sheet holding device
- Support arm length up to three meters, with ruler
- Laser cutting line display
- Finger protection light curtain

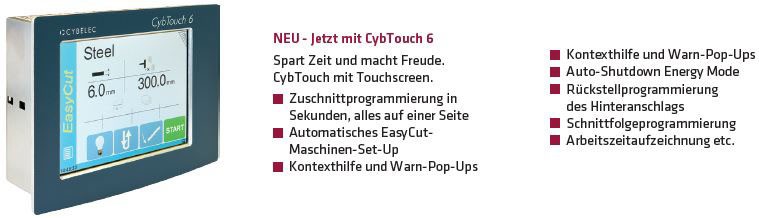

- CNC HGD with control CYBELEC DNC 61 G
- Special knife for stainless steel
Technical facts ELMAG HGD 3100x6mm hydraulic guillotine shears
- Performance data HGD
- Cutting capacity models up to 20 mm material thickness
- cutting length up to 3.100 or 4.100 mm
- Cutting speed depending on model 8 - 16 strokes per minute
- High drive power, depending on the model from 11 to 37 kW
- High quality standards
- Robust industrial models from the latest production
- High cutting accuracy
- Welded, very stable and stress-free monobloc steel construction with excellent vibration damping
- S275 material with very high tensile strength
- High quality BOSCH-REXROTH or HOERBIGER hydraulic system
- Low noise ATOS hydraulic pumps with high pressure performance
- Powerful hydraulic cylinders honed and chrome-plated
- upper blade with two cutting edges, special steel hardened
- lower blade with four cutting edges, special steel hardened
- Central kerf adjustment for quality cuts of different material thicknesses and types

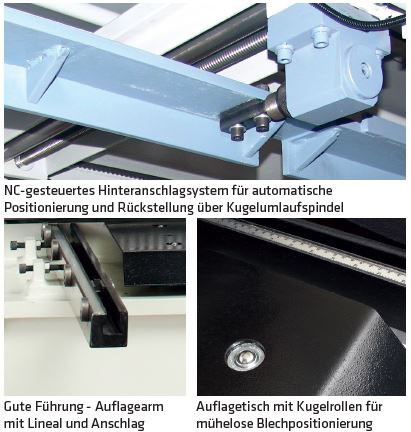

- NC-controlled, motorised, precisely adjustable backgauge with ball screw
- High adjustment speed 110 mm
- -s, adjustment range 1,000 mm
- Backgauge with automatic return
- Throat 350 mm for large special formats
- Section line lighting
- Automatic hold-down system with high holding force for support and tilt resistance during the cutting phase
- CE safety devices
- Installed safety through cut gap cover
- Light barrier at the rear of the machine
- Emergency stop button on the machine and on the control column
Technical data ELMAG HGD 3100x6mm Hydraulic plate shears
- cutting length: 3100mm
- cutting capacity 42 kg/mm²: 6mm
- cutting capacity 70 kg/mm²: 4mm
- Number of strokes: 16min_¹
- Holder: 14Anz.
- Hold-down pressure: 12t
- Main drive Motor power: 11kW
- Backgauge adjustment range: 1000mm
- Adjustment speed: 110mm/s
- length: 3925mm
- width: 2900mm
- height: 2100mm
- Weight: 7800kg
Highest quality of ELMAG machines
Benefit from a 2 year ELMAG warranty
Accessories for ELMAG machines on request
